Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Suzuki
>>
2002
>>
Esteem GL Sedan L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
System Diagram
System Diagram

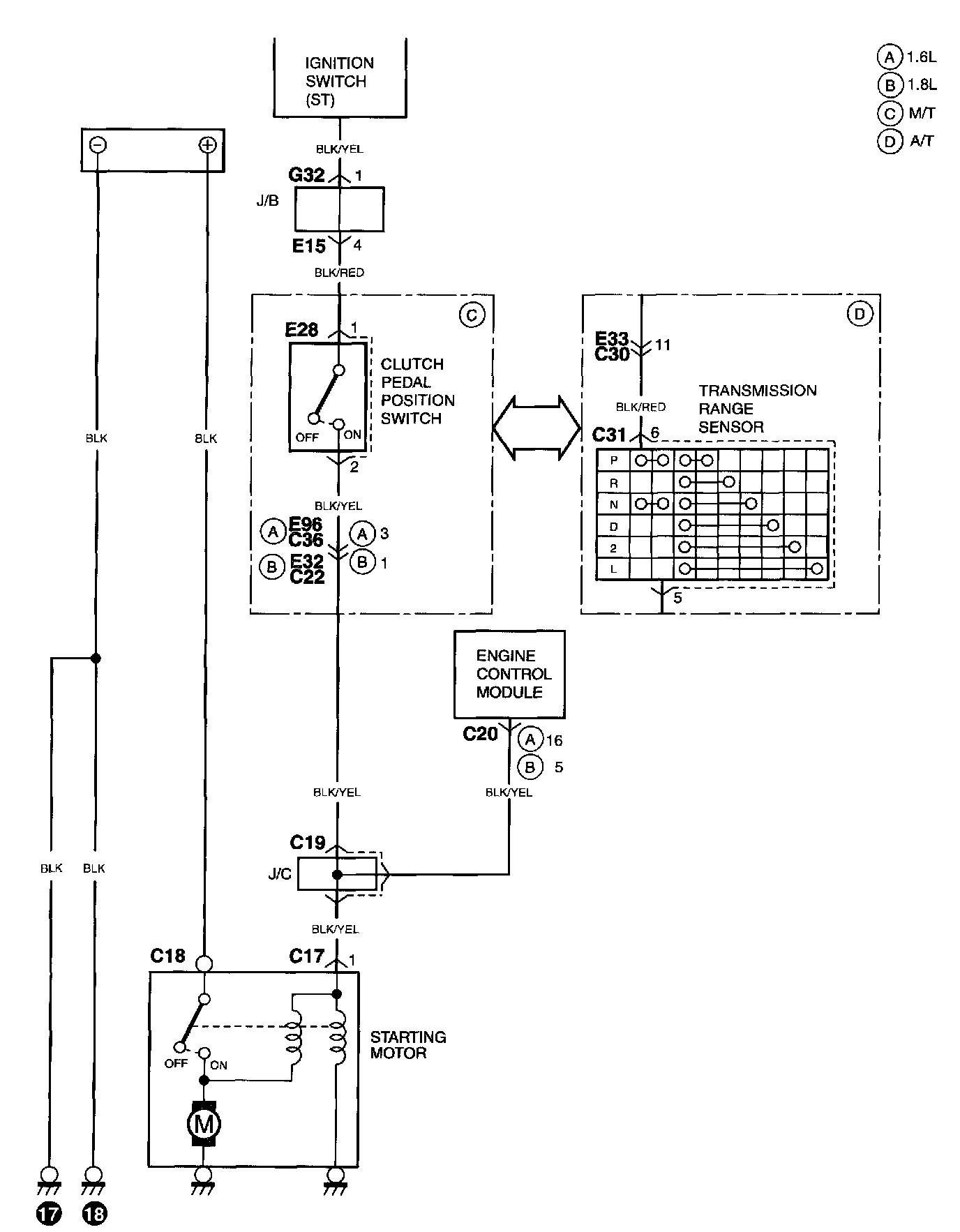

Cranking System Circuit Diagram:
