Heating and Air Conditioning
>>
Heater Core Case
Heater Core Case

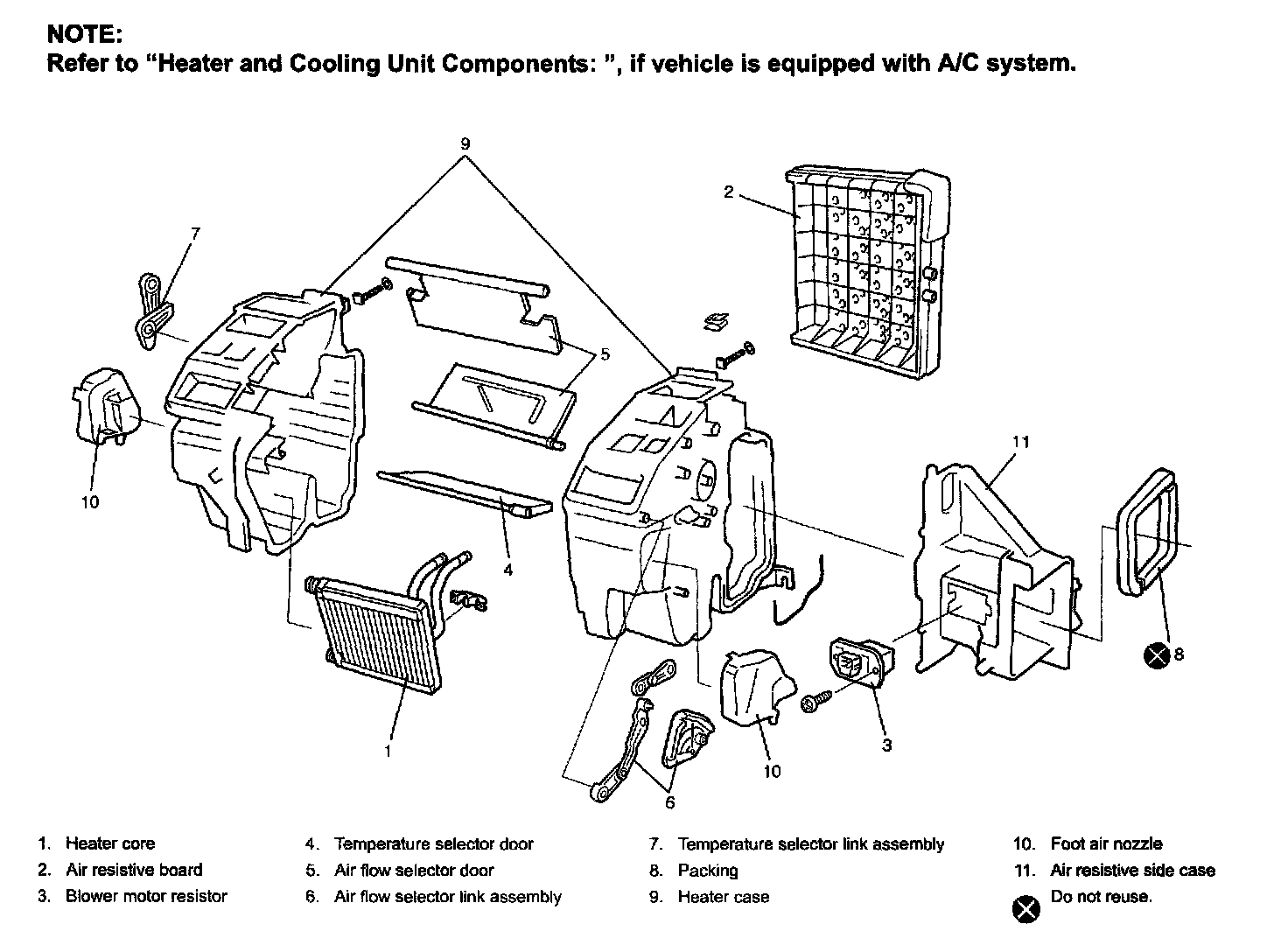

Heater Unit Components:

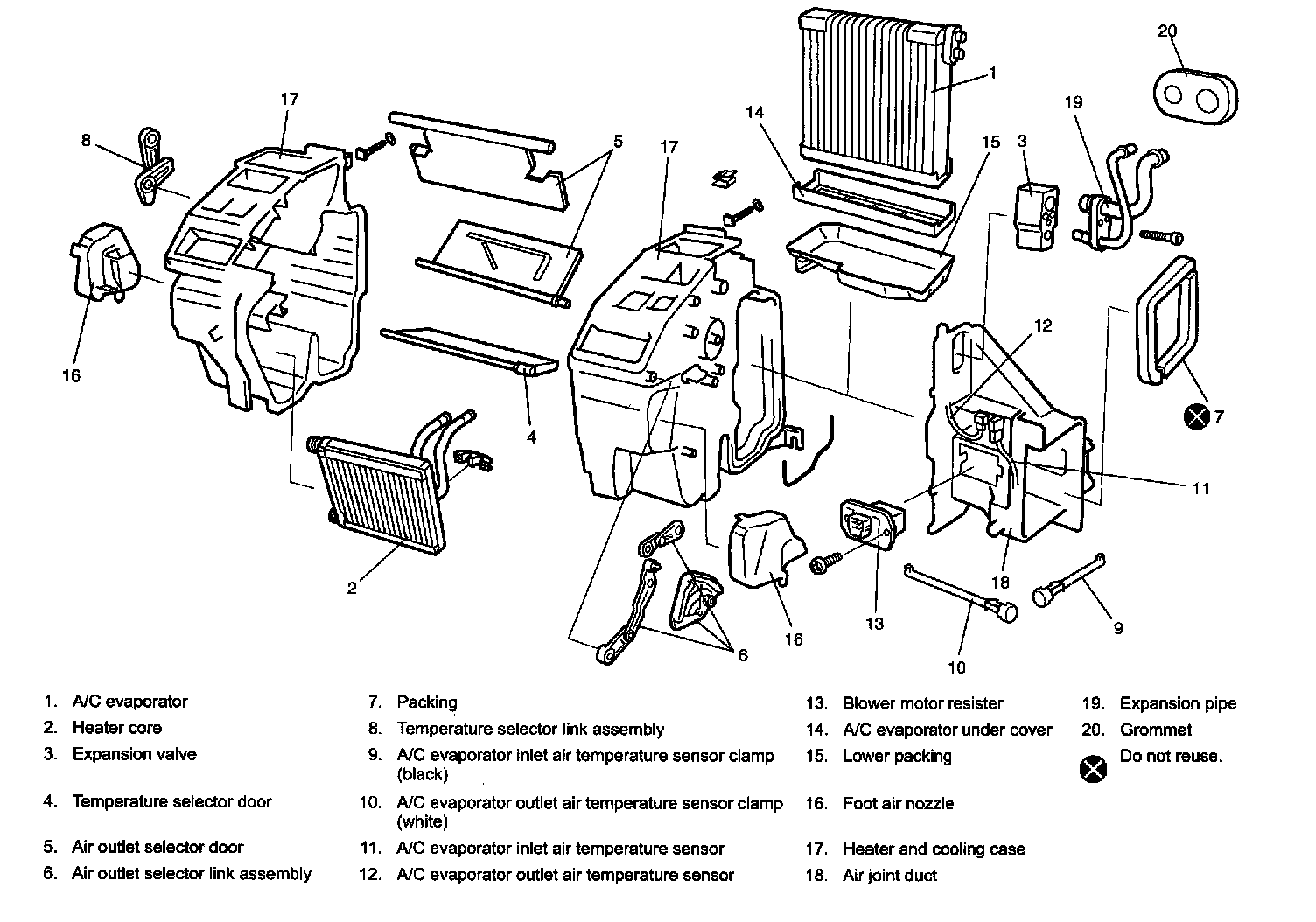

Heater And Cooling Unit Components:
