Rear Seat Belt

WARNING: Be sure to read SERVICE PRECAUTIONS before starting to work and observe every precaution during work.




REMOVAL

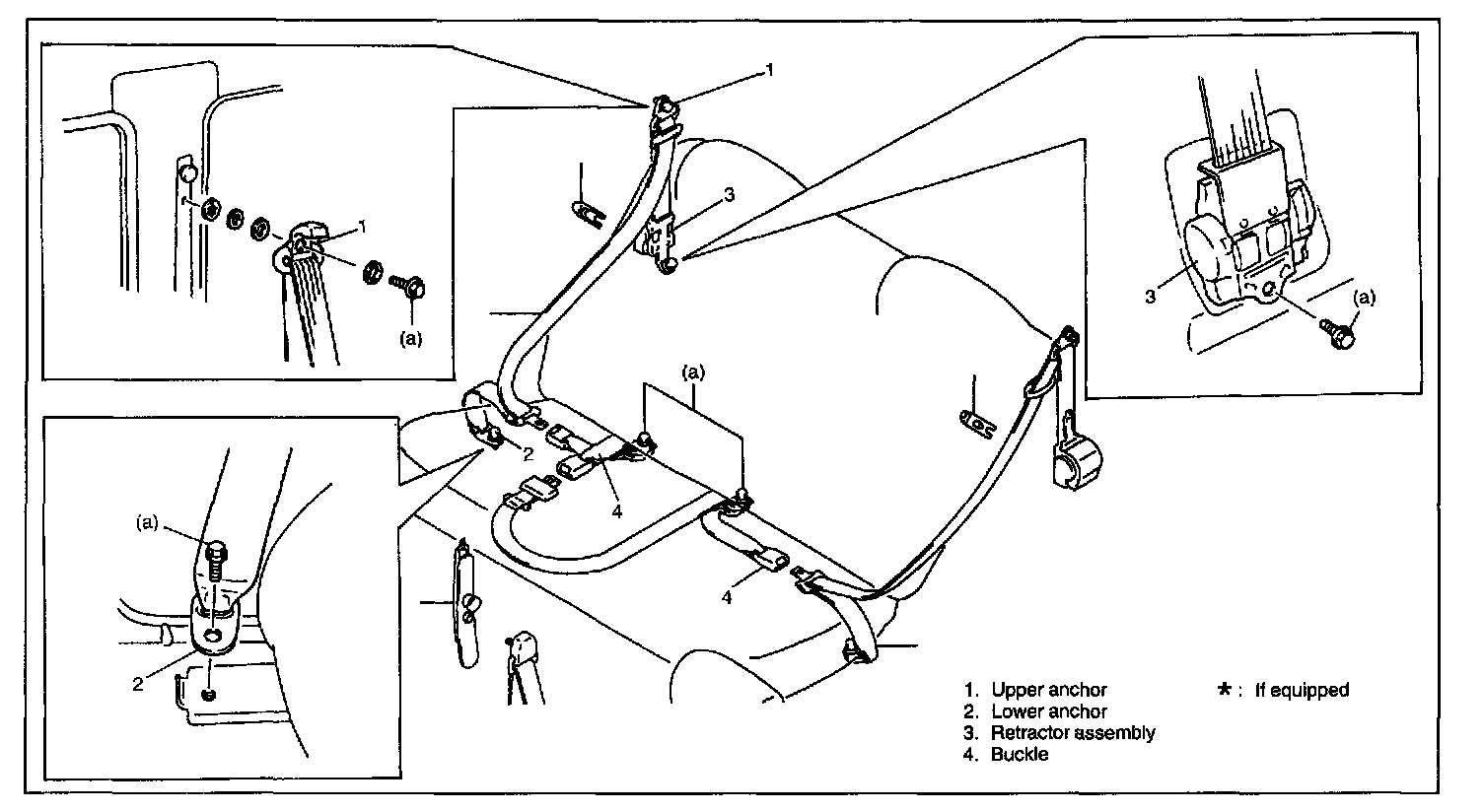

Refer to the figure to remove rear seat belts.

INSTALLATION
Install the rear seat belt observing the same precautions as when installing front seat belt. Refer to FRONT SEAT BELT INSTALLATION

Tightening Torque
(a): 45 Nm (4.5 kg.m, 32.5 lb.ft)
