Table B-2 Fuel Pump and Its Circuit Check
Table B-2 Fuel Pump and Its Circuit Check

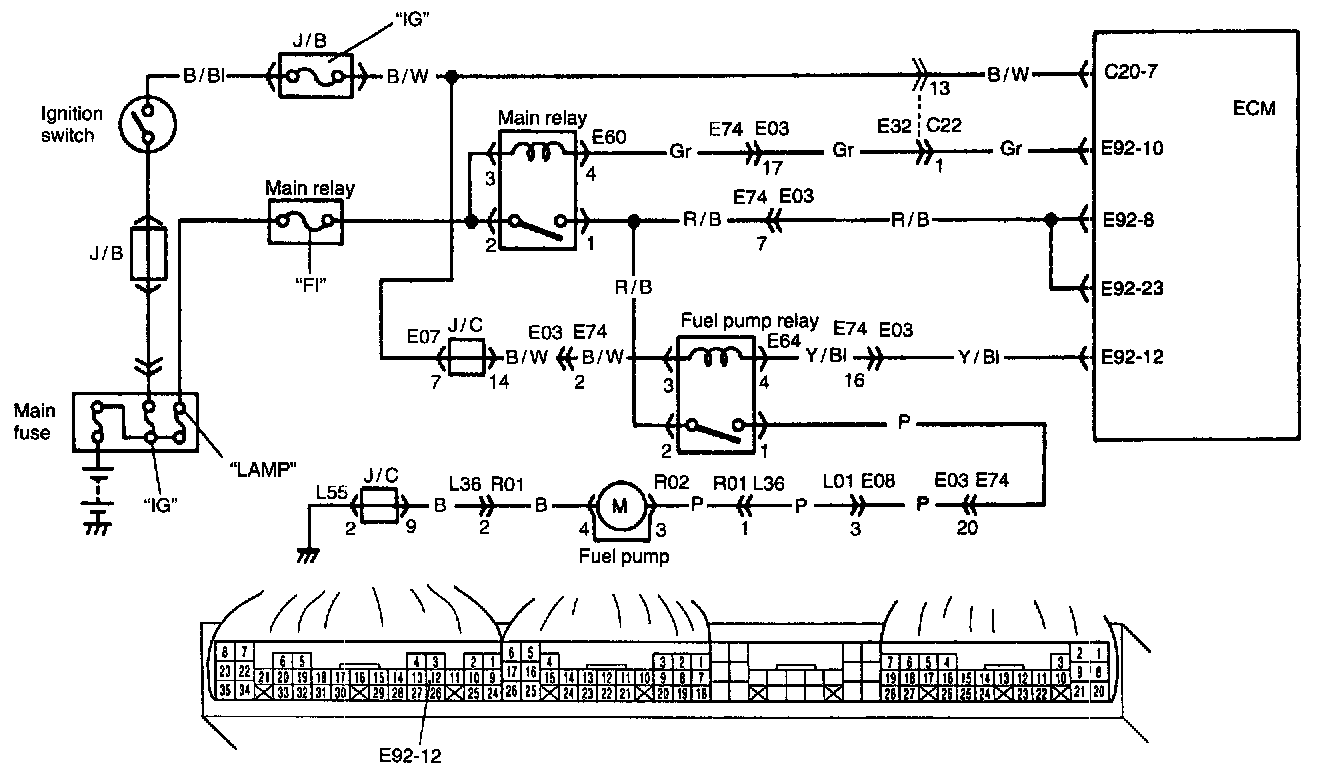

WIRING DIAGRAM

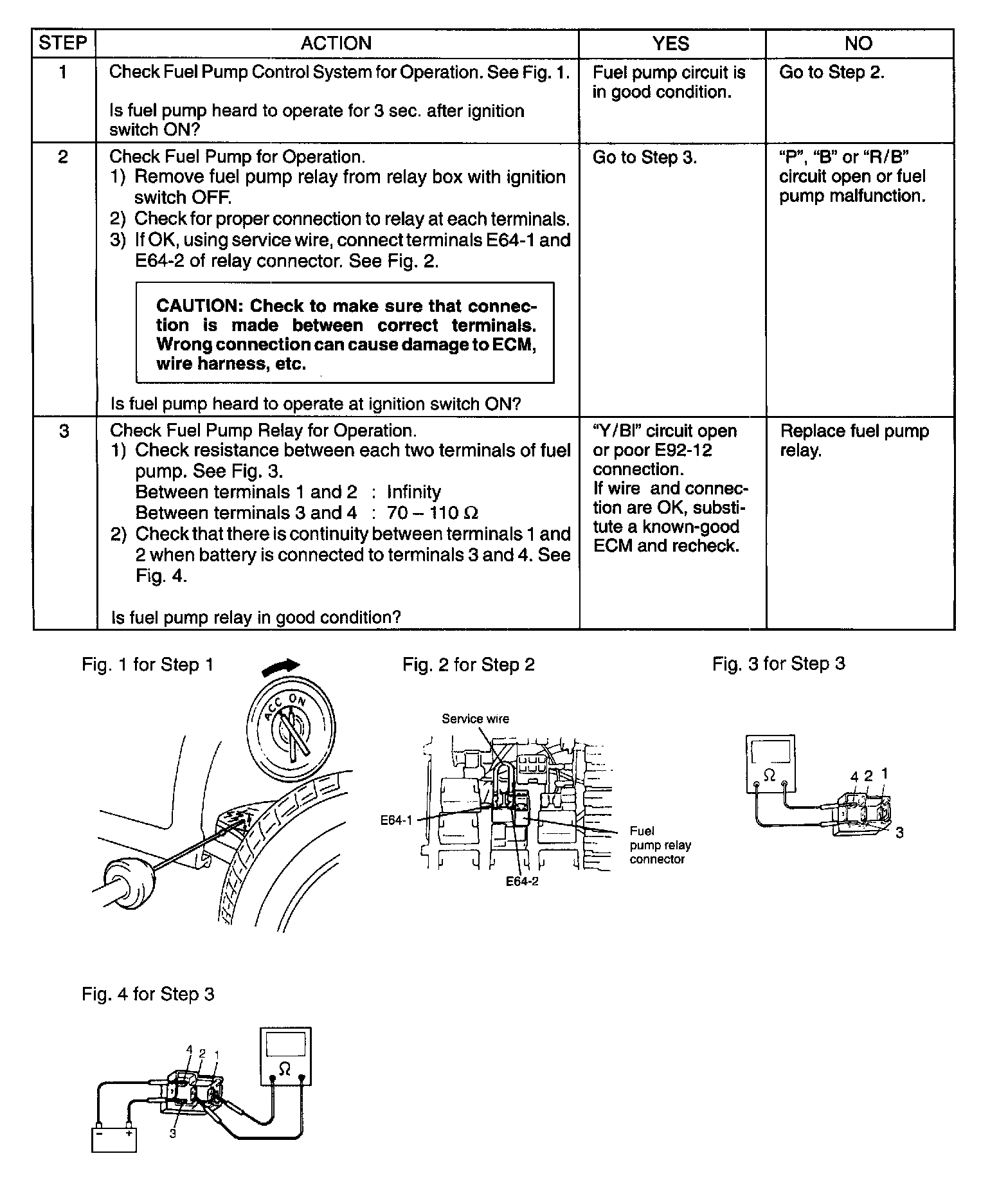

INSPECTION
