Rear

REMOVE AND INSTALL WHEEL HUB (WHEEL BEARING) ASSEMBLY AND WHEEL STUD (HUB BOLT)

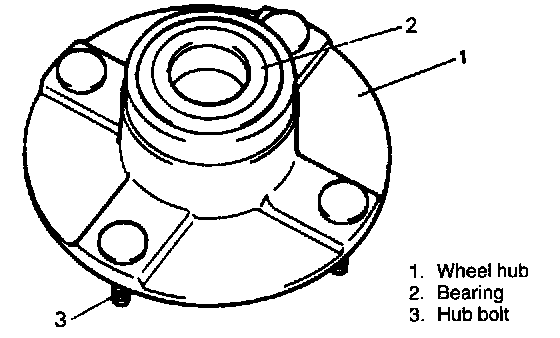

NOTE: Wheel bearing and wheel hub form a solid unit. When wheel bearing is found defective and its replacement is necessary, replace hub assembly.

REMOVAL
1. Hoist vehicle and remove brake disc.

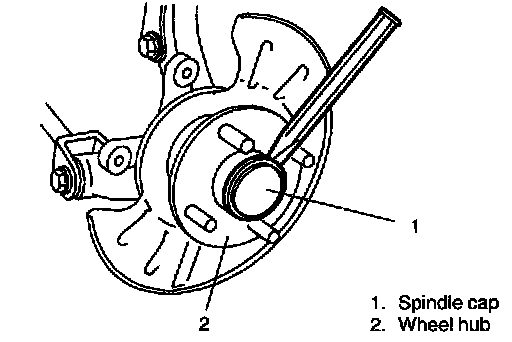

2. Remove spindle cap as shown (by hammering lightly at 3 locations around it so as not to deform or cause damage to seating part of cap).





3. Uncalk spindle nut and remove spindle nut and washer.

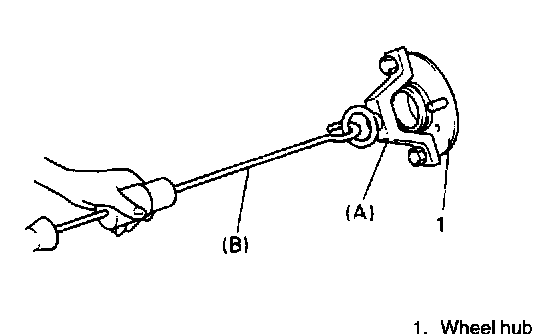

4. Pull wheel hub off by using special tools.

Special Tool
(A): 09943-17912
(B): 09942-15510





5. Remove hub bolts.

INSTALLATION
1. Install hub bolts.
2. For ABS equipped vehicle, check ABS wheel speed sensor rotor for damage.

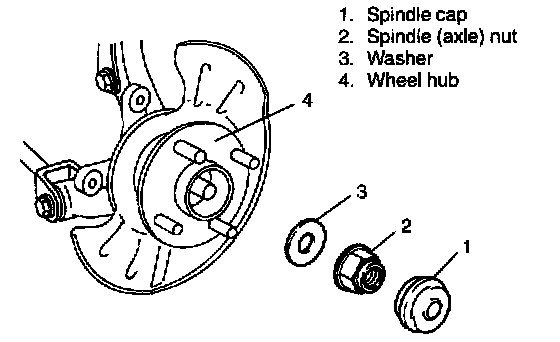

3. Install wheel hub assembly, washer and new spindle nut.

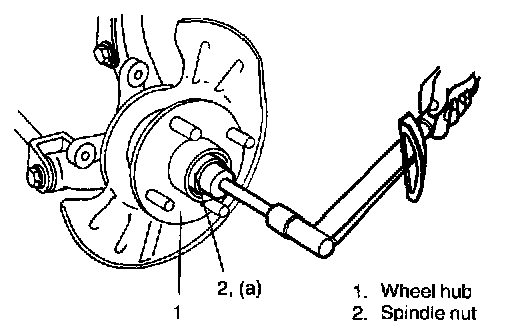

4. Tighten spindle nut to specified torque.

NOTE: Removed spindle nut must be replaced with new one.

Tightening Torque (a): 175 Nm (17.5 kg-m, 126.5 ft. lbs.)

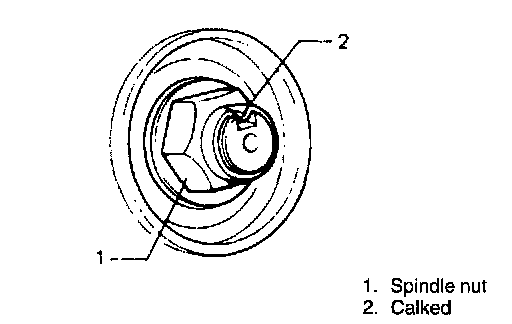

5. Calk spindle nut securely.
6. Install spindle cap to wheel hub.

NOTE:
^ When installing spindle cap, hammer lightly several locations on the collar of cap until collar comes closely into contact with wheel hub.
^ If fitting part of cap is deformed or damaged or if it is fitted loosely, replace with new one.

7. Install brake disc, caliper, and wheel.
8. Perform brake test.
