Suzuki
>>
1999
>>
Esteem GLX Sedan Plus L4-1.8L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Clock
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

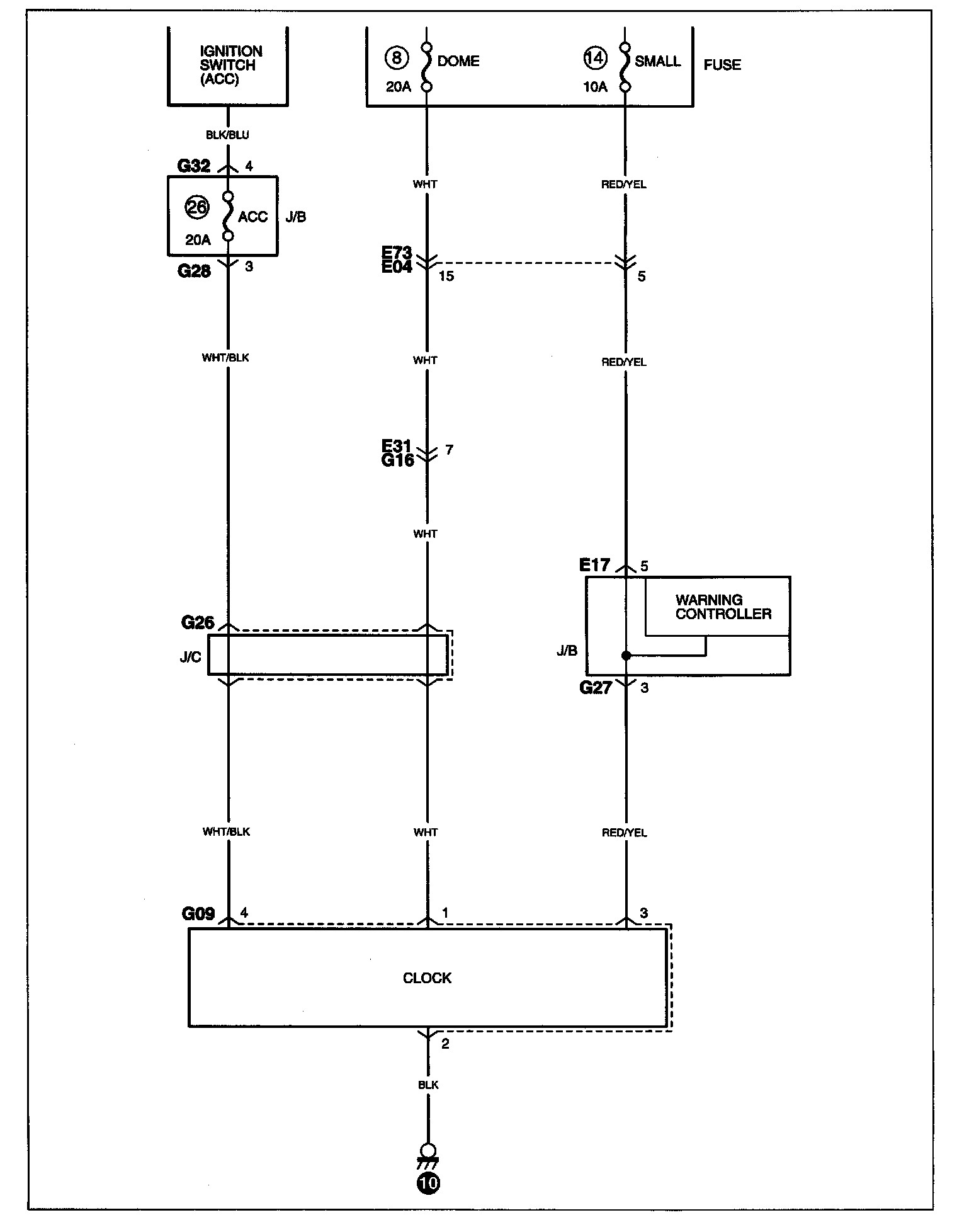

G-1 Clock <If Equipped>:
