Esteem GLX Sedan Plus L4-1.8L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Cigarette Lighter
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

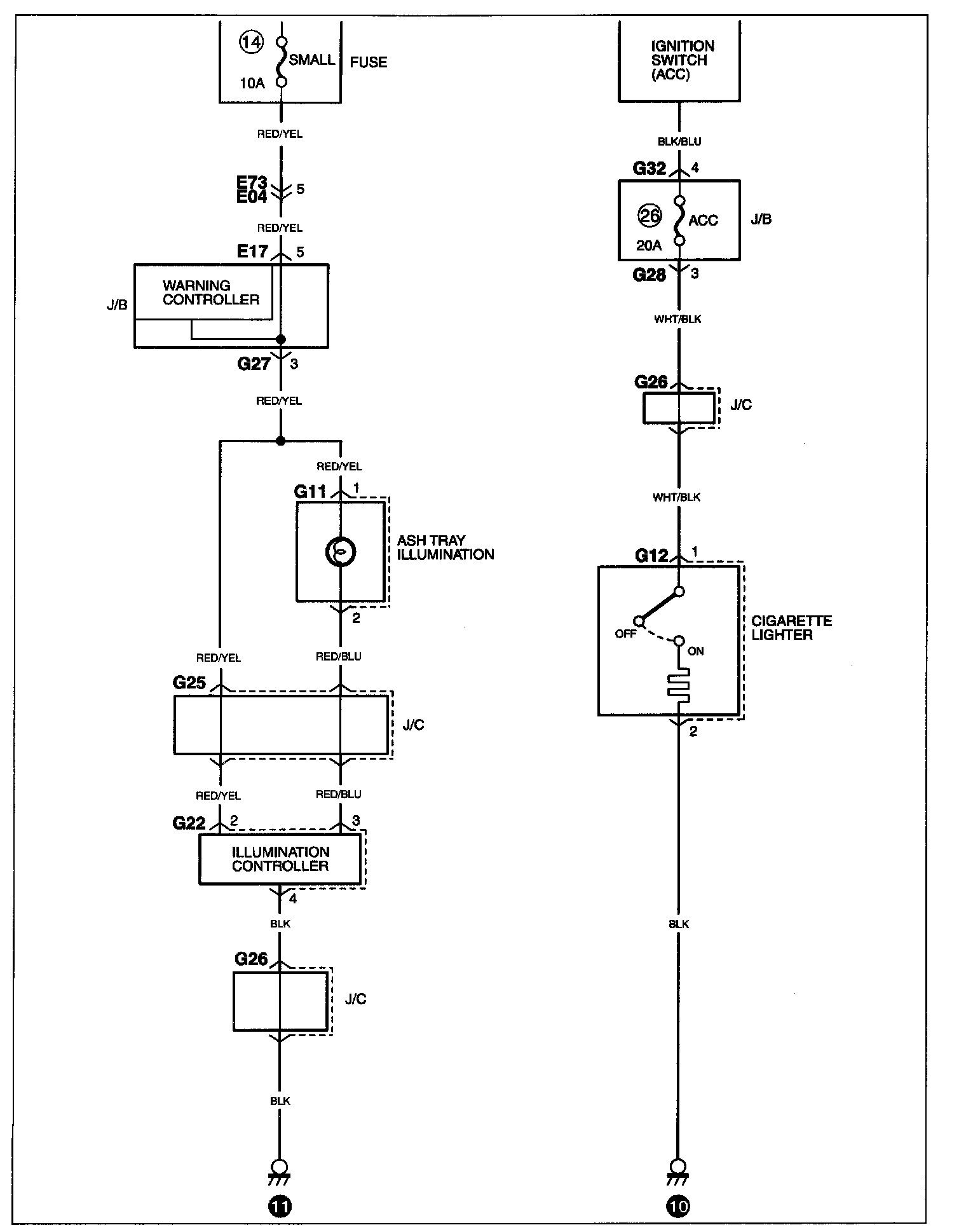

B-5 Cigarette Lighter:
