Air Door Cable: Service and Repair

HEATER CONTROL CABLES

REMOVAL




1. Disconnect negative (-) cable at battery.
2. Disable air bag system.

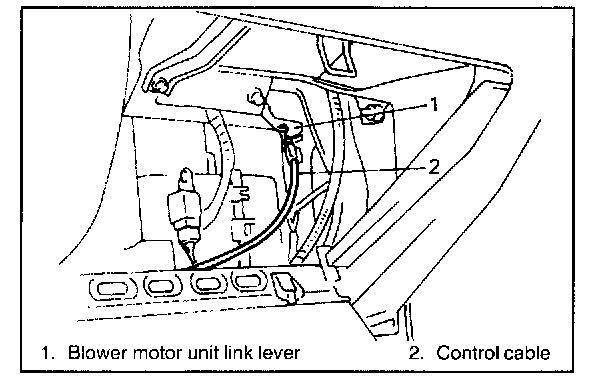

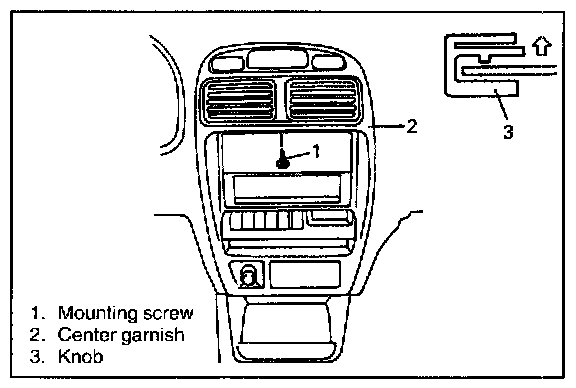

3. Remove control lever knobs and center garnish mounting screw.
4. Disconnect mode control switch and blower motor switch at couplers.
5. Remove center garnish with mode control switch.




6. Disconnect control cables from blower motor unit and heater unit.
7. Remove control lever assy.

INSTALLATION
Install in the reverse order of removal.

HEATER CONTROL LEVER ASSEMBLY


REMOVAL

Control Cables:

1. Remove control lever assembly.
2. Remove heater control cables from control lever assembly.





INSTALLATION
Install control cables by reversing removal procedure, noting the following point.

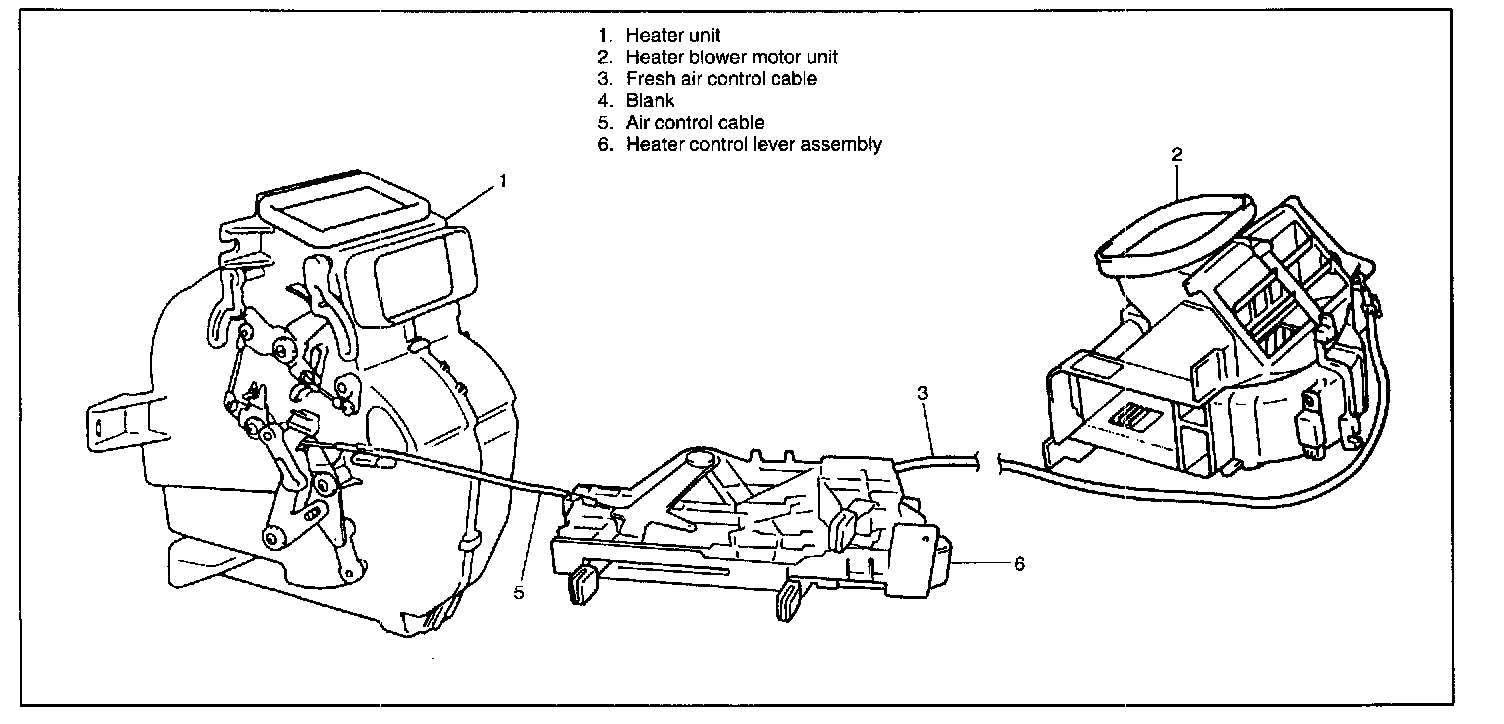

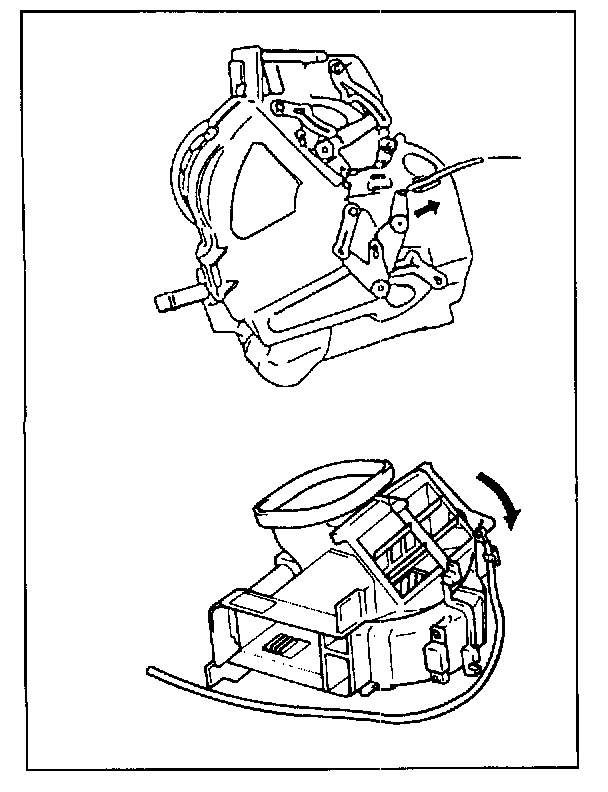

After installing control cables to control levers, move control levers to such position as to pull cables fully, then connect and clamp control cables to heater unit and blower motor unit levers as shown.

NOTE: After installing control cables, be sure that control knobs move smoothly and stop at proper position.
