Air Door Actuator / Motor: Testing and Inspection

Mode Actuator







1. Connect battery voltage (+) to terminal "a" and (-) to terminal "g".

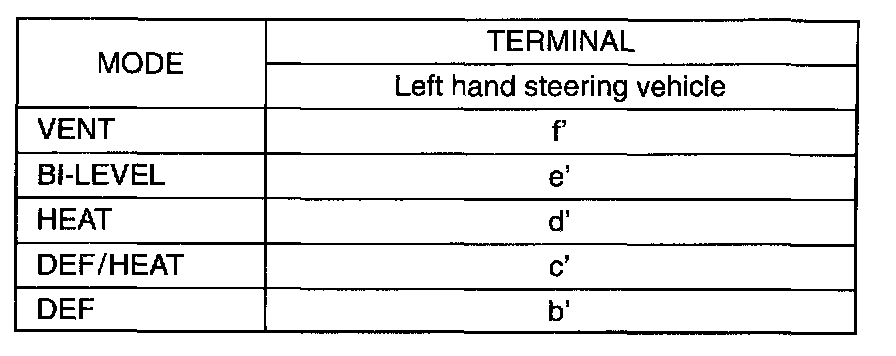

2. Connect each terminal listed below to terminal "g" (negative (-) terminal of battery) and check if lever rotation angel is as specified in figure at the left.
