Air Door Actuator / Motor: Service and Repair

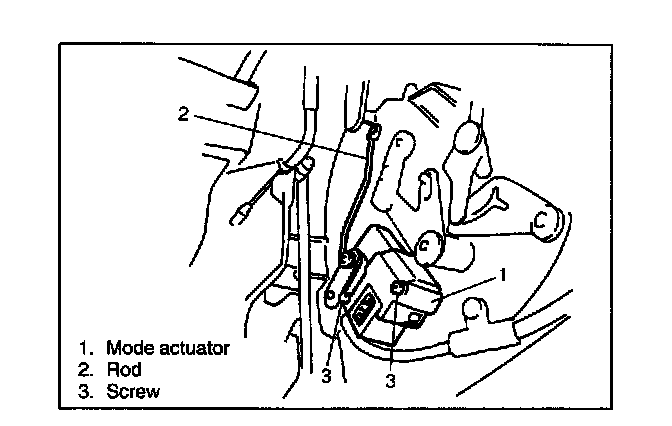

Mode Actuator

REMOVAL
1. Disconnect negative (-) cable at battery.
2. Disable air bag system.




3. Disconnect mode actuator coupler.
4. Disconnect mode actuator rod from heater unit.
5. Remove mode actuator from heater unit.

INSTALLATION
Install in the reverse order of removal.
