Esteem GLX Sedan Plus L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Air Conditioning System

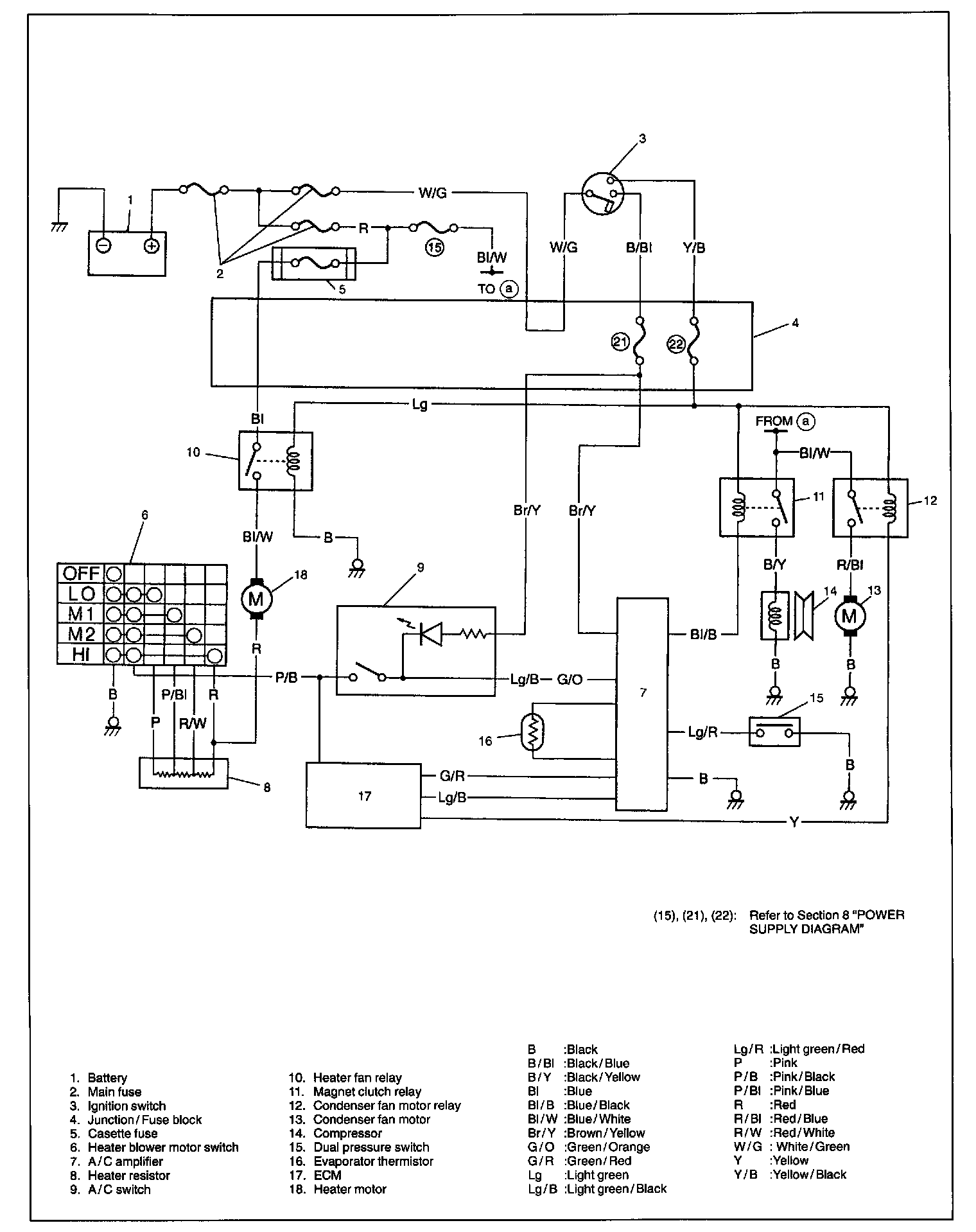

Air Conditioning System
Wiring Circuit:
