Esteem GLX Sedan Plus L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
>>
Engine Control Module
Engine Control Module

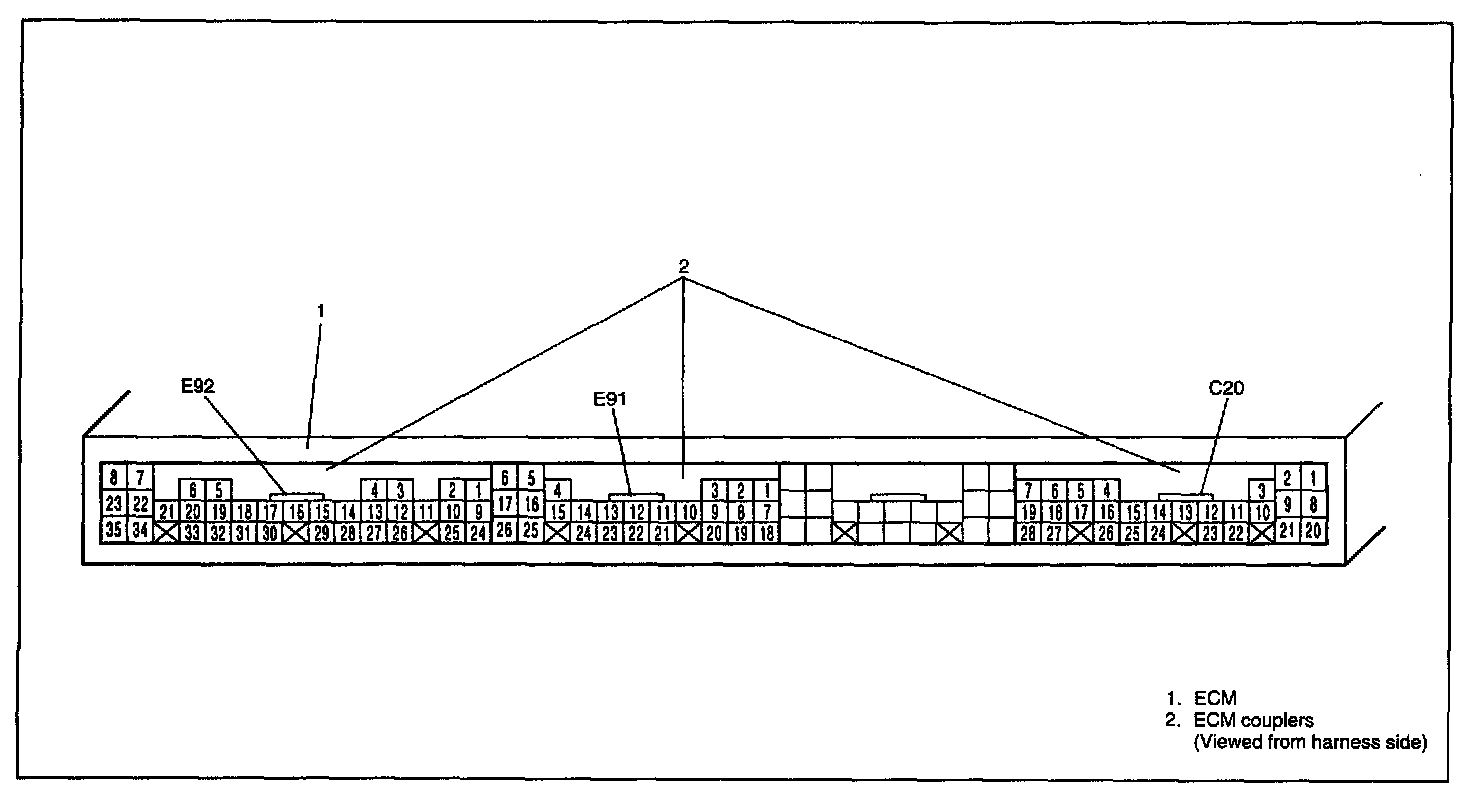

Views - Connector (E92, E91, C20):
