Hydraulic Control Assembly - Antilock Brakes: Description and Operation

ABS HYDRAULIC UNIT

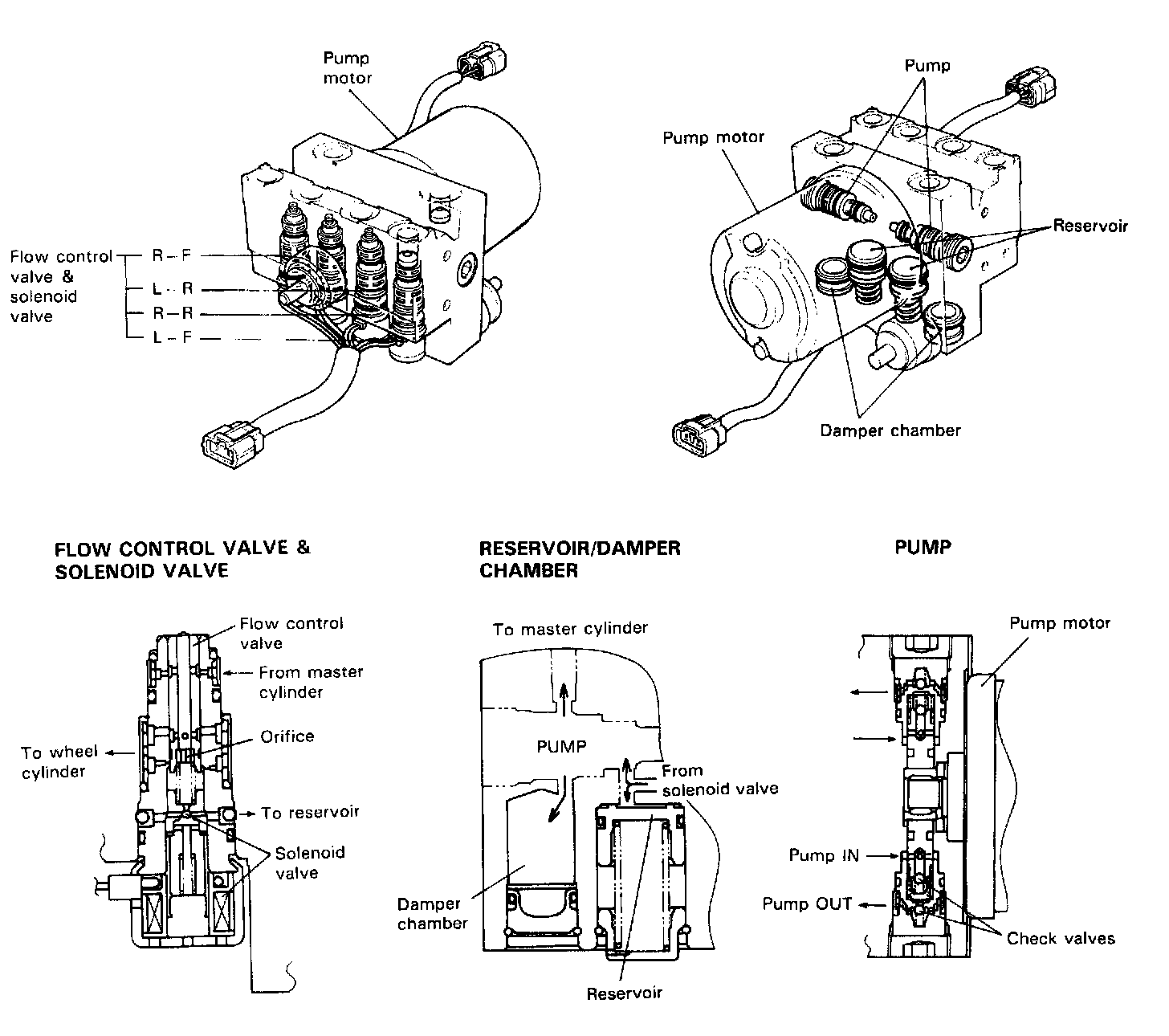

The ABS hydraulic unit consists of solenoid valves, flow control valves, reservoirs, pumps, pump motor, etc. Based on signals from the ABS control module, it controls the fluid pressure applied to the wheel cylinder of each brake.
