Home >> Suzuki >> 1999 >> Esteem GLX Sedan L4-1.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning System >> Part Four

Part Four

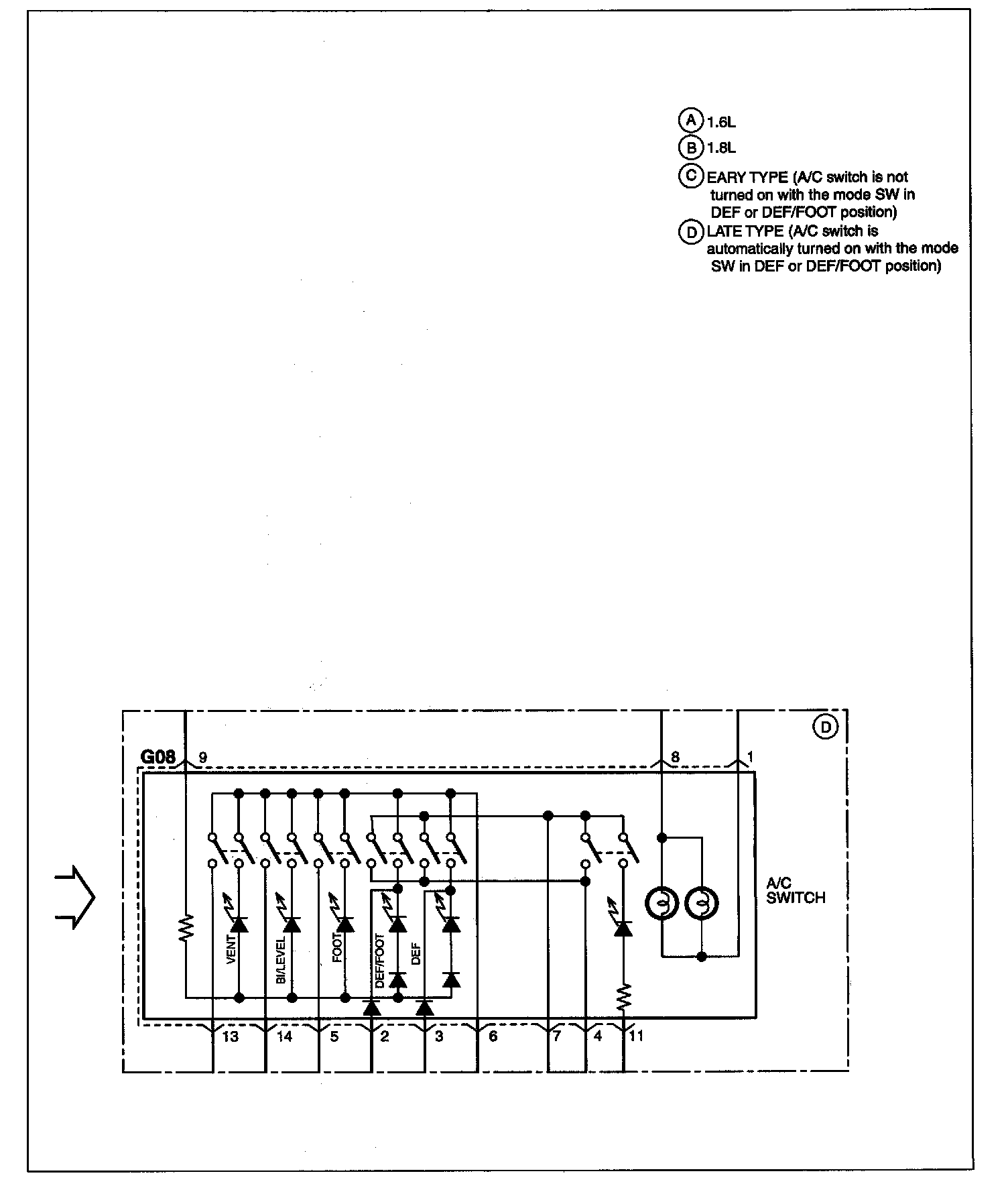

E-1 Heater & Air Conditioning System <If Equipped> Part 4:
