Replacement

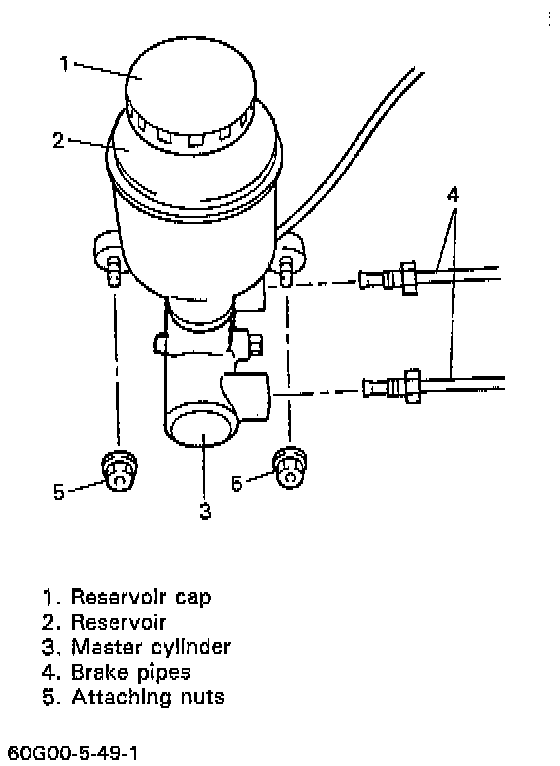

REMOVAL
1. Disconnect reservoir lead wire at coupler.
2. Clean around reservoir cap and take out fluid with syringe or such.
3. Disconnect brake pipes from master cylinder.

CAUTION: Brake fluid is extremely damaging to paint. Do not allow brake fluid to get on painted surfaces.

4. Remove master cylinder attaching nuts.
5. Remove master cylinder.

NOTE: Check clearance between booster piston rod and primary piston.

INSTALLATION

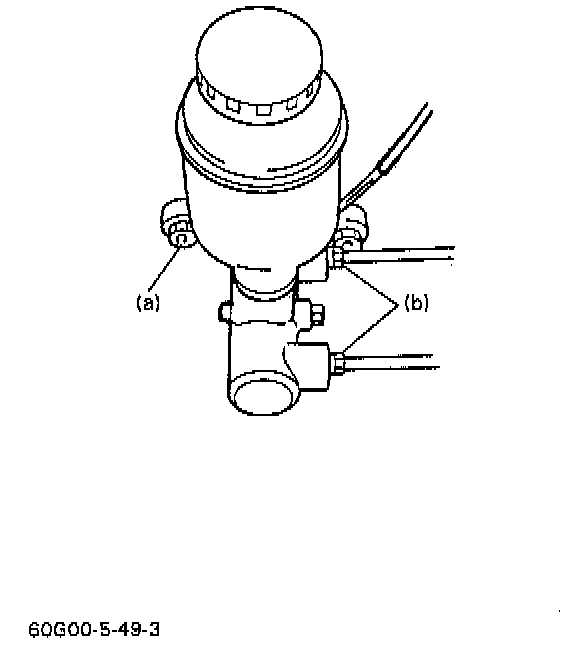

1. Install master cylinder as shown and torque attaching nuts (a) to 13 Nm (9.5 ft. lbs.).
2. Attach hydraulic lines and torque flare nuts (b) to 16 Nm (11.5 ft. lbs.).
3. Connect reservoir lead wire.
4. Fill reservoir with specified brake fluid.
5. After installing, bleed air from system and check brake pedal height and play. Service and Repair
6. Perform brake test and check each installed part for fluid leakage.
