A-4 Transmission Control Module Power and Ground Check
A-4 Transmission Control Module Power and Ground Check

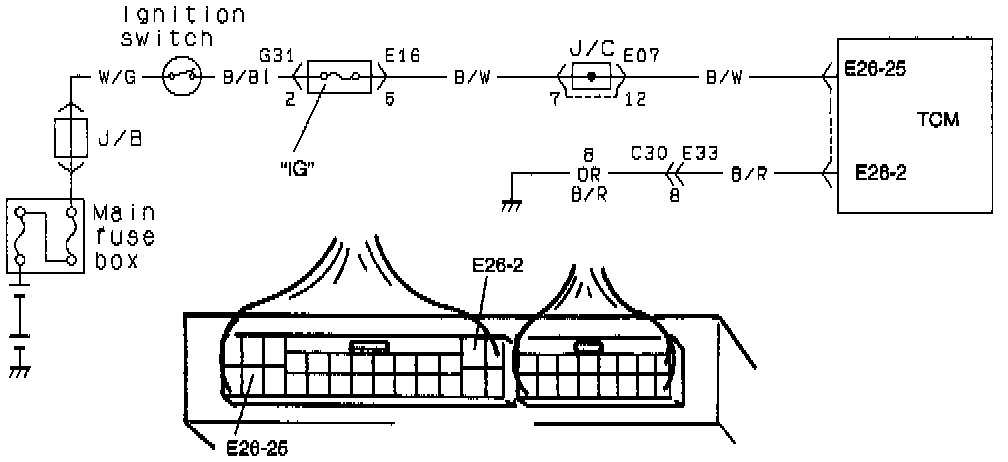

WIRING DIAGRAM
INSPECTION
