On-Vehicle

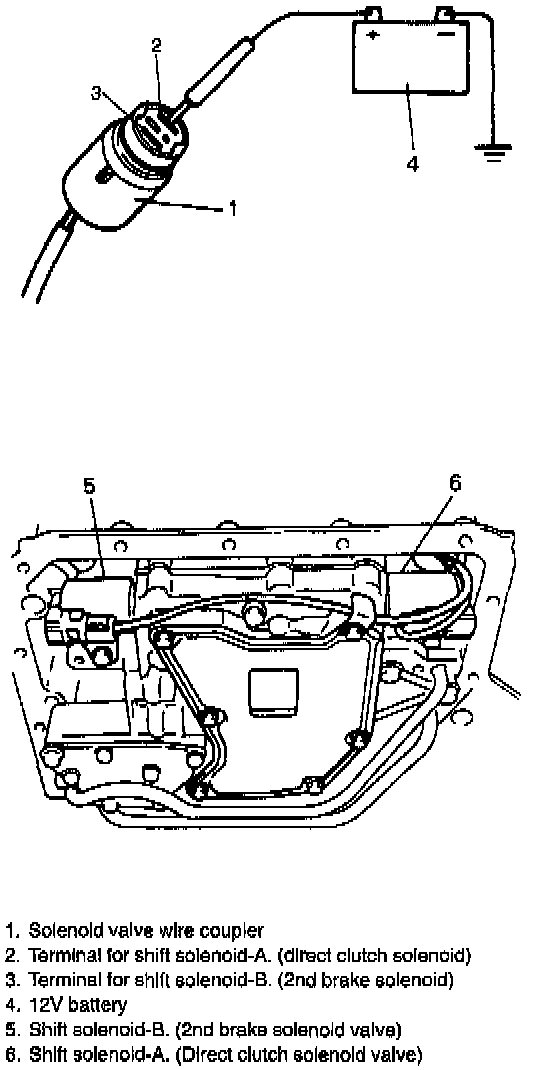

- Disconnect shift solenoid valve coupler from harness.








- Apply 12V to each terminal in solenoid valve coupler and check to be sure that a click sound is heard.

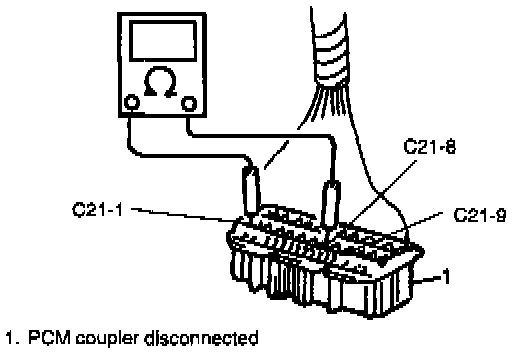

Shift solenoid valve circuit will be checked by using ohmmeter at [1][2]PCM coupler.
- With ignition switch turned OFF disconnect [1][2]PCM coupler.

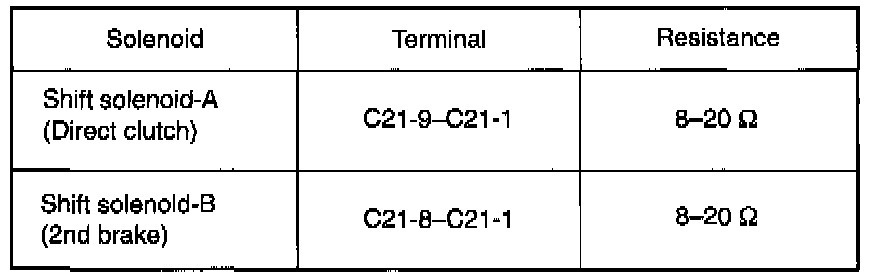

- Bring ohmmeter probes in touch with coupler terminals from harness side and measure each resistance.
