Swift L4-1298cc 1.3L SOHC 3 TBI 8V
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Starter Motor
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures

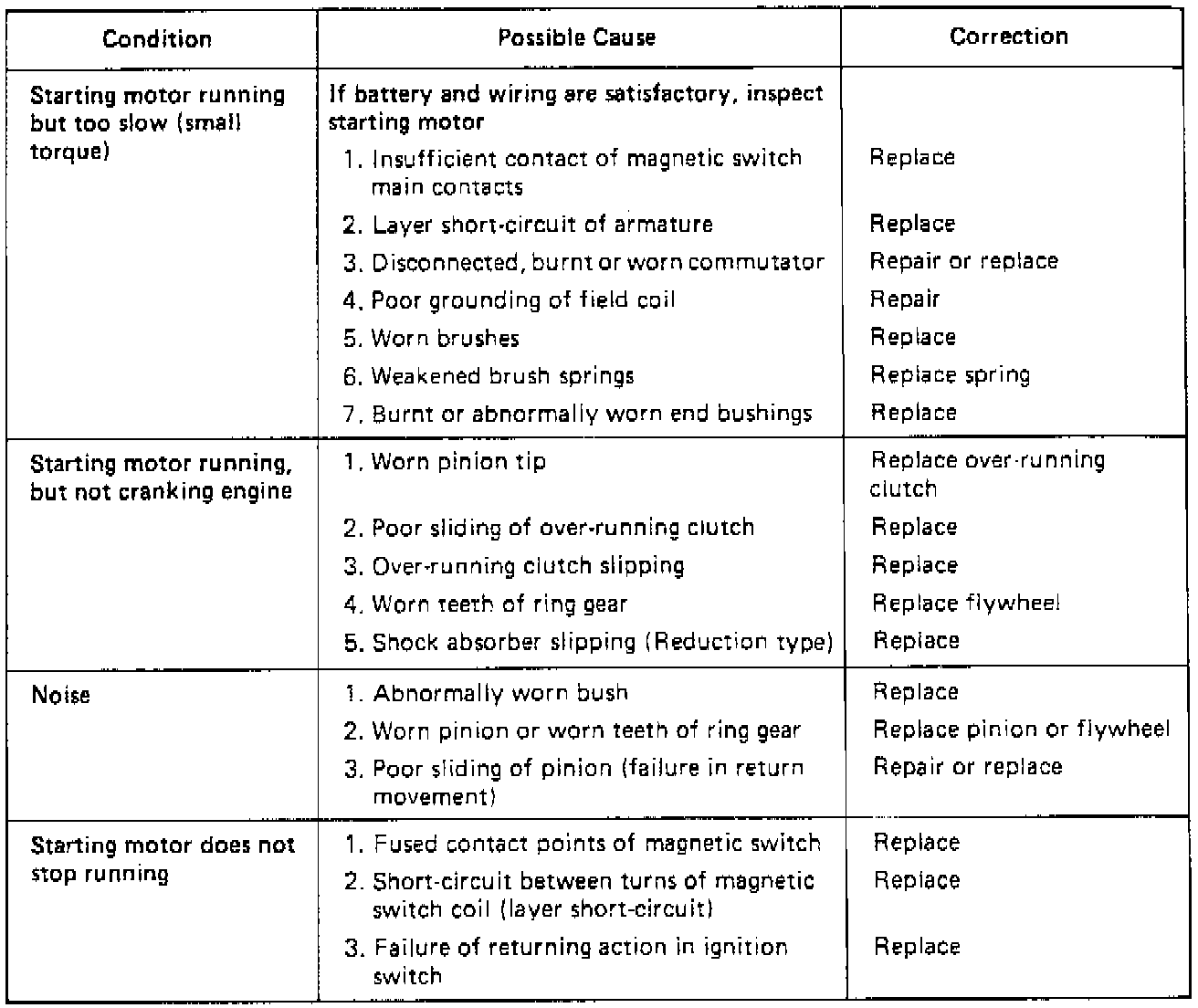

Fig. 6 Troubleshooting Chart (Part 1 Of 2):

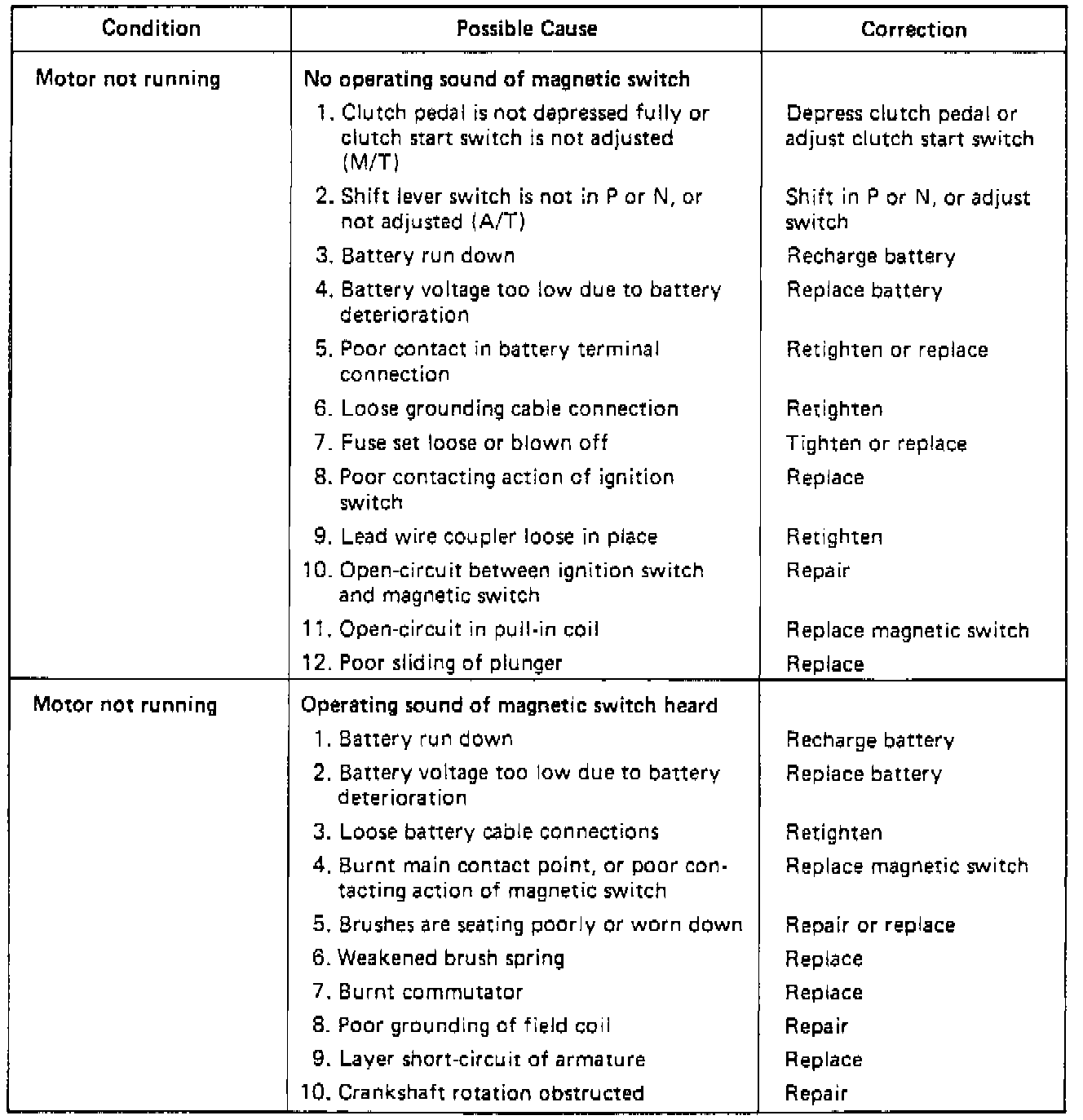

Fig. 6 Troubleshooting Chart (Part 2 Of 2):
