Throttle Body: Testing and Inspection

CAUTION: As throttle stop screw and throttle lever screw are factory adjusted precisely, don't remove or adjust them.

On-Vehicle Inspection
- Check that throttle valve lever moves smoothly.

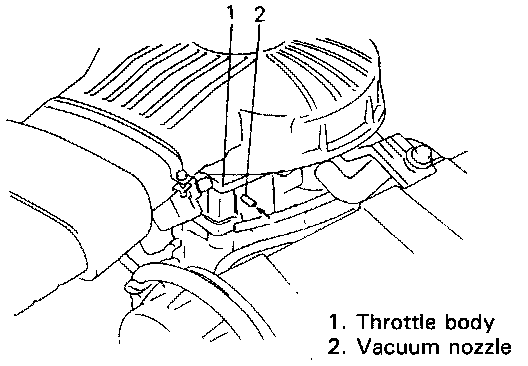

- Vacuum passage inspection. With fingers placed against vacuum nozzle, increase engine speed a little and check that vacuum is applied.
