Fuel Injector Resistor: Testing and Inspection

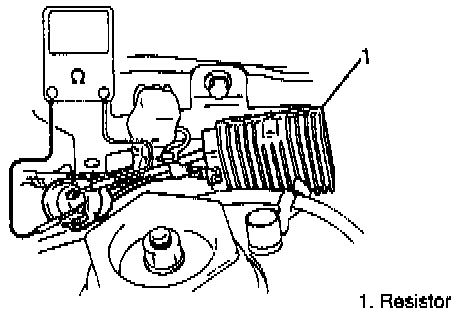

- With ignition switch OFF, disconnect resistor coupler.
- Check resistor for resistance.

Resistance: 1.9 - 2.1 Ohms at 20°C, 68°F

If result is not within specifications, replace.
