Evaporative Emissions Hose: Testing and Inspection

Vacuum Passage Inspection

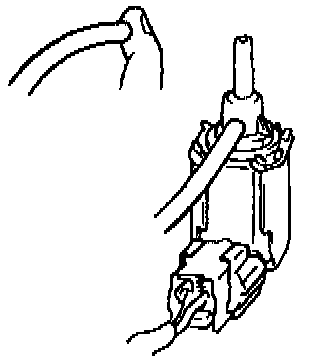

Start engine and run it at idle speed. Disconnect vacuum hose from EVAP canister purge valve. With finger placed against hose disconnected, check that vacuum is applied.

Vacuum Hose Inspection





Check hoses for connection, leakage, clog and deterioration. Replace as necessary.
