B-6 Radiator Fan Control System Check
B-6 Radiator Fan Control System Check

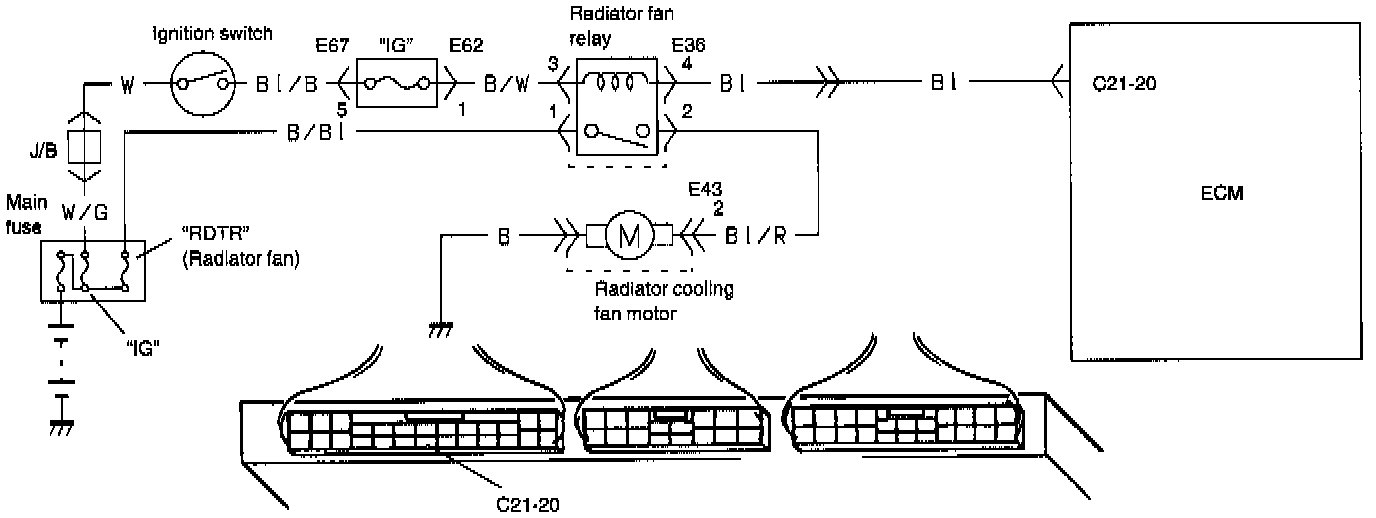

WIRING DIAGRAM

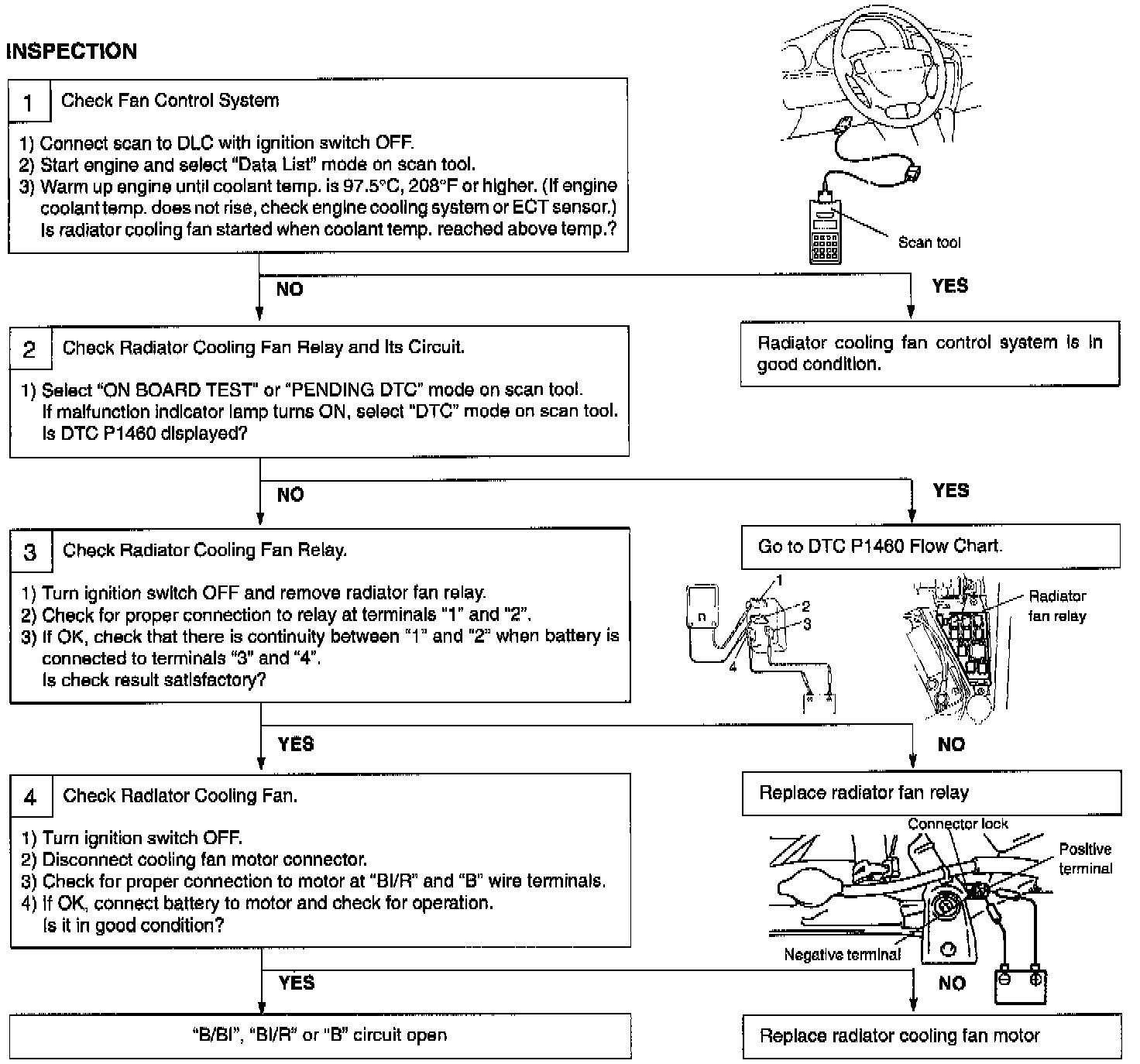

INSPECTION
