Swift L4-1298cc 1.3L SOHC 3 TBI 8V
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Air Bag Systems
>>
System Diagram
>>
Air Bag Control System
Air Bag Control System

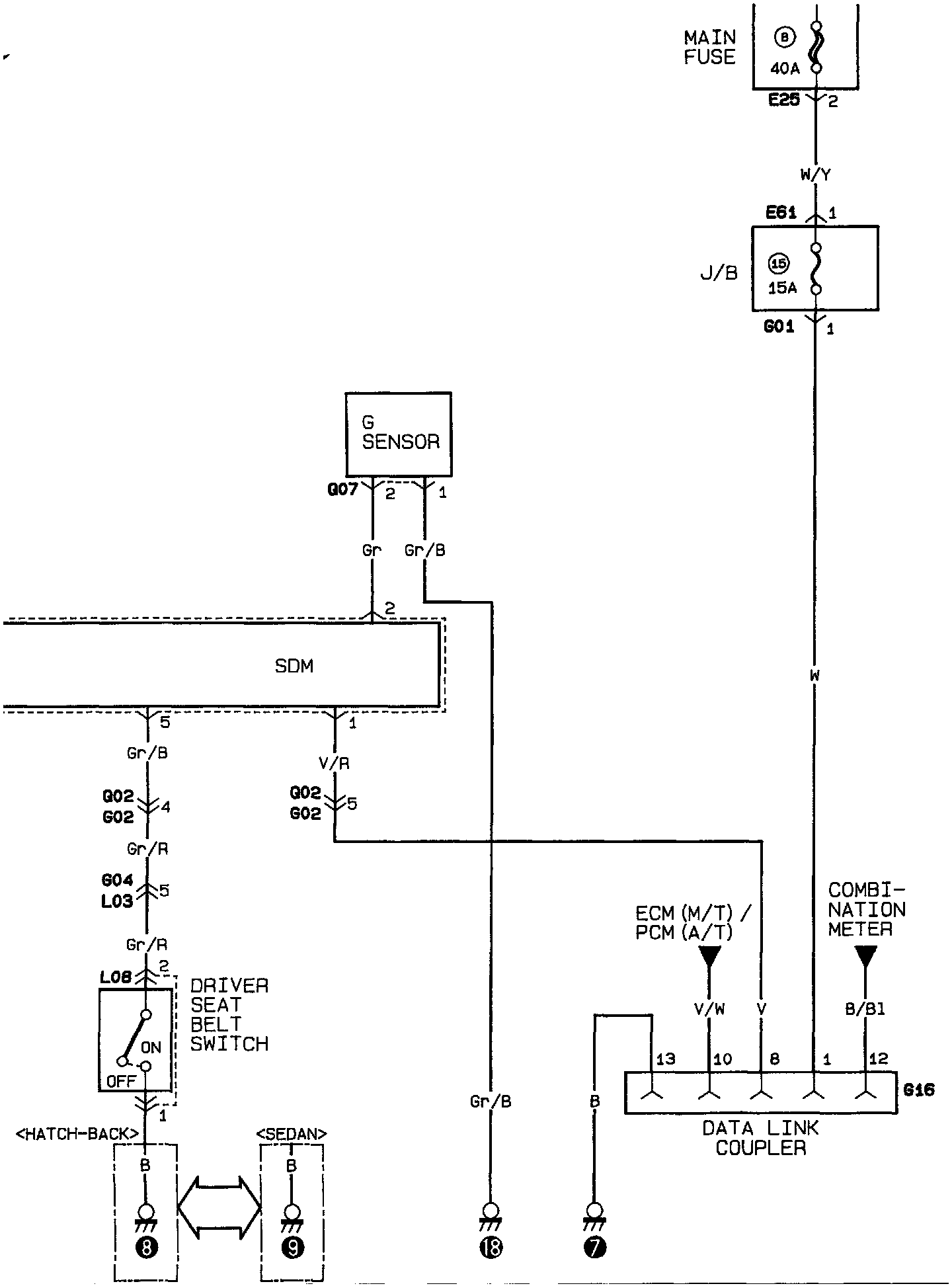

Air-Bag Control System (Part 1 Of 2):

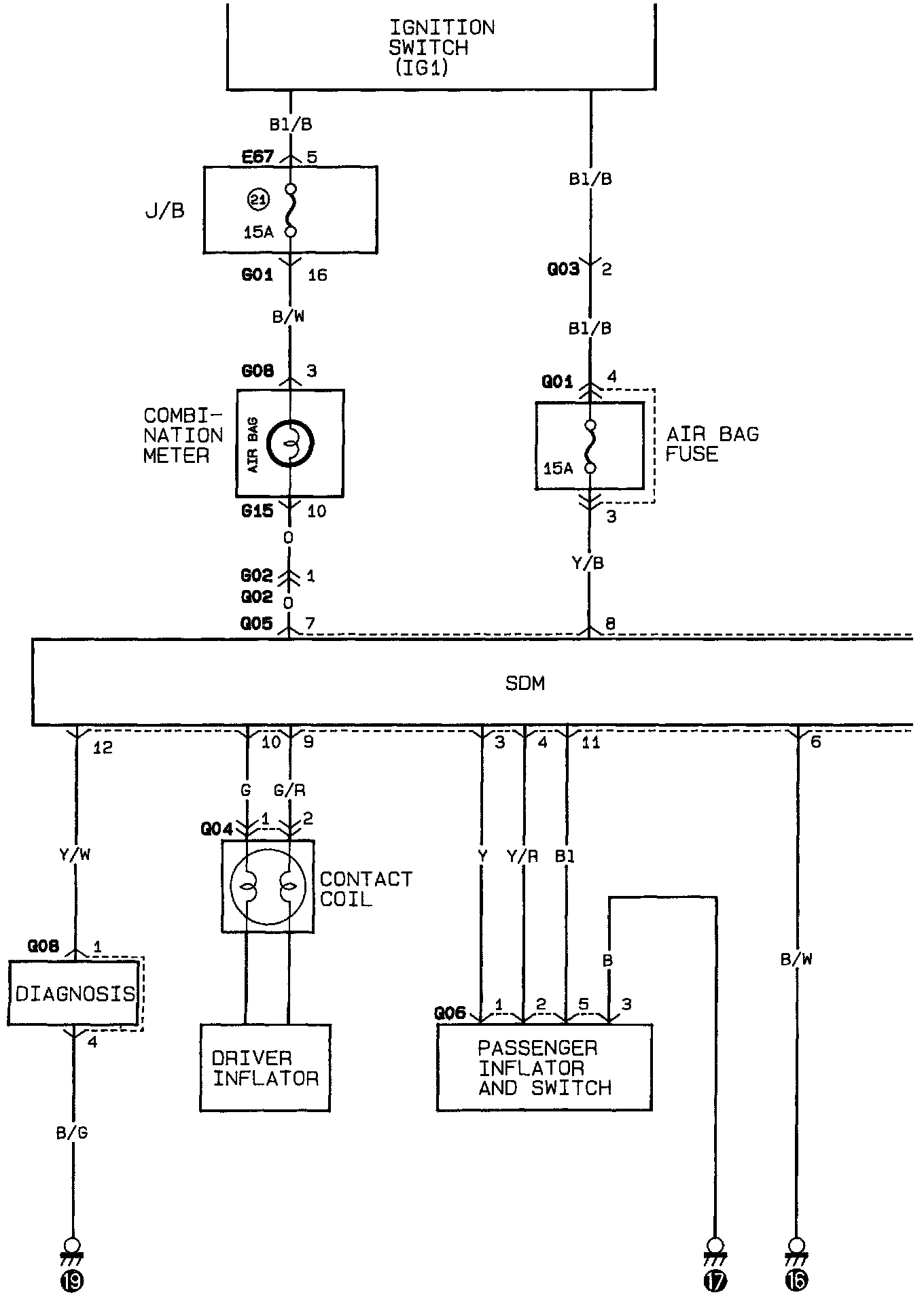

Air-Bag Control System (Part 2 Of 2):
