ABS Main Relay: Service and Repair

1. Disconnect battery ground cable.

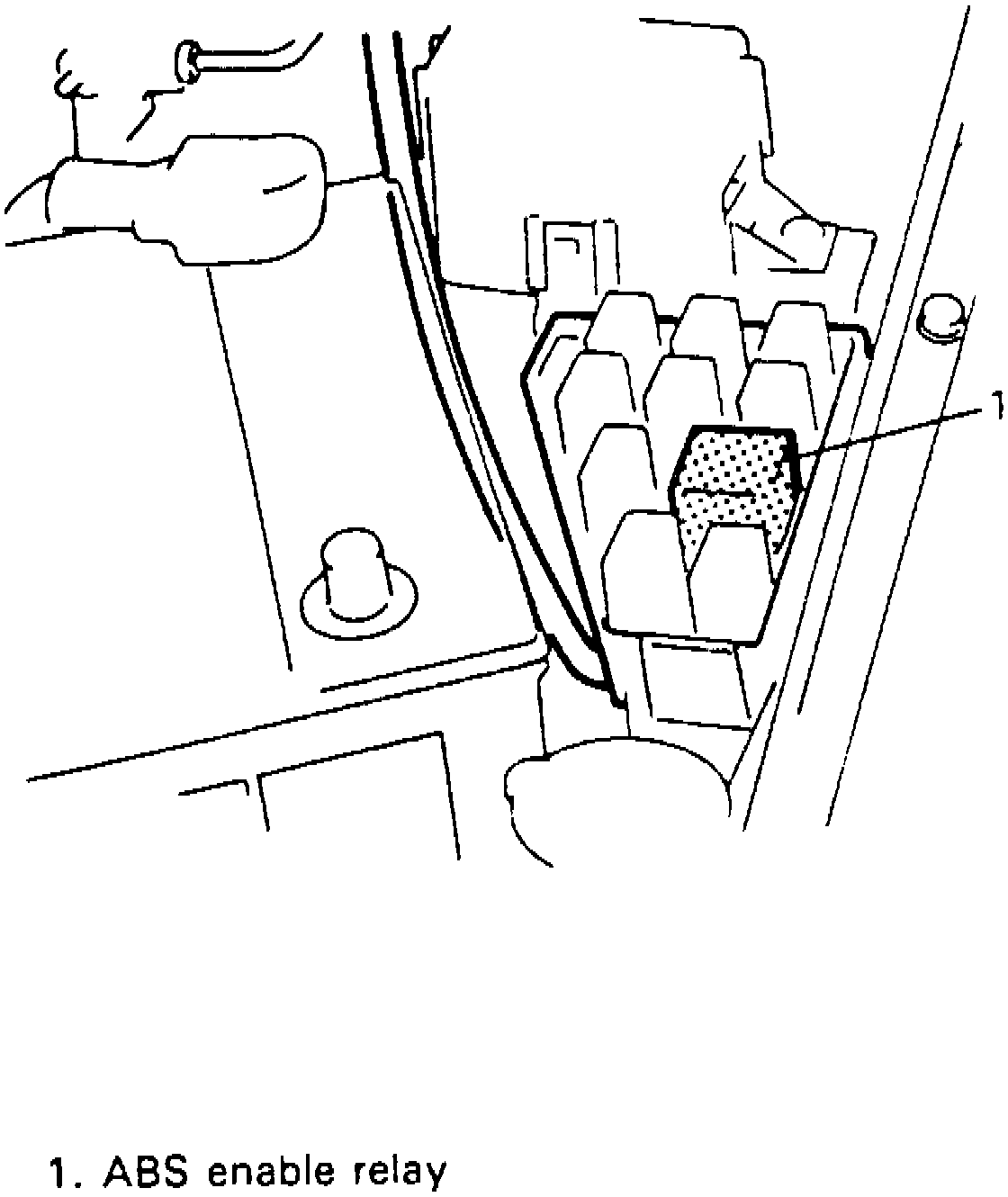

Fig. 11 ABS Enable Relay Location:

2. Remove enable relay cover, Fig. 11.
3. Disconnect relay from electrical connector.
4. Reverse procedure to install.
