P Codes - Powertrain Control System

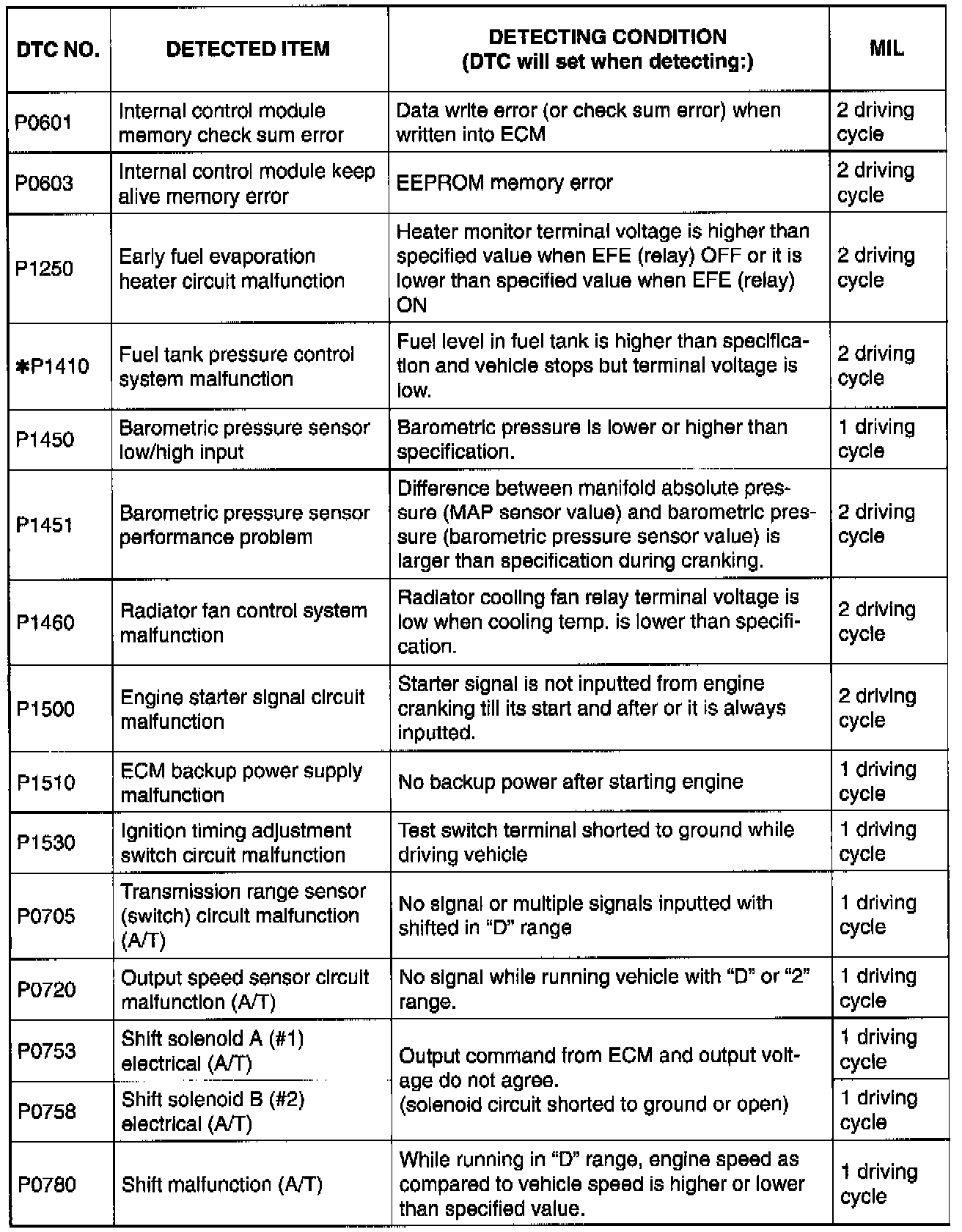

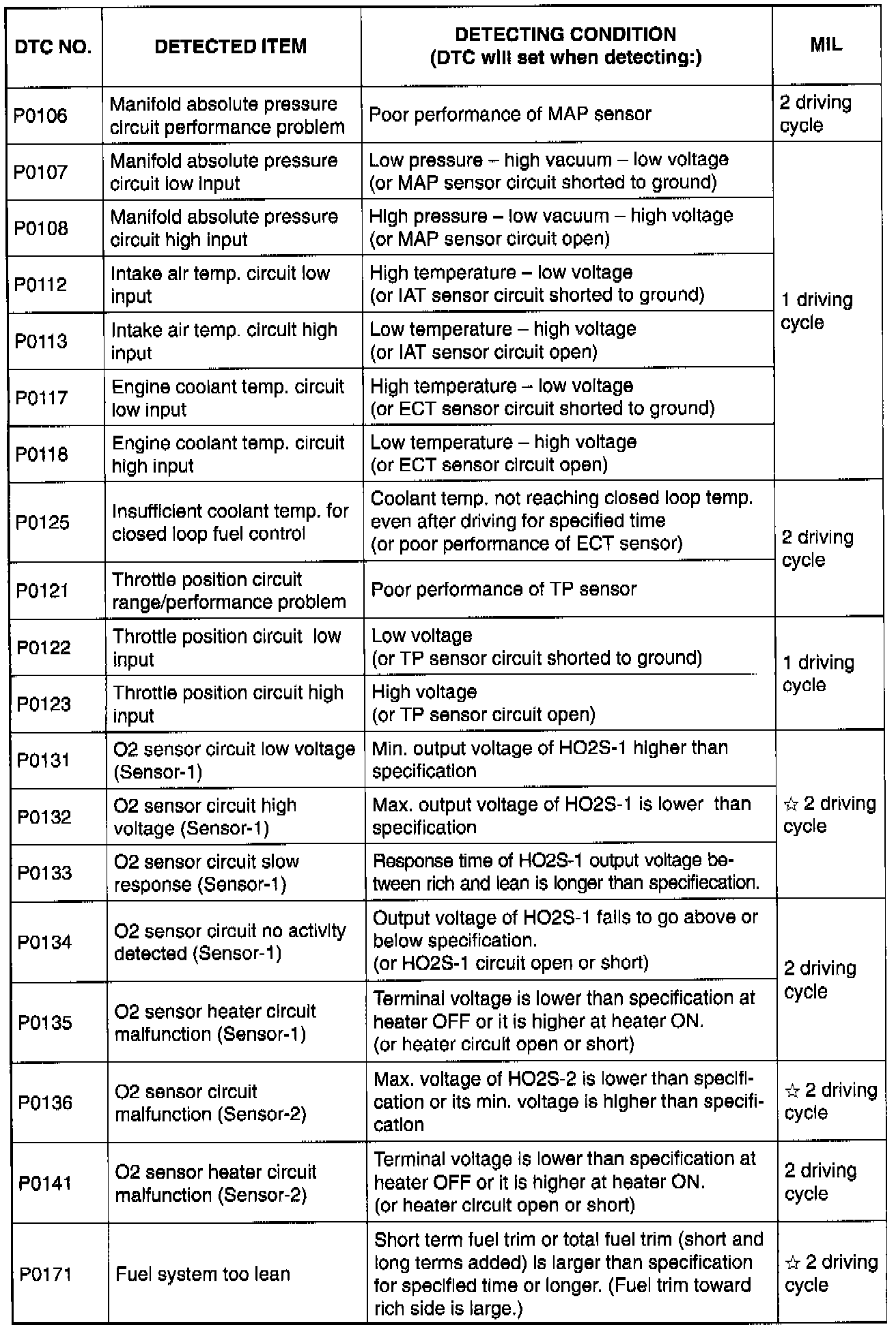

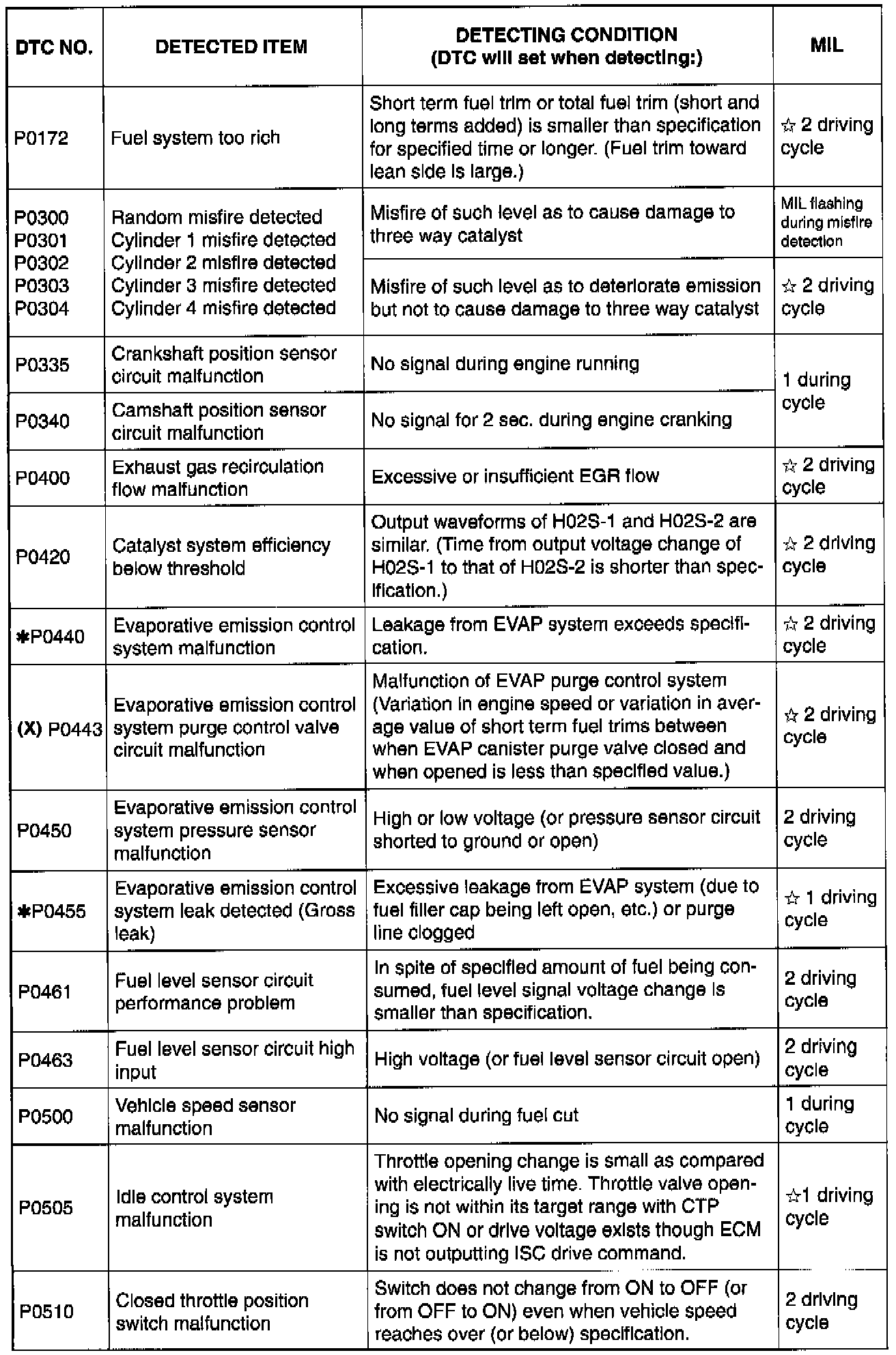

TROUBLE CODE CHARTS

NOTE:
- The DTC with (X) is applicable to vehicle not equipped with tank pressure control solenoid vacuum valve only.
- The DTCs with * (asterisk) are applicable to vehicle equipped with tank pressure control solenoid vacuum valve only.
- For star marked items in MIL column, MIL in Canada spec. vehicle does not light even when DTC is detected. Bear this in mind when diagnosing troubles.

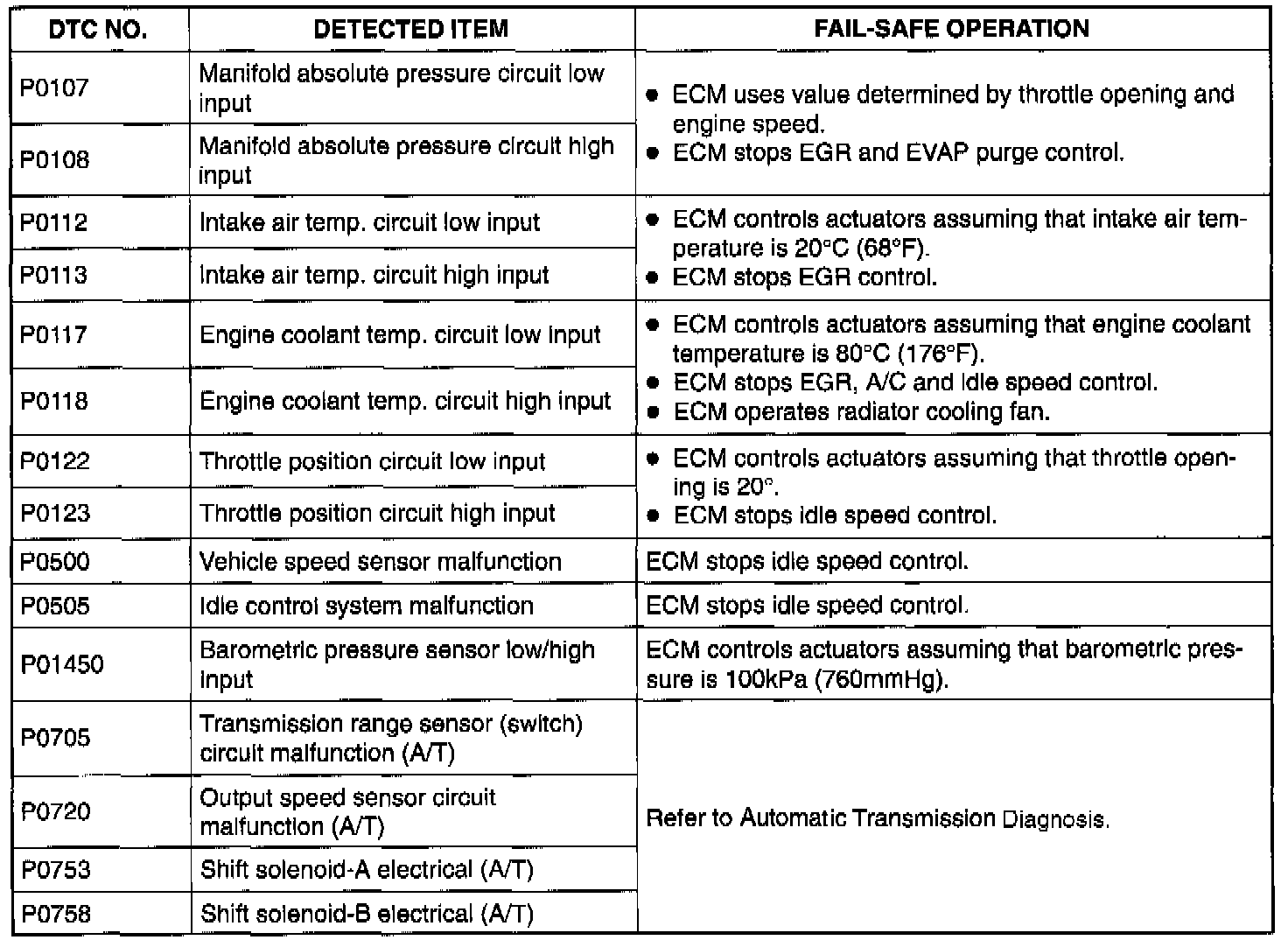

FAIL-SAFE CODE CHART

When any of the following DTCs is detected ECM enters fail-safe mode as long as malfunction continues to exist but that mode is canceled when ECM detects normal condition after that.
