Air Bag Harness - Modification

TSB No. TS 7-03 04126
Section Title: Miscellaneous

Division: Automotive
Category: Technical

SUBJECT:
MODIFICATION OF SDM AND AIR BAG HARNESS

MODEL:
ESTEEM

YEAR:
FEBRUARY 1996 PRODUCTION AND LATER

CONDITION:
Change in the SDM and air bag harness.

CAUSE:
Factory modification.

CORRECTION:
When diagnosing the air bag system, please use the parts and service information listed in this bulletin.

This bulletin is to inform you of the modification of the SDM (Sensing and Diagnostic Module) and air bag harness which has been carried out since February 1996 production. When diagnosing the air bag system, please use the information included in this bulletin.

EFFECTIVE STARTING VIN WITH UPDATED PARTS

JS2GB31S_9T5105207~

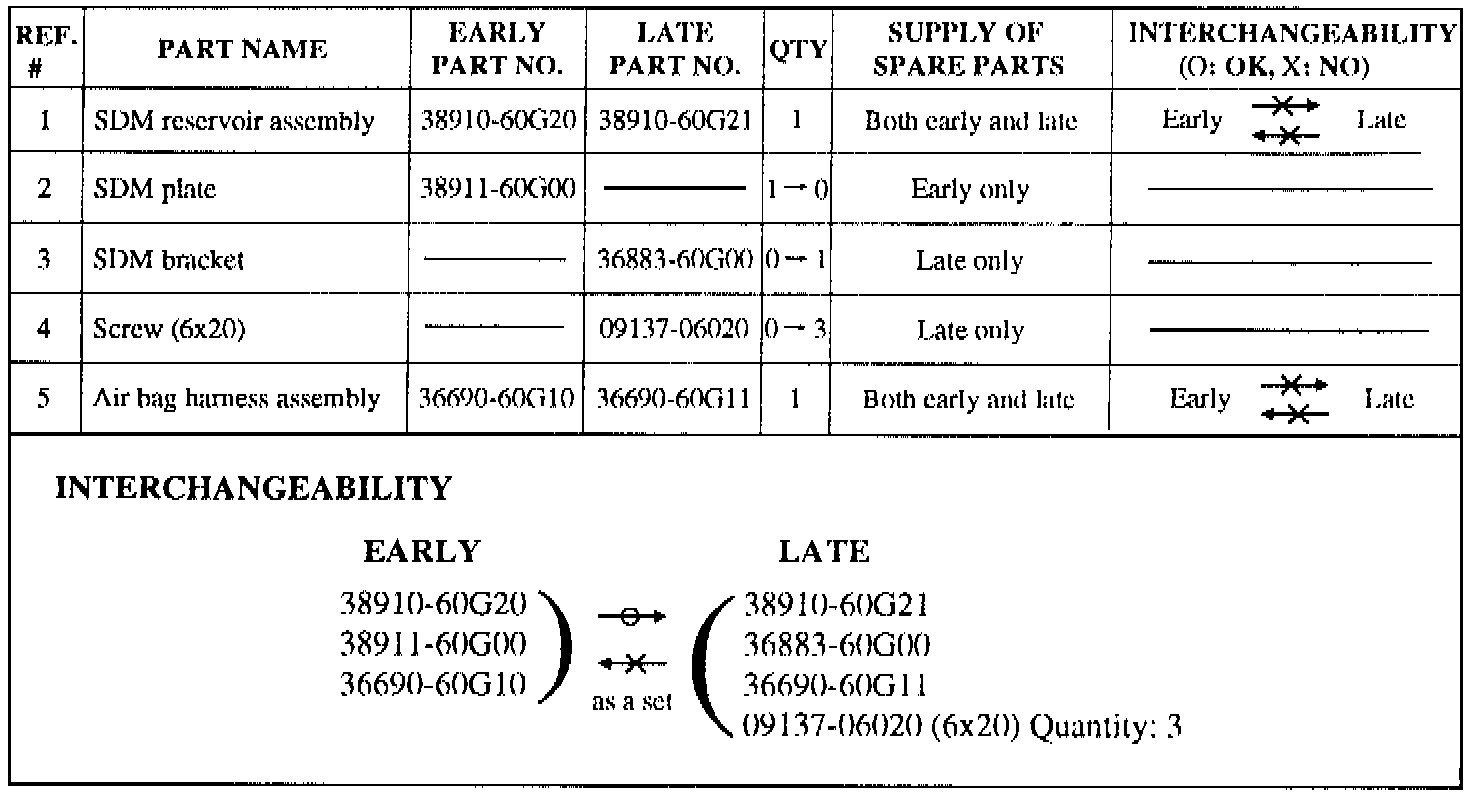

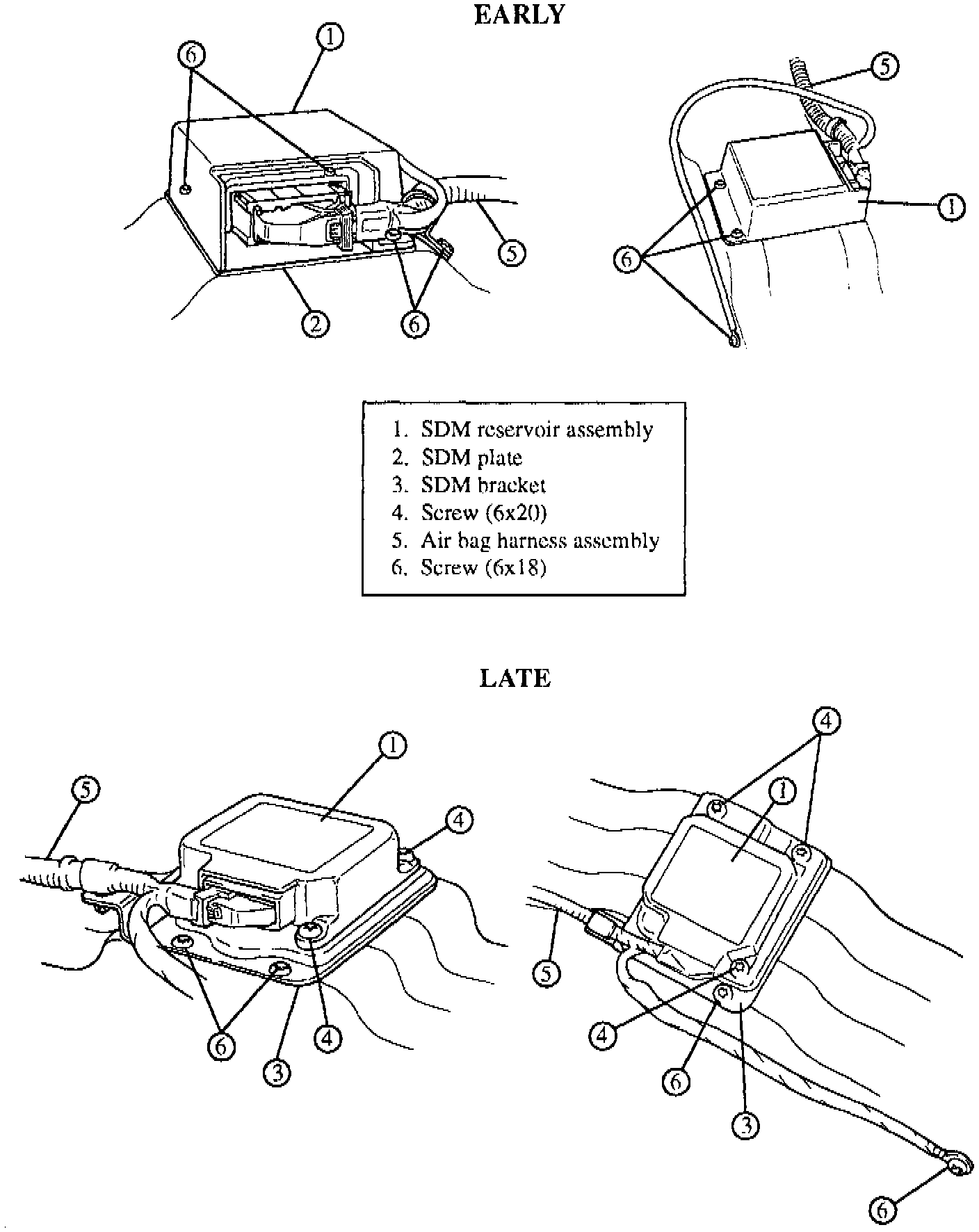

PARTS IDENTIFICATION





PARTS SUPPLY DATA

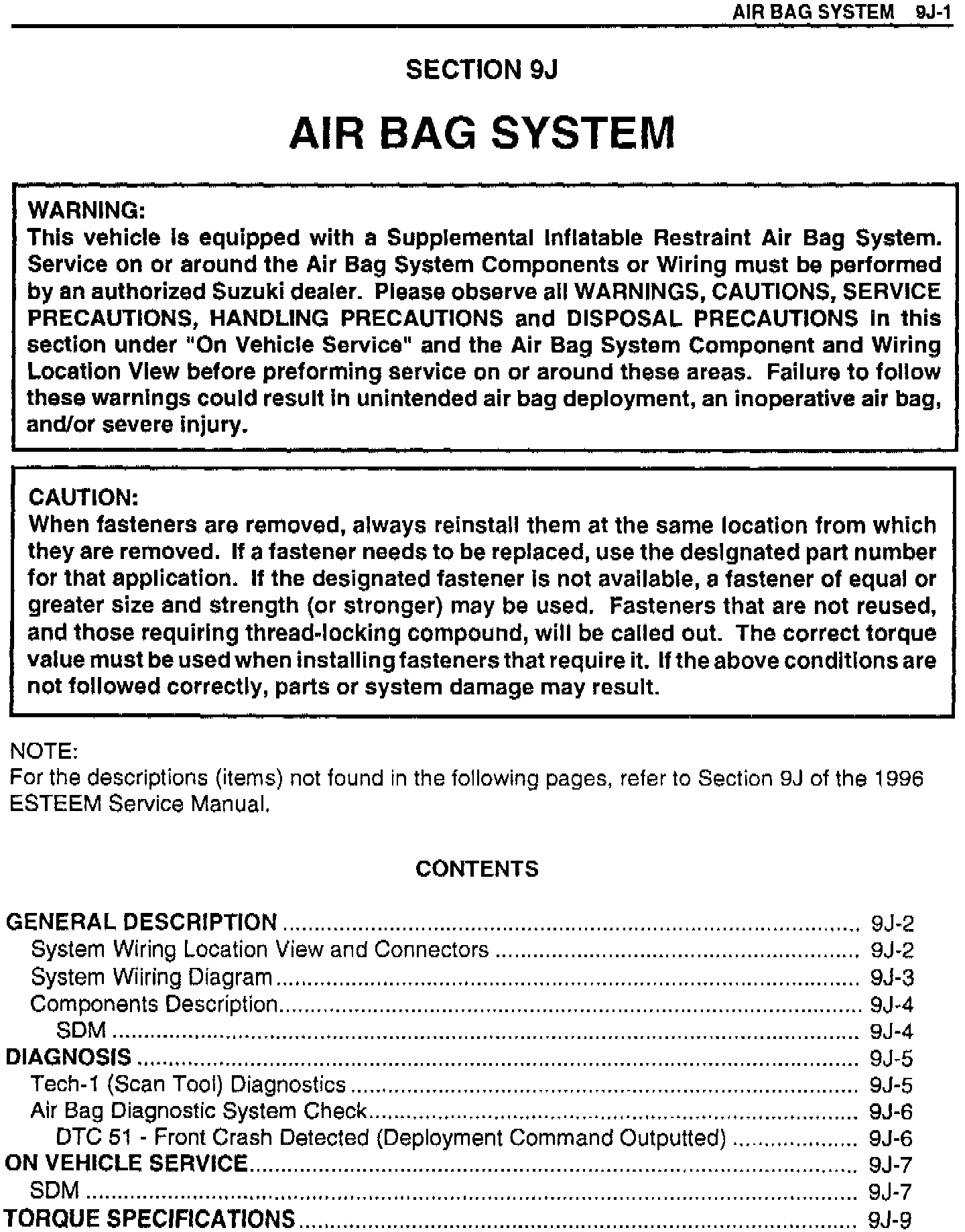

AIR BAG SYSTEM 9J-1

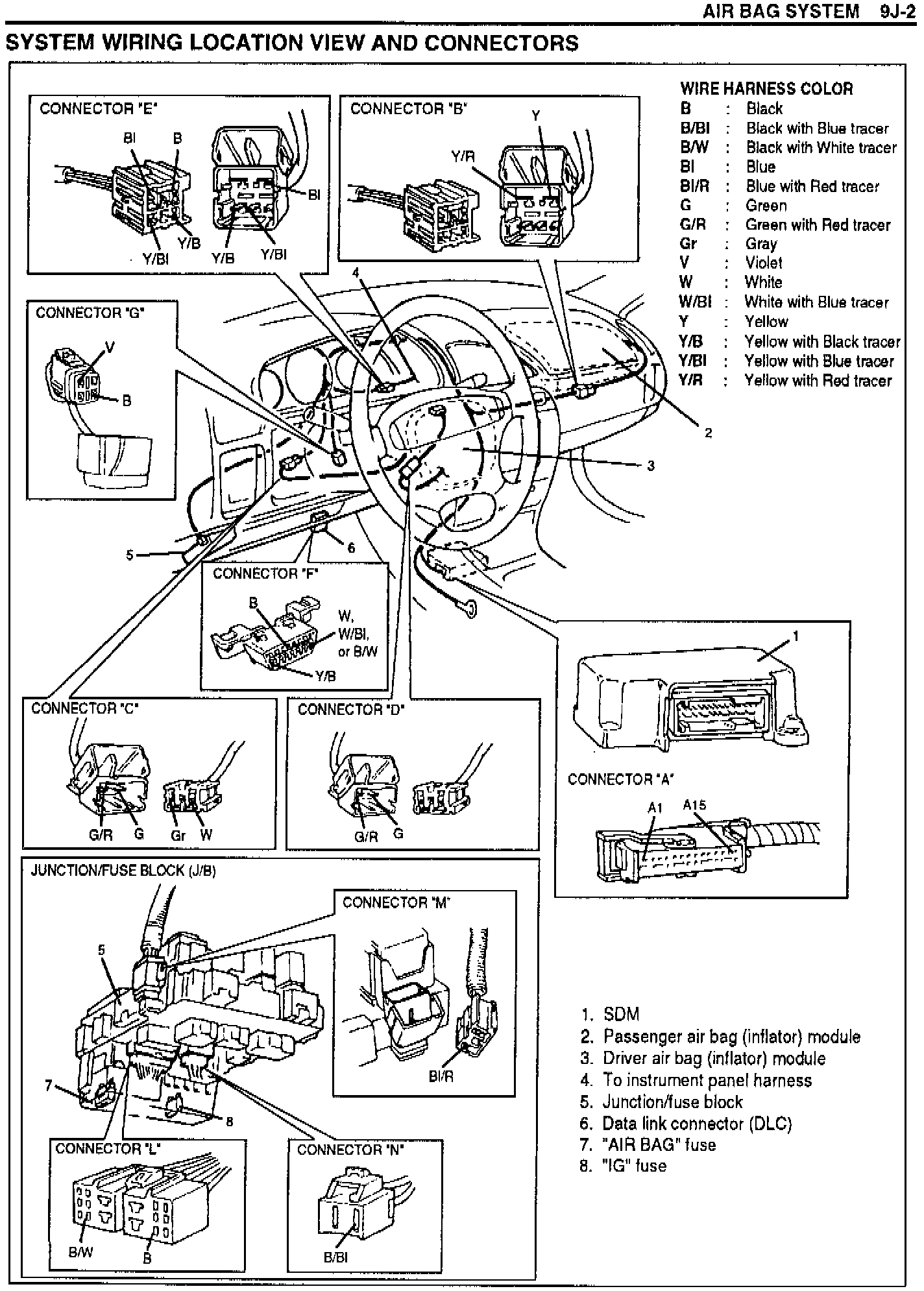

AIR BAG SYSTEM 9J-2





AIR BAG SYSTEM 9J-3

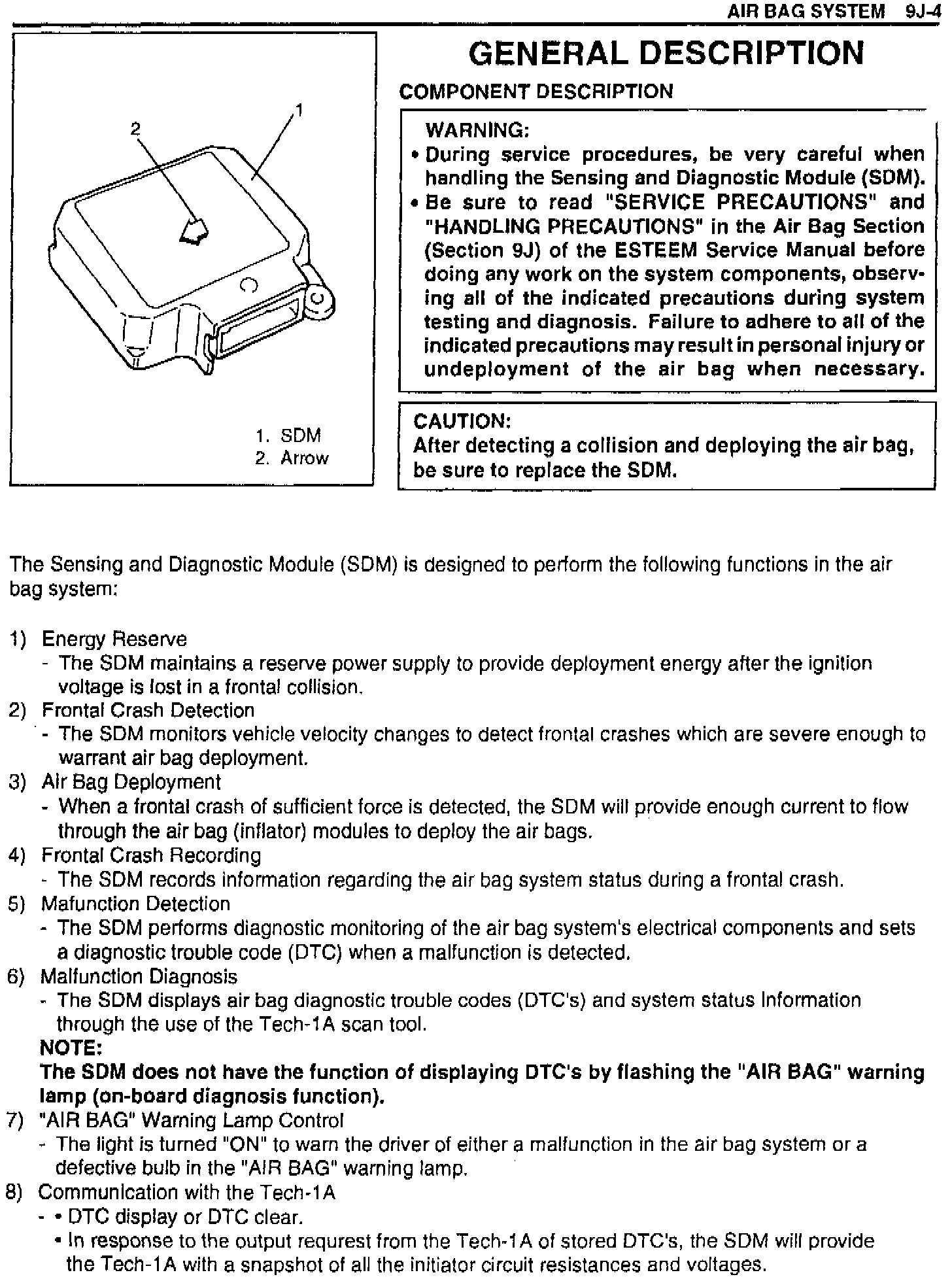

AIR BAG SYSTEM 9J-4

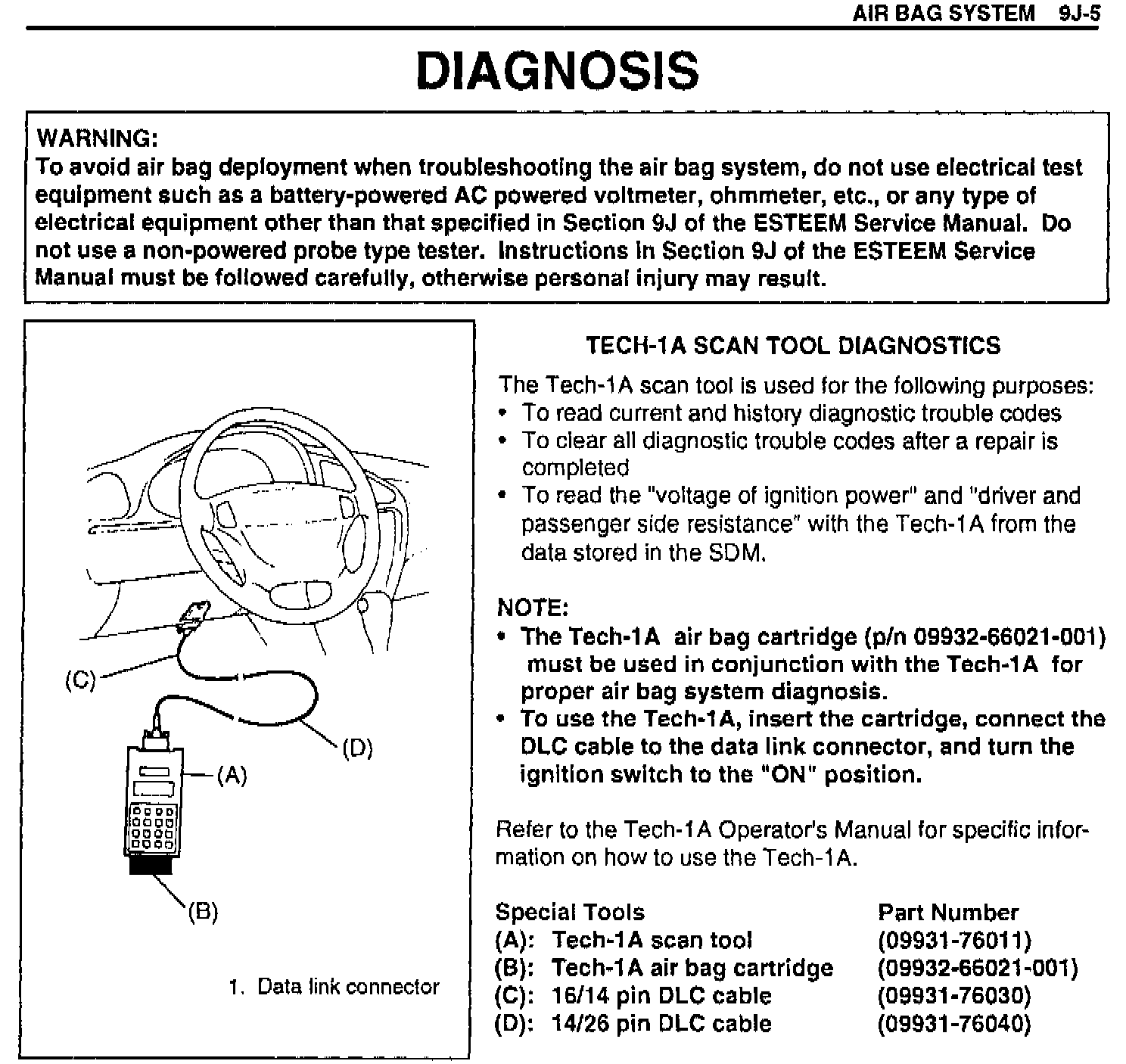

AIR BAG SYSTEM 9J-5

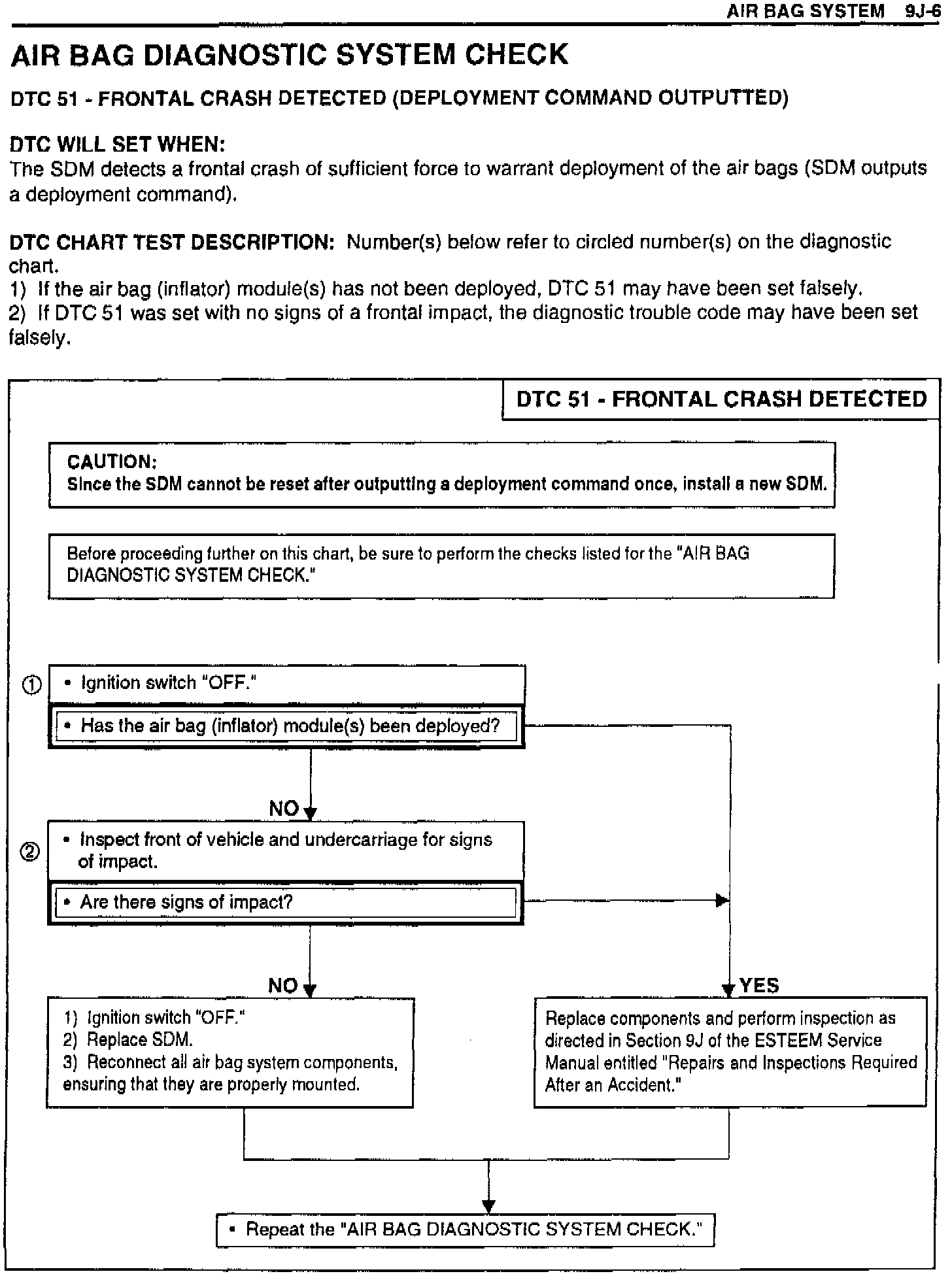

AIR BAG SYSTEM 9J-6

mh%1:

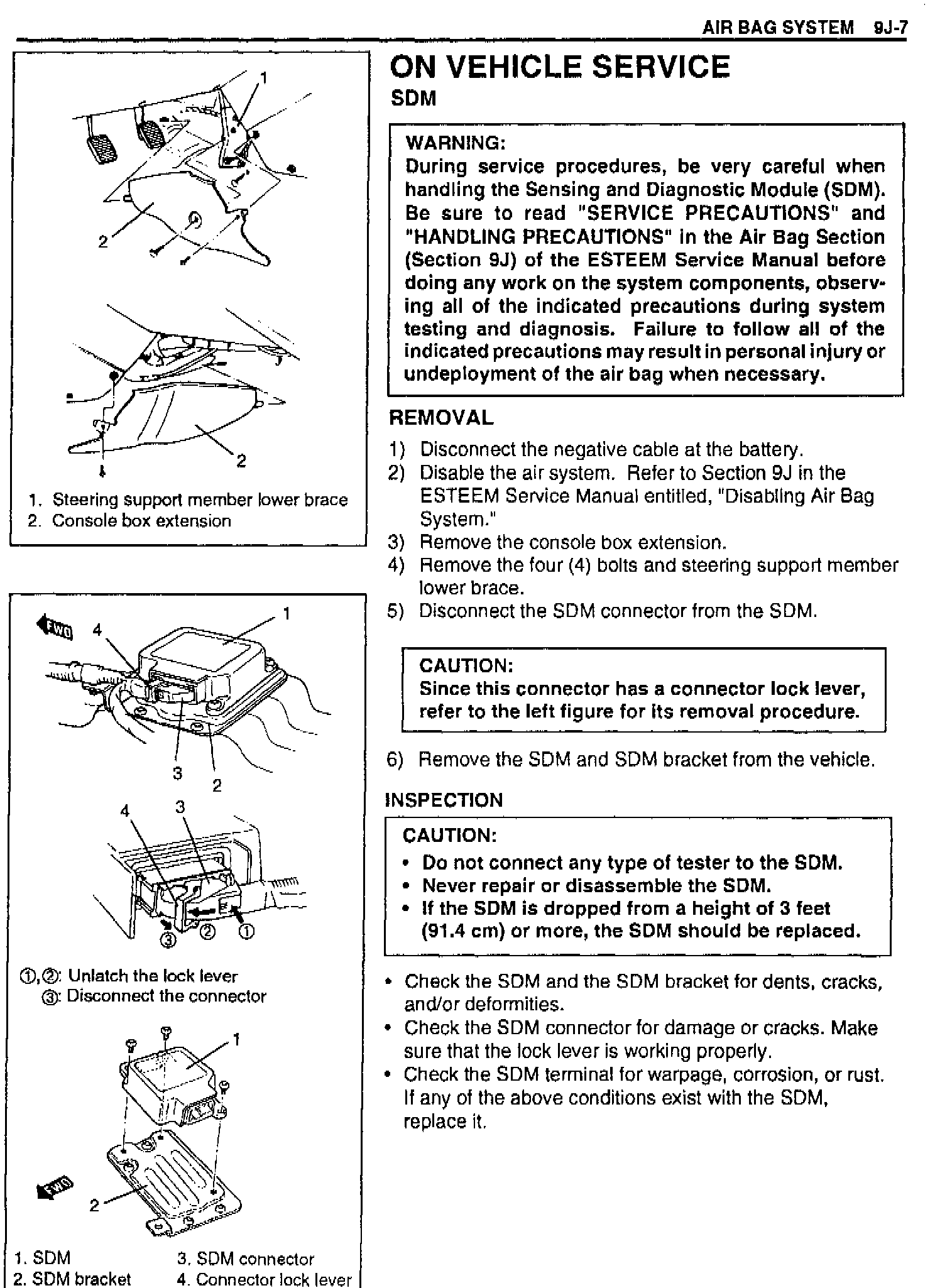

AIR BAG SYSTEM 9J-7

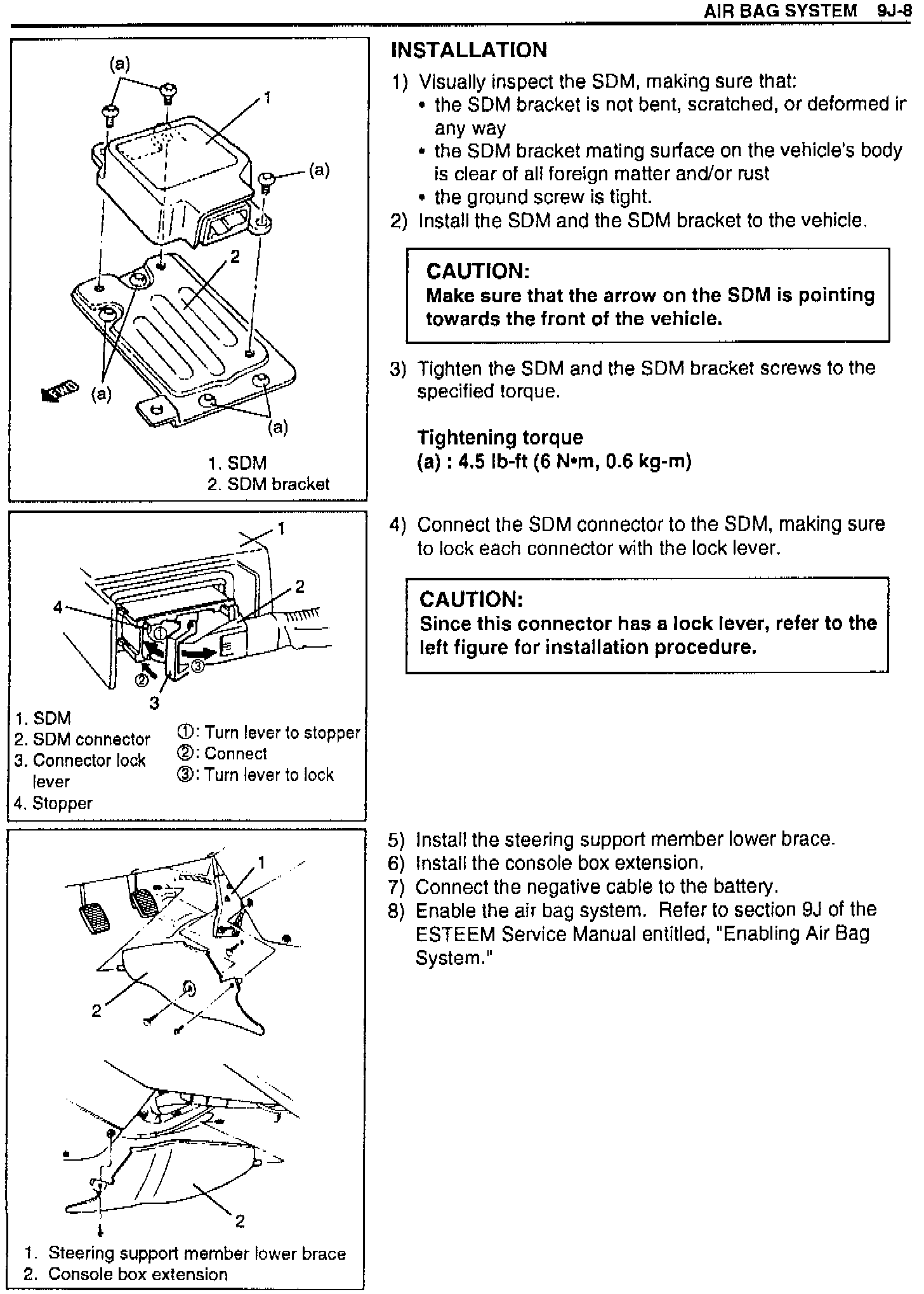

AIR BAG SYSTEM 9J-8

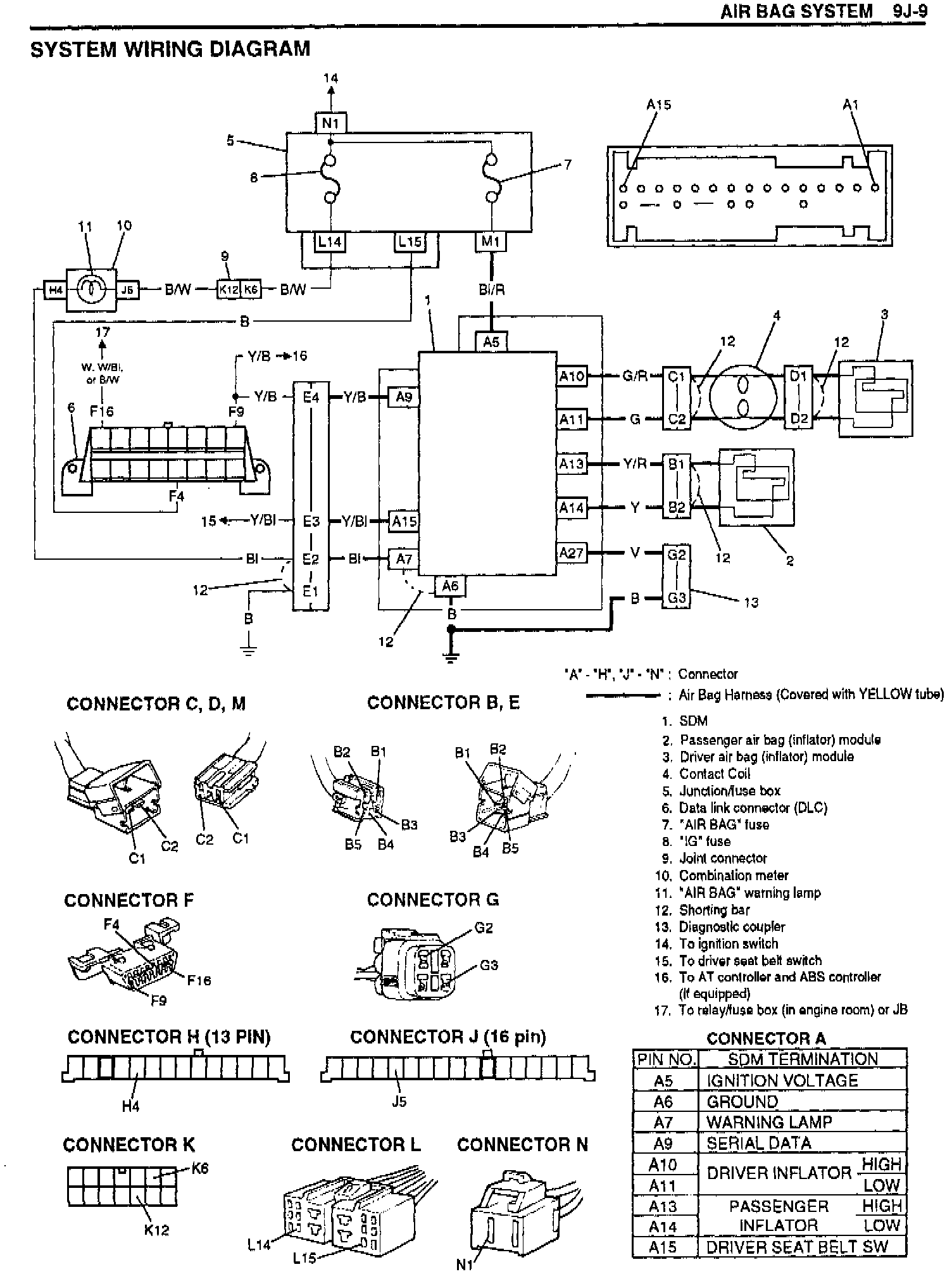

AIR BAG SYSTEM 9J-9
