Brakes - Front Caliper And Brake Pad Modifications
TSB No. TS 5-03 04126Section Title: Steering, Brakes and Suspension
Division: Automotive
Category: Technical
SUBJECT:
MODIFICATION OF FRONT BRAKE CALIPER ASSEMBLY AND BRAKE PADS
MODEL:
ALL
YEAR:
OCTOBER 1995 PRODUCTION AND LATER
CONDITION:
Uneven wear on the brake pads.
CAUSE:
Upper bushing tolerance slightly large.
CORRECTION:
Install updated parts as listed in this bulletin to tighten bushing tolerance.

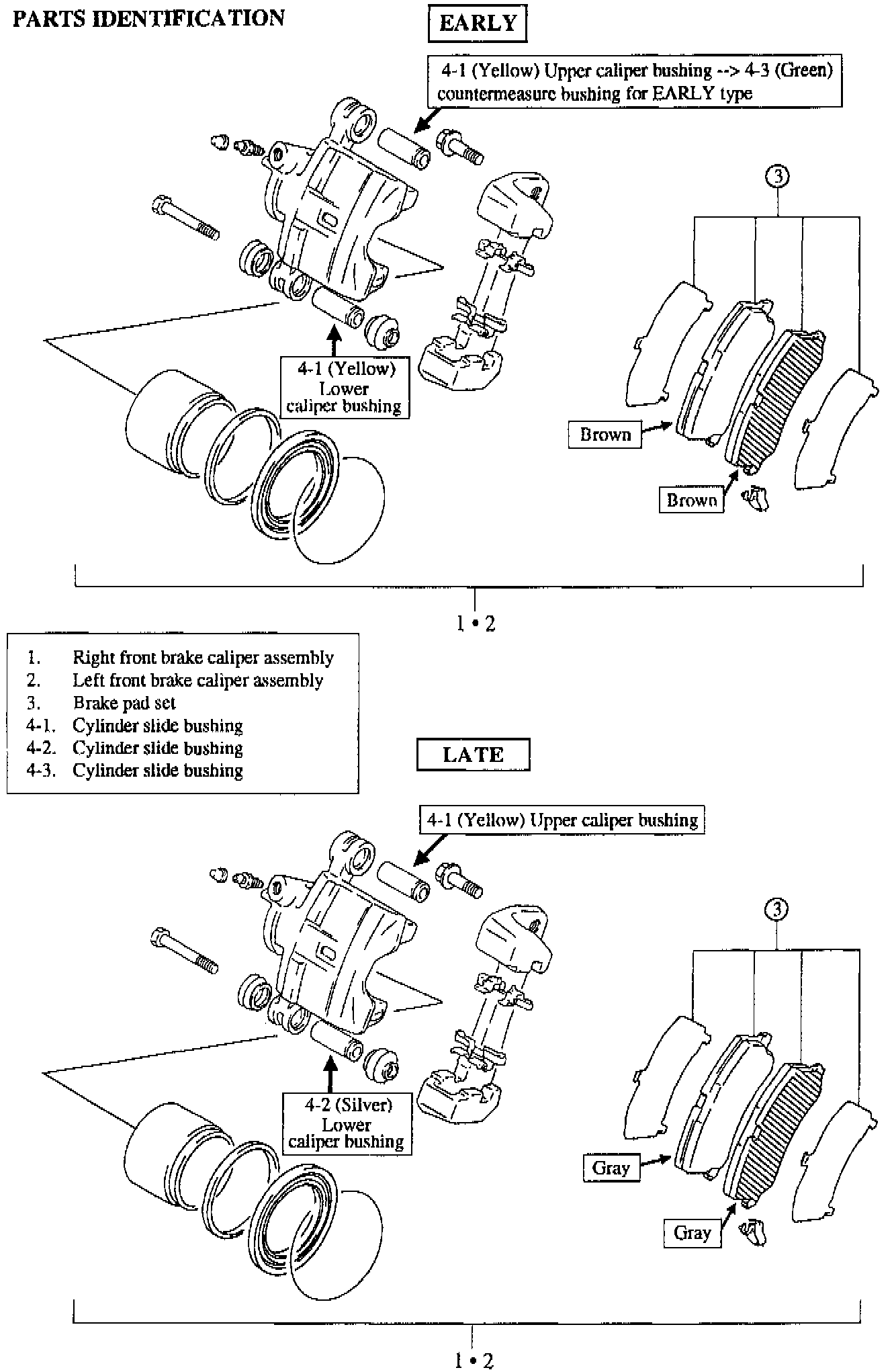

This bulletin is to inform you of the modification of the front brake caliper assembly and brake pads which has been effective since October 1995 production. If you experience abnormal bevelled wear on the brake pads, identify the brake calipers as being either EARLY or LATE style by checking the color of the lower caliper bushing:
^ If the color of the lower caliper bushing is Yellow, the vehicle has the EARLY style calipers. Replace the upper caliper bushing with the Green caliper bushing (p/n 55191-60G00) and install the updated Gray brake pads (p/n 558(X)-61G70).
^ If the color of the lower caliper bushing is Silver, the vehicle has the LATE style calipers. The upper caliper bushing does NOT have to be replaced. If, however, the brake pads need to be replaced, install the updated Gray brake pads (p/n 55800-61G70).
Please note these updated part numbers in your parts manuals.
EFFECTIVE STARTING VIN
WITH UPDATED PARTS
JS2GB31S_T5102090~

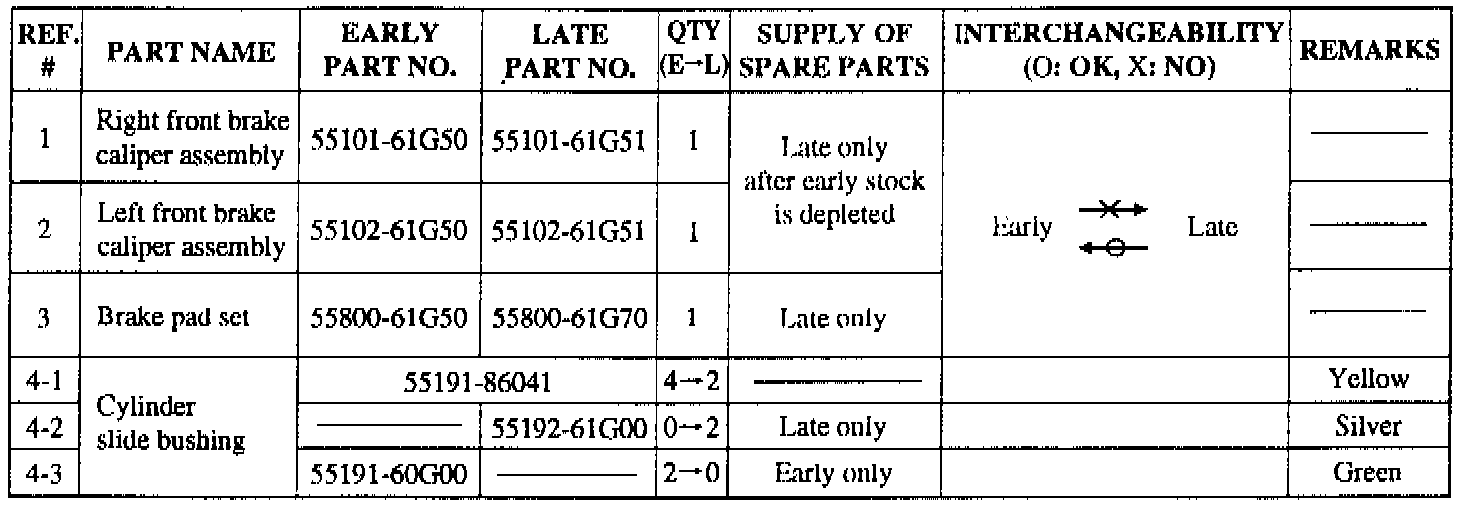

PARTS SUPPLY DATA
