Condenser Fan Motor Relay: Testing and Inspection

Condenser Cooling Fan Relay





Inspection
1) Disconnect negative (-) cable at battery.
2) Disconnect its connector to remove relay out of position.

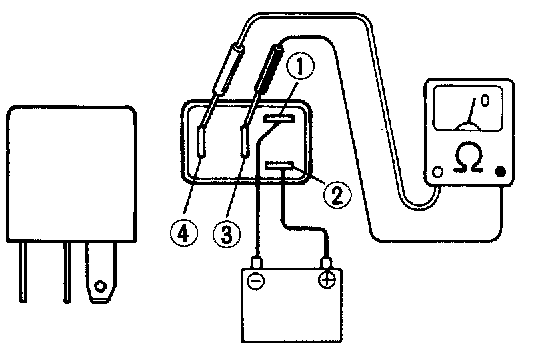

3) Wire as shown to check whether proper continuity is obtained between terminals 3 and 4. If found defective with no continuity, replace relay.
