A/C - Revised Discharge Nut Torque Specification
DIVISION: AutomotiveCATEGORY: Technical
TSB NO.: TS7-08 01045
SECTION TITLE: Miscellaneous
SUBJECT:
1995 SUZUKI SWIFT A/C CORRECTED TORQUE SPECIFICATION
MODEL:
ALL
YEAR:
1995 SWIFT A/C INSTALLATION MANUAL
CONDITION:
The 1995 Suzuki Swift A/C Installation Manual (P/N 99963-01501-121) indicates an incorrect torque when connecting the discharge hose to the condenser.
AFFECTED A/C KIT:
P/N 95000-50G10.
CAUSE:
N/A
CORRECTION:
Make correction in your Suzuki Swift A/C Installation Manual on page 17.
Page 17

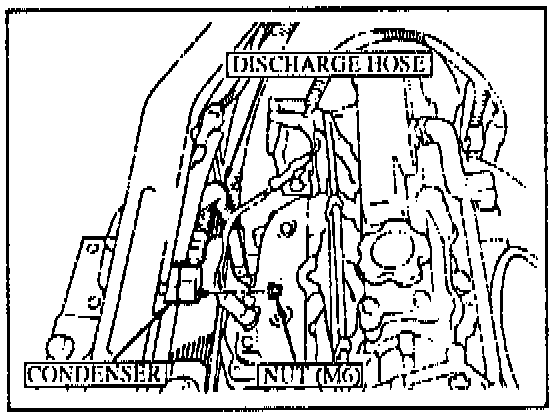

(1) Discharge Hose
(a) Connect the discharge hose to the condenser using a (M6) nut.
Tightening Torque:
Incorrect Torque: 9.8 N-m (100 kgf-cm, 7.2 ft.-lbf)
Correct Torque: 5.4 N-m (55 kgf-cm, 4.0 ft-lbf)
Information and diagrams compliments of Nippondenso.
