Suzuki
>>
1995
>>
Swift L4-1298cc 1.3L SOHC 3 TBI 8V
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Hatchback
Hatchback

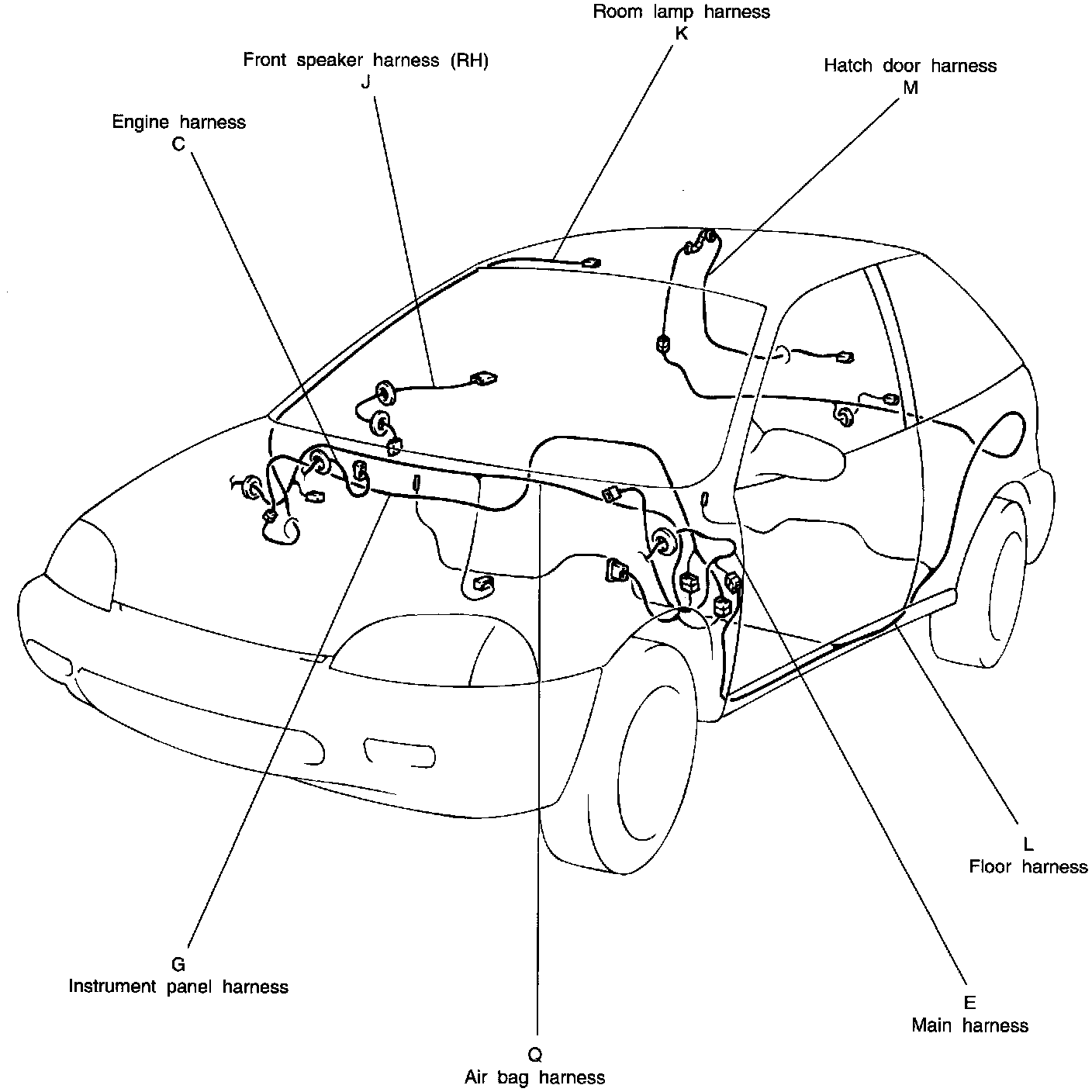

Harness Routing Diagram:

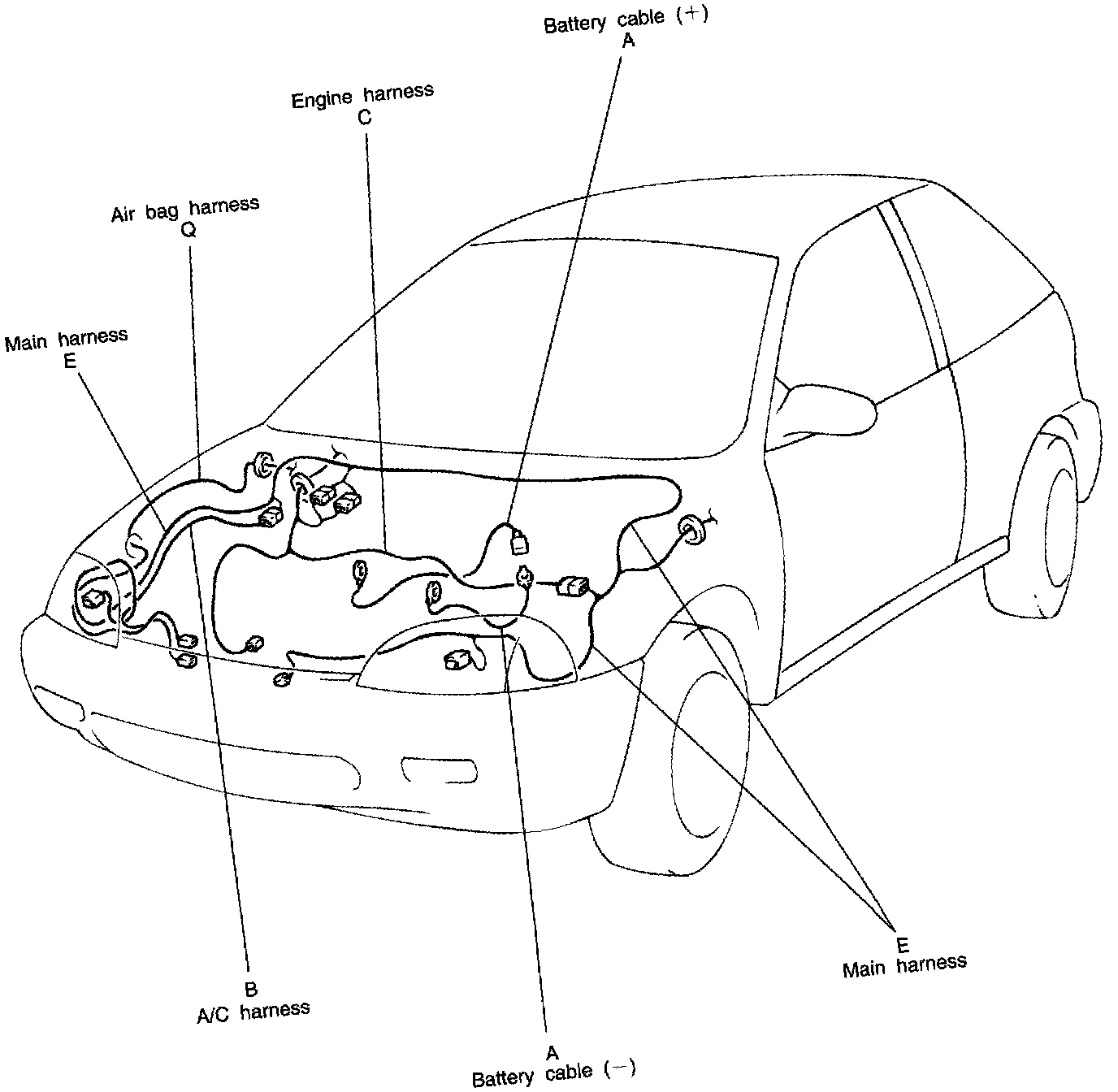

Harness Routing Diagram:
