Engine Control System

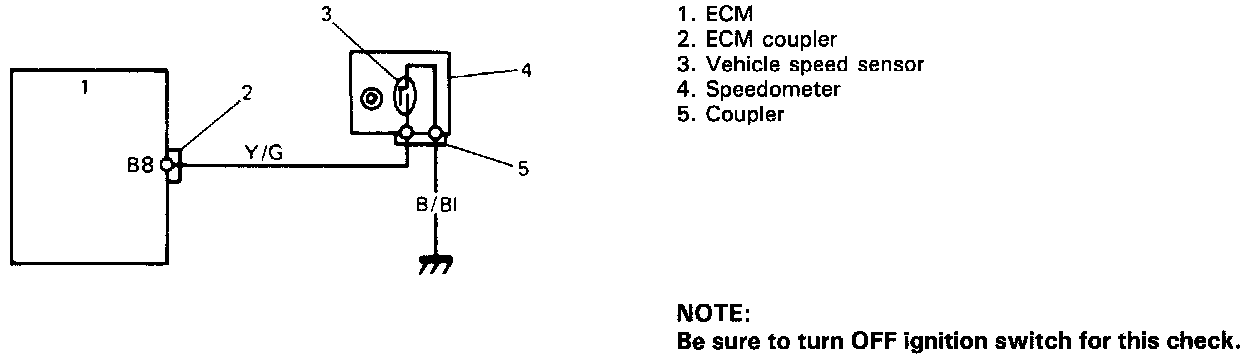

Vehicle Speed Sensor Circuit Diagram:

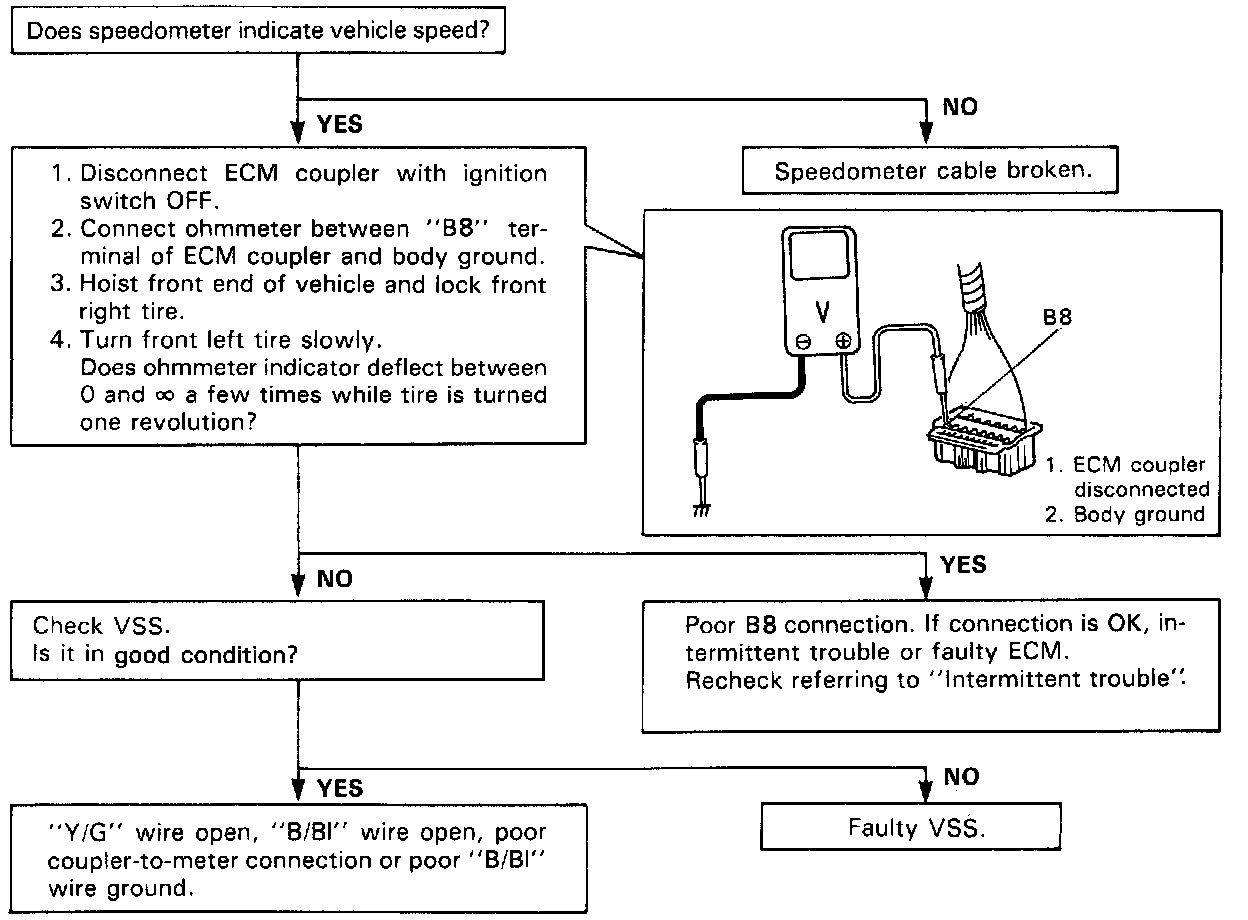

Trouble Code 24 Flow Chart:

Speed sensor signal not inputted although fuel is kept cut at lower than 4000 r/min for longer than 4 seconds.

NOTE: Upon completion of inspection and repair work, perform FINAL CHECK to confirm that the trouble has been corrected.

Final Check Procedure Flow Chart:

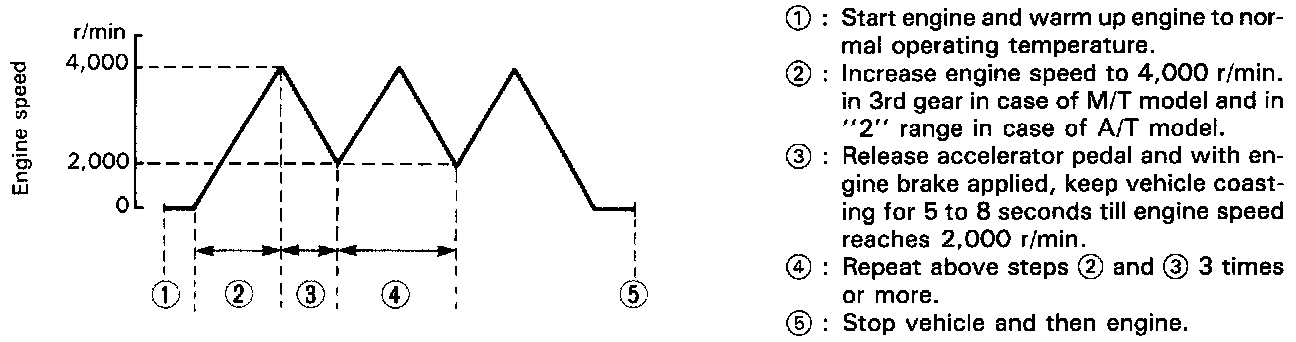

Final Driving Test Condition For Trouble Code 24:

FINAL CHECK
Upon completion of inspection and repair work related to the above diagnostic trouble code, perform the final check as described in the images above.

WARNING:
- When performing a road test, select a place where there is no traffic or possibility of a traffic accident and be very careful during testing to avoid occurrence of an accident.

- Road test should be carried out with 2 persons, a driver and a tester, on a level road.
