Throttle Valve Cable/Linkage: Service and Repair

1. Remove cable cover, then disconnect oil pressure control cable from accelerator cable.
2. Drain transaxle fluid into appropriate container and remove oil pan.

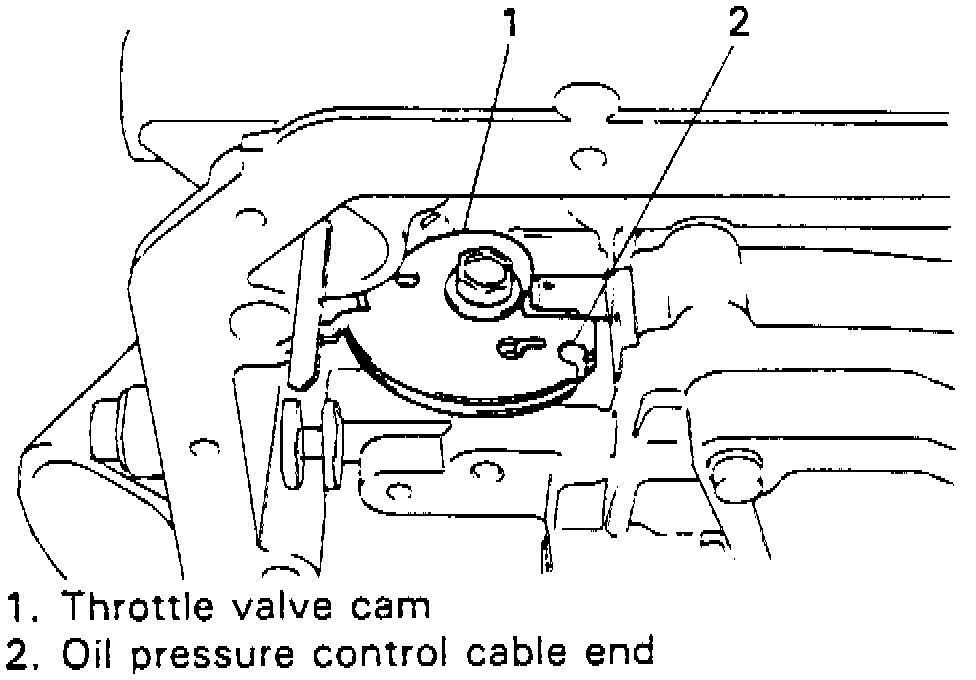

Fig. 5 Oil Pressure Control Cable Replacement:

3. Disconnect oil pressure control cable from throttle valve cam, then remove cable from transaxle case, Fig. 4.
4. Reverse procedure to install.
