Steering Column Lock: Service and Repair

Remove steering wheel as outlined under Steering Column. Steering Column
1. Remove ignition switch attaching screw, then switch.
2. Remove ignition key warning switch attaching screws, then switch.

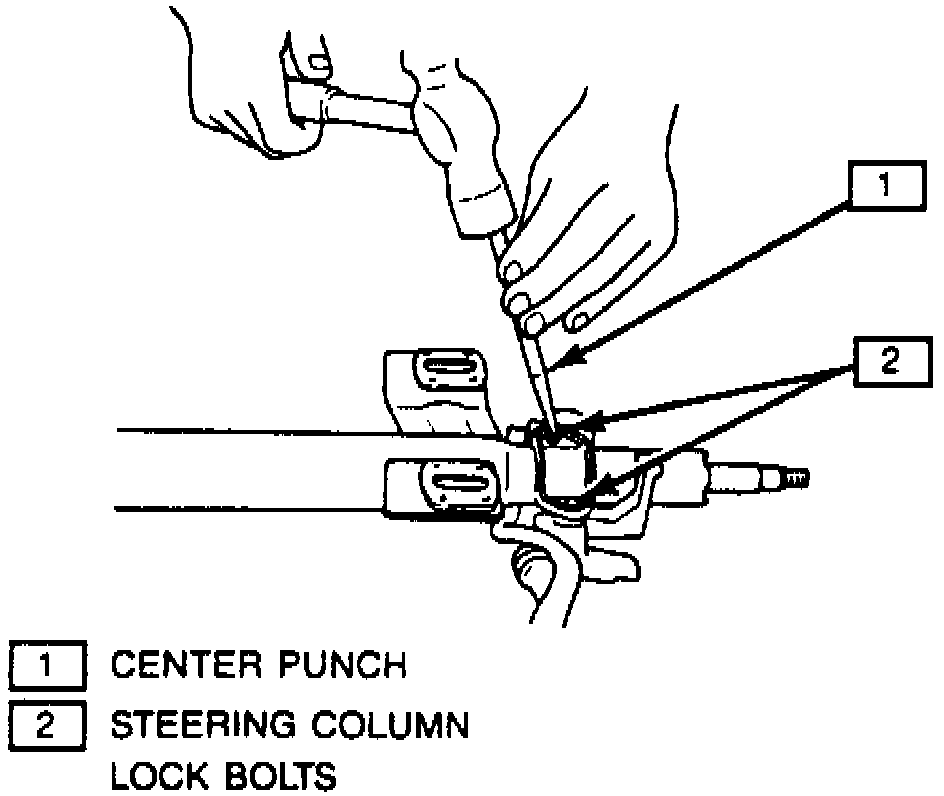

Fig. 79 Steering Column Lock Bolts Removal:

3. Loosen and remove two steering column lock retaining bolts using a center punch, Fig. 15. When using center punch do not damage aluminum parts of lock assembly.
4. Turn ignition key to On or ACC position, then remove lock assembly from steering column.
5. Reverse procedure to install.
