Radiator Cooling Fan Motor Relay: Testing and Inspection

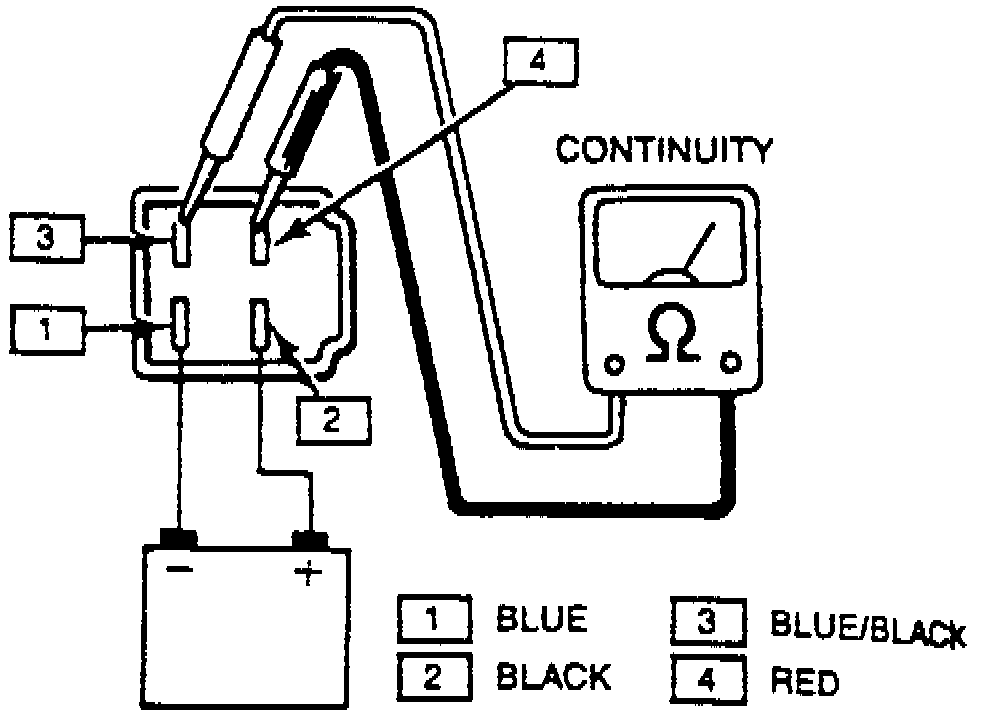

Fig. 4 Compressor/Cooling Fan Relay Inspection:

1. Using suitable ohmmeter, connect to relay as shown, Fig. 4.
2. If open continuity is found between terminals 3 and 4, replace relay.
