Brake Shoe: Service and Repair

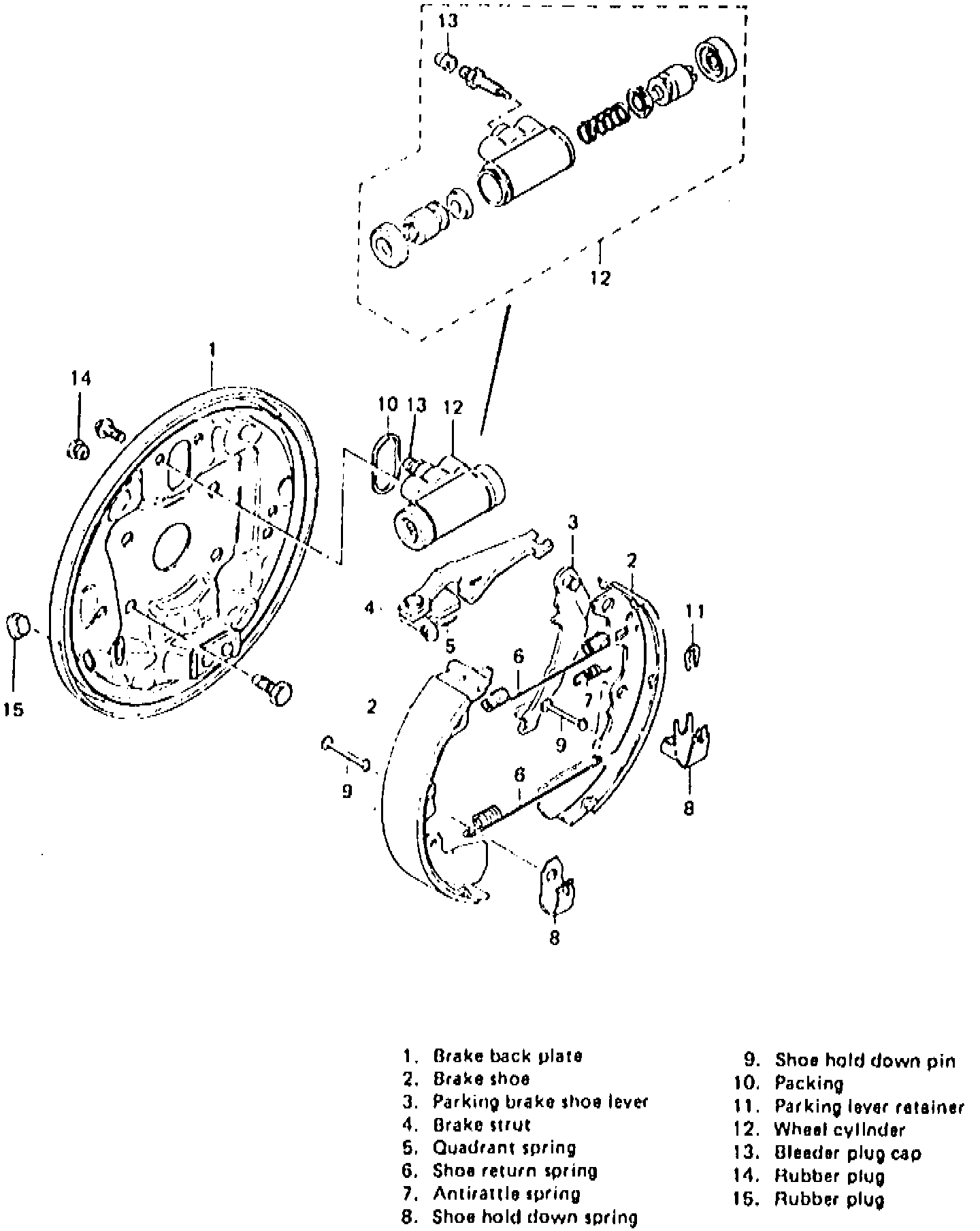

Fig. 10 Exploded View Of Brake Assembly:

Refer to Fig. 10, during replacement procedure.
1. Remove drum as outlined under Brake Drum.
2. Remove shoe hold-down springs, then disconnect parking brake cable from parking brake shoe lever.
3. Remove brake shoe assembly.
4. Remove brake strut rod and spring from brake shoes.
5. Remove parking brake shoe lever from shoe rim.
6. Reverse procedure to install.
