New Model And Service Manual Changes
TSB No. TS 003 10052Section Title: All Models
Division: Automotive
Category: Technical
SUBJECT: NEW MODEL CHANGES
MODEL: ALL
YEAR: 1993
CONDITION:
CHANGES IN VEHICLES AND SERVICE MANUALS
CAUSE: FACTORY MODIFICATIONS
CORRECTION:
NOTE CHANGES FOR FUTURE REFERENCE
This bulletin is to inform you of the updates in the 1993 Suzuki vehicles and Service Manuals.
SAMURAI
* Key cylinder changed from a 6-digit (92) to 8-digit (93).
SIDEKICK - 2 & 4 DOOR MODELS
* A new layout style in the Service Manual
* Emission control part names have been renamed to meet SAE standards
* 2 door: - JS model is 2 wheel drive

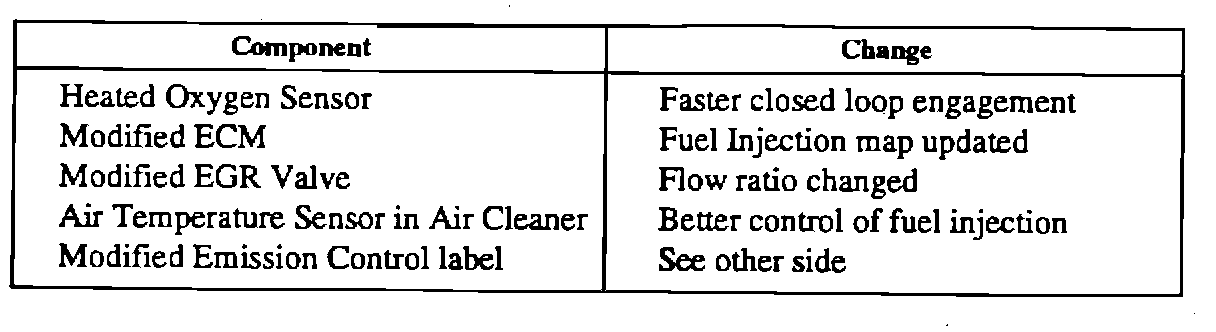

* 4 door: -California model - Modifications in the emission system to meet the requirements for the California Air Resources Board (CARB).

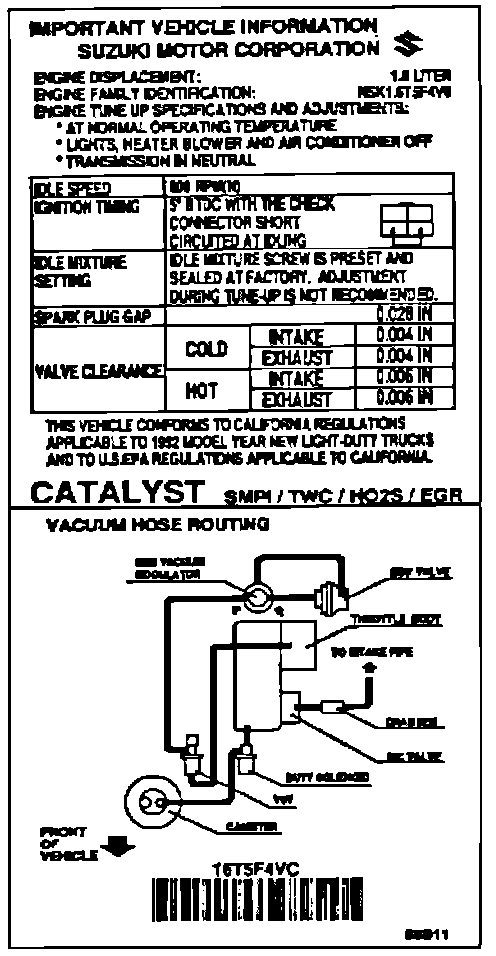

1992 Sidekick 4-door Emissions Label

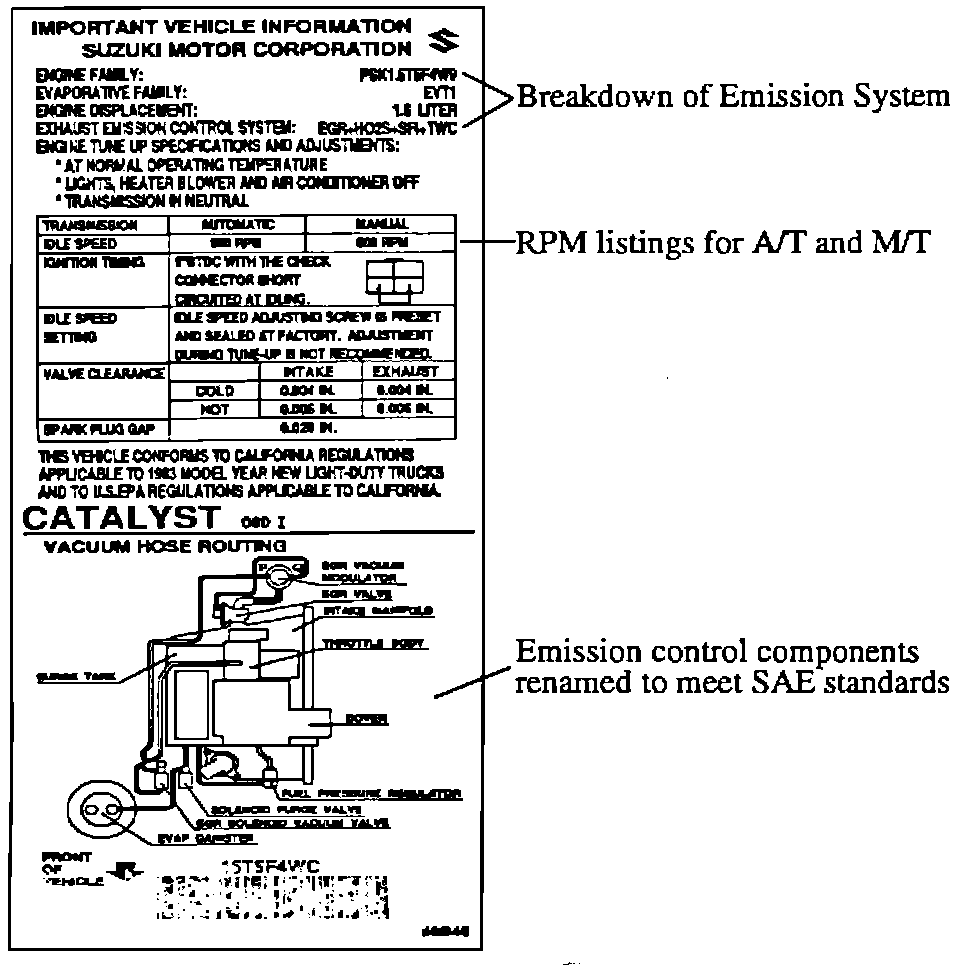

1993 Sidekick 4-door Emissions Label

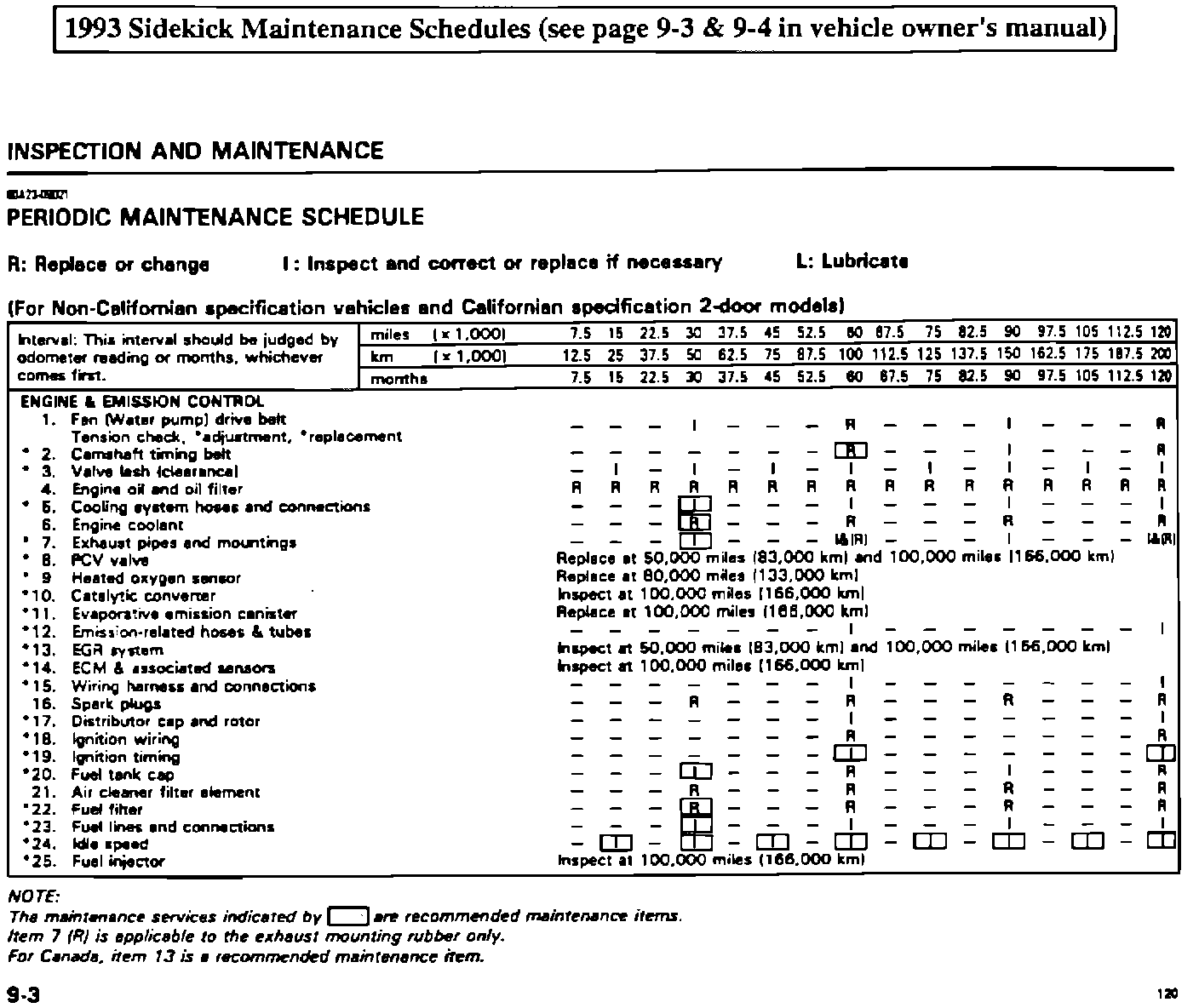

* Changes in the periodic maintenance scheduling,

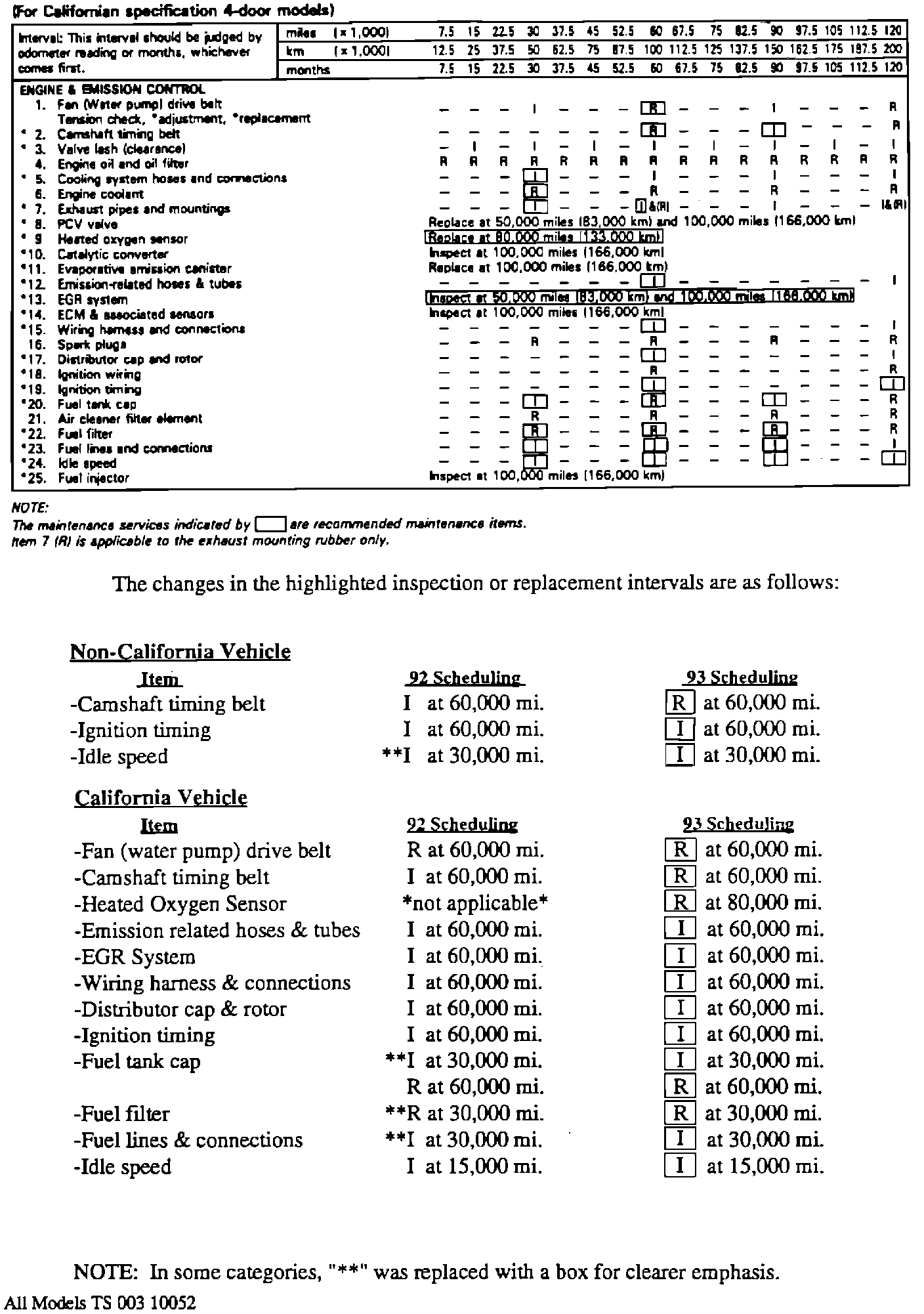

1) The maintenance schedule has been highlighted to show emphasis to emission related components. The highlighted intervals that are enclosed in a box should be inspected and/or replaced to maintain proper function of the vehicle's emission system. These changes were made for compliance with the California Air Resources Board (CARB).
SWIFT - ALL MODELS
* A new layout style in the Service Manual
* Emission control part names have been renamed to meet SAE standards
* Automatic door locks engage when vehicle speed reaches 5.7 - 9.3 mph. (For more information, see page 8-43 in the 1993 Service Manual).

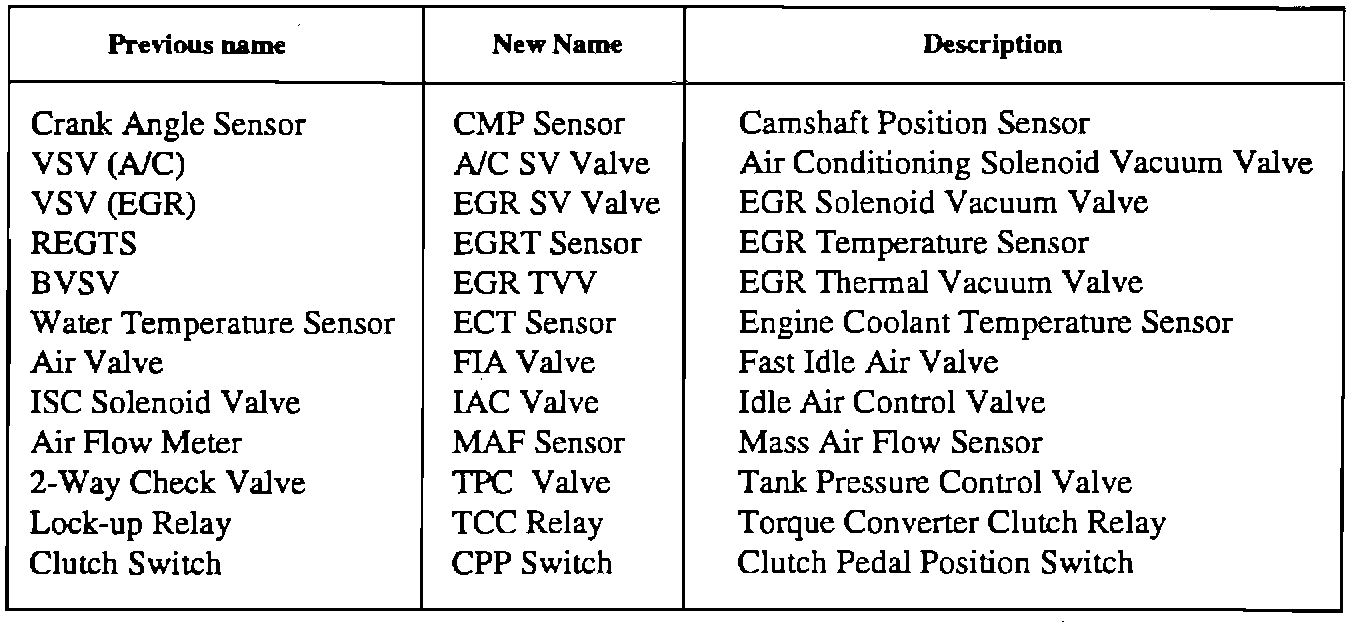

Emission Control Components The components have been renamed in the service manuals to meet SAE standards:
