Cooling System And Radiator Cap Adapter

TSB No. TS 004 12073(R)
Section Title: All Models

Division: Automotive
Category: Technical

SUBJECT:
COOLING SYSTEM AND RADIATOR CAP ADAPTER TEST SET

MODEL: ALL

YEAR:
ADAPTER SET IS APPLICABLE TO ALL MODELS AND YEARS

CONDITION:
Domestic radiator pressure tester service products are too large to fit.

CAUSE:
Suzuki radiator cap and radiator filler neck is smaller.

CORRECTION:
Use adapter set for all Suzuki applications.

REVISION:
Adapter set is applicable to all Suzuki models and years EXCEPT 1992 and later 16 valve 4-door Sidekicks with Nippondenso Radiators & Caps.

A cooling system and radiator cap adapter set that will fit most Suzuki vehicle is available through Kent Moore Tools. This tool is a special size, fitting most late model Japanese vehicles. If you are in need of this tool to properly complete servicing on a Suzuki vehicle, contact Kent Moore Tools, Roseville, Michigan toll free at 1-800-345-2233 OR 1-313-774-9500. The tool kit number is J33984-A.

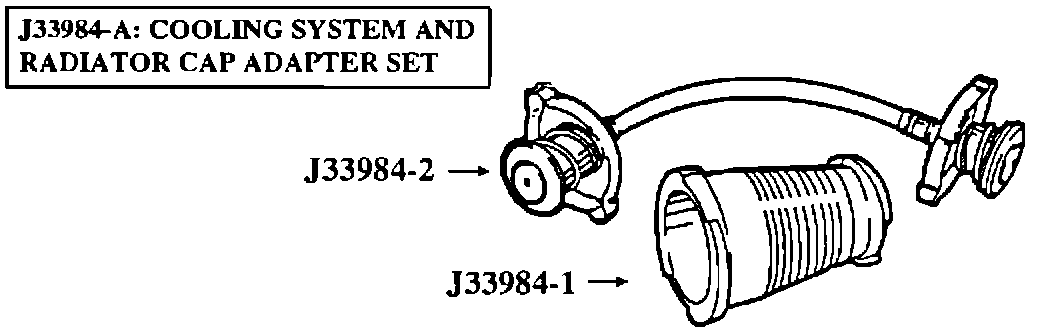

J33984-A: COOLING SYSTEM AND RADIATOR CAP ADAPTER SET

For the 1992 and later 4-door Sidekick 1.6l 16 valve engine with a Nippondenso (ND) Radiator/Cap, two (2) new adaptors must be used. These adaptors may be obtained through your local Stant tool distributor (Snap-On, MATCO, etc.) under the following part numbers:

Radiator Neck Adapter: AST FZ-38
Radiator Cap Adapter: AST FZ-39
