Fuel Injector Resistor: Testing and Inspection
Fuel Injector Resistor:

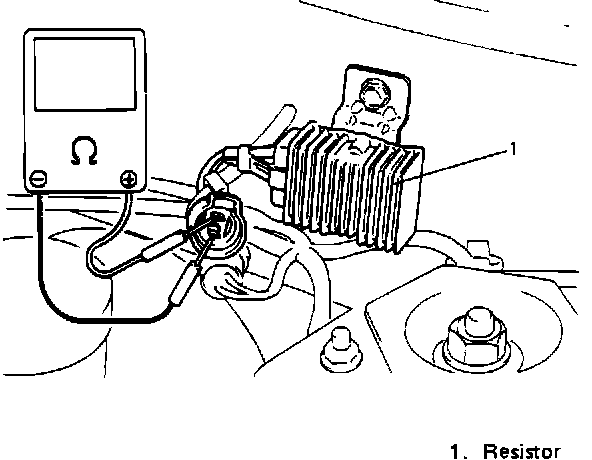

1. With ignition switch OFF, disconnect resistor coupler.
2. Check resistor for resistance.
RESISTANCE VALUE
1.9 - 2.1 ohms
If check result is not satisfied, replace.
1. With ignition switch OFF, disconnect resistor coupler.
2. Check resistor for resistance.
RESISTANCE VALUE
1.9 - 2.1 ohms
If check result is not satisfied, replace.
