Suzuki
>>
1993
>>
Swift L4-1298cc 1.3L DOHC 3 MFI 16V
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

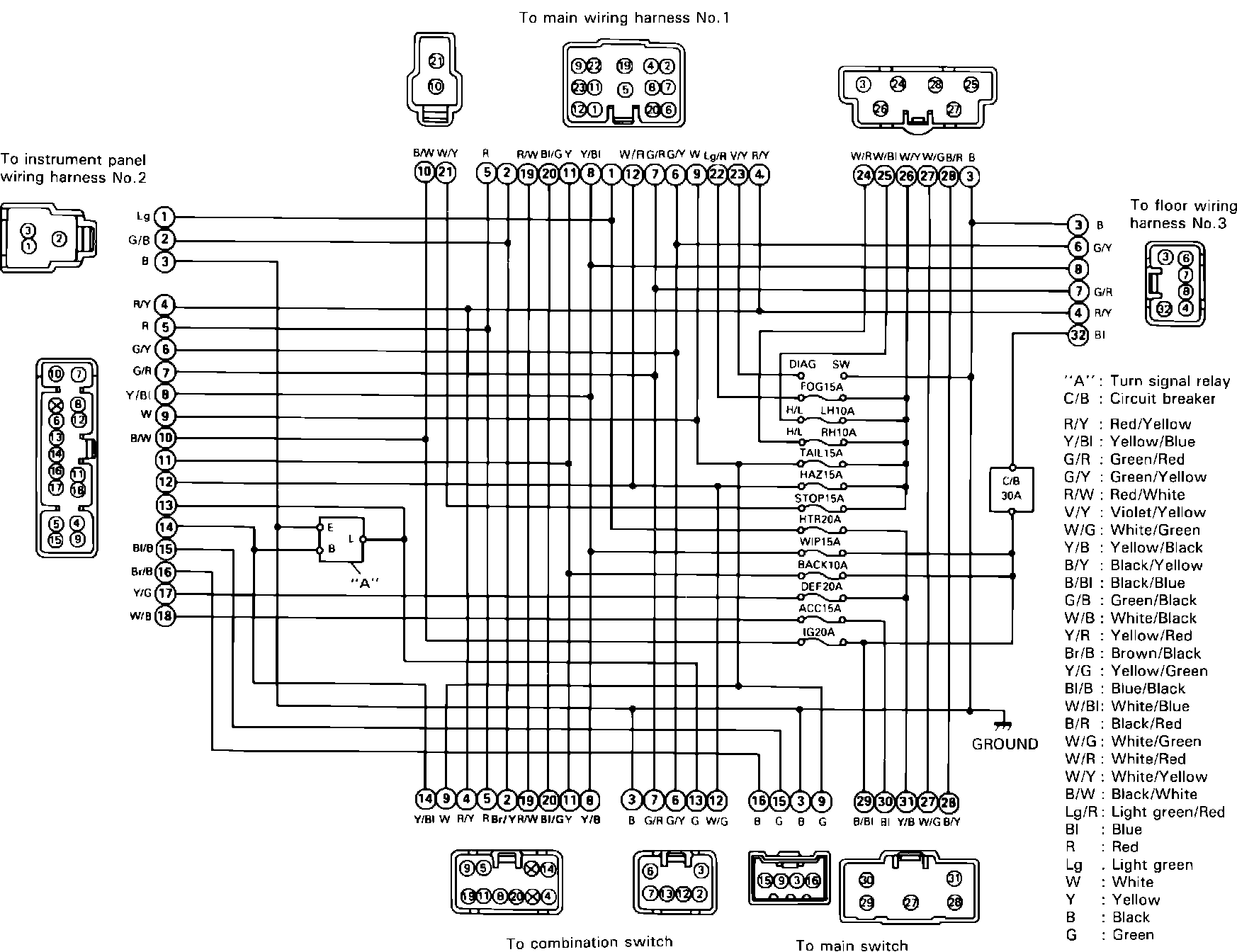

Junction Block/Fuse Block Schematic:
