On-Car Service

Exploded View Of Throttle Body:

Checking Vacuum Passages:

^ Check that throttle valve lever moves smoothly.

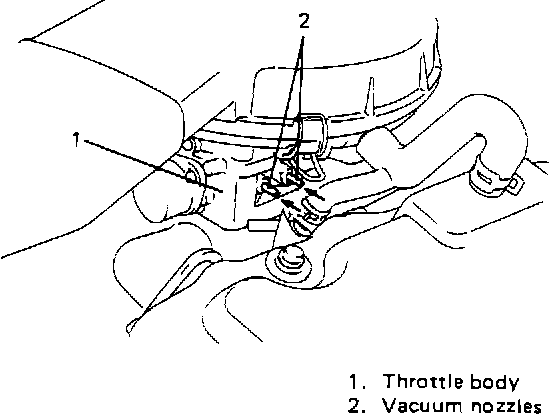

^ Vacuum passage inspection.

With fingers placed against vacuum nozzles (2 or 3 pcs), increase engine speed a little and check that vacuum is applied.
