M/T - 5th Gear Synchronizer Ring Spring Eliminated

9215suzuki01

Division: Automotive

Category: Technical


TSB No.: TS 3-08 01132

Section Title: Drivetrain

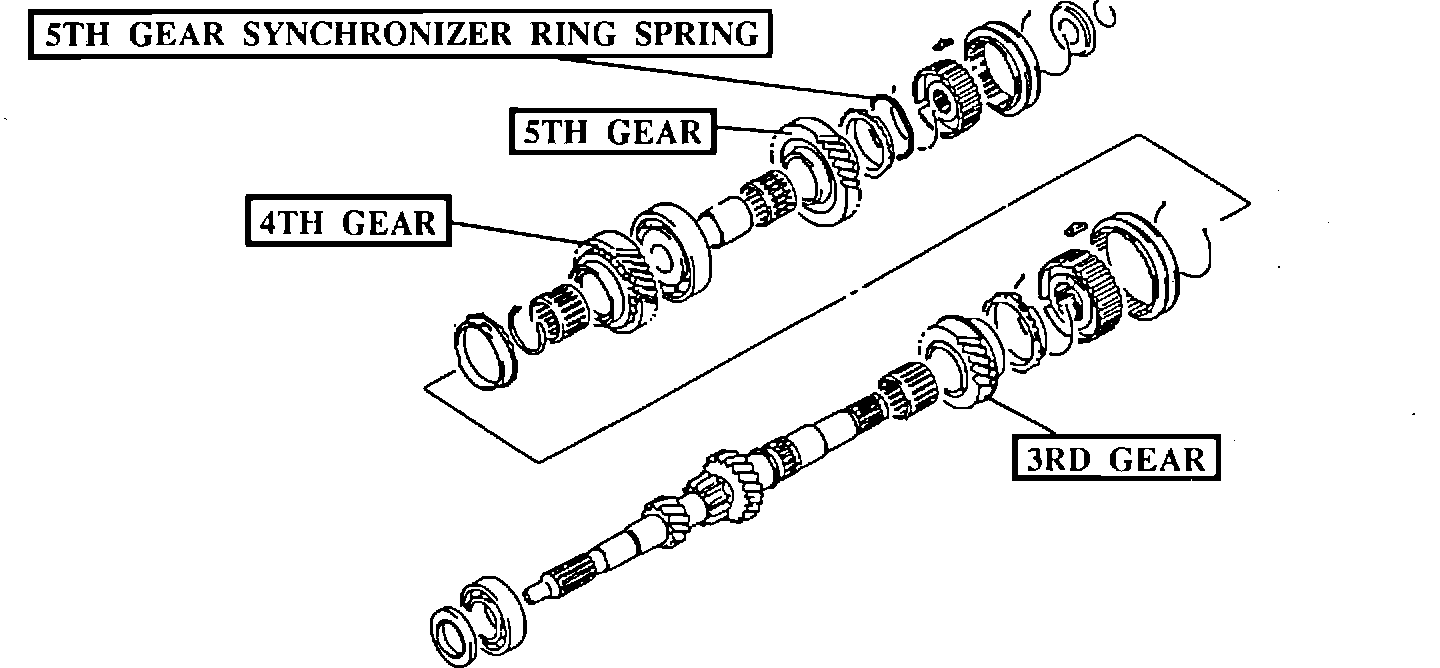

SUBJECT: ELIMINATION OF 5TH GEAR SYNCHRONIZER RING SPRING
MODEL: SWIFT
YEAR: 1991 AND LATER PRODUCTION


AFFECTED VEHICLE IDENTIFICATION NUMBERS


3 DOOR ... JS2AC35S_M5101051 and later

GT ... JS2AC34S_M5100927 and later

4 DOOR ... JS2AE35S_M5101008 and later





ALL OTHER PARTS REMAIN UNCHANGED, THEY CAN BE ASSEMBLED WITH OR WITHOUT THE SYNCHRONIZER SPRING IN PLACE.
