Throttle Valve Cable/Linkage: Service and Repair

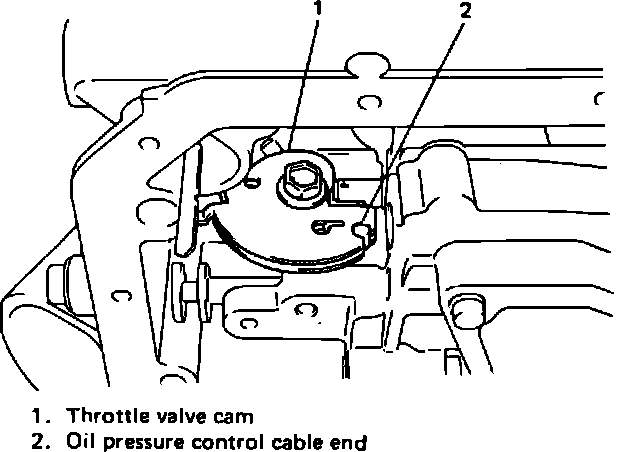

Fig. 27 Removing Oil Pressure Control Cable From Throttle Valve Cam:

1. Remove cable cover, then oil pressure control cable from accelerator cable.
2. Drain transmission fluid, then remove oil pan.
3. Remove cable from throttle valve cam, Fig. 27.
4. Remove cable from transmission case.
5. Reverse procedure to install, adjusting cable as outlined under ADJUSTMENT PROCEDURES/OIL PRESSURE CONTROL CABLE.
