Throttle Valve Cable/Linkage: Adjustments

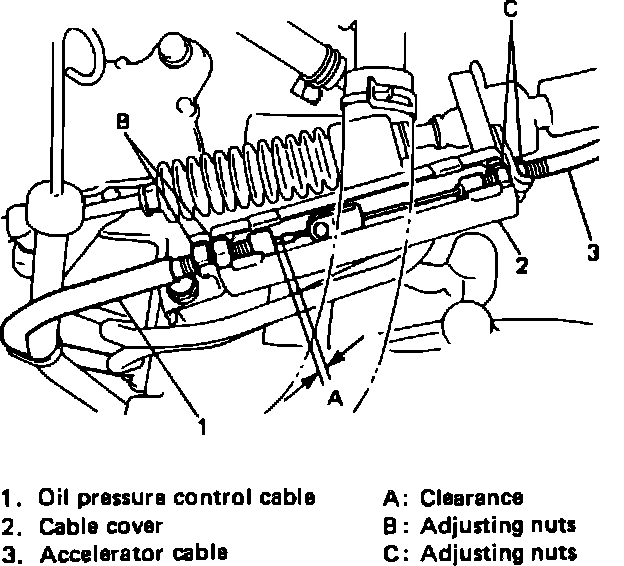

Fig. 19 Adjusting Oil Pressure Control Cable:

1. With cable cover removed, adjust clearance A to 0-.02 inch (0-.05 mm) by turning nuts B, Fig. 19. Nuts C can be used for this adjustment is necessary.
2. Tighten nuts, then install cable cover.
