Shift Cable: Adjustments

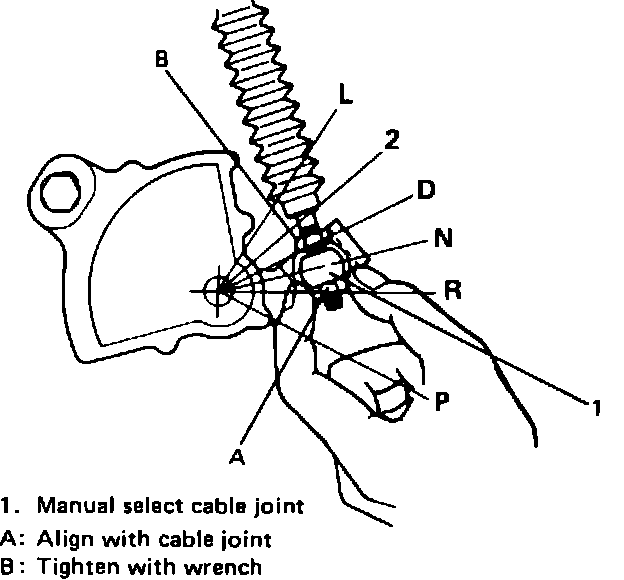

Fig. 11 Adjusting Select Cable:

1. Index selector and manual shift lever to Neutral position, Fig. 11. Ensure nut and cable joint have clearance.
2. Turn nut A by hand until it contacts manual select cable joint, then tighten nut B.
3. Confirm function of all selective ranges.
