Engine Control System

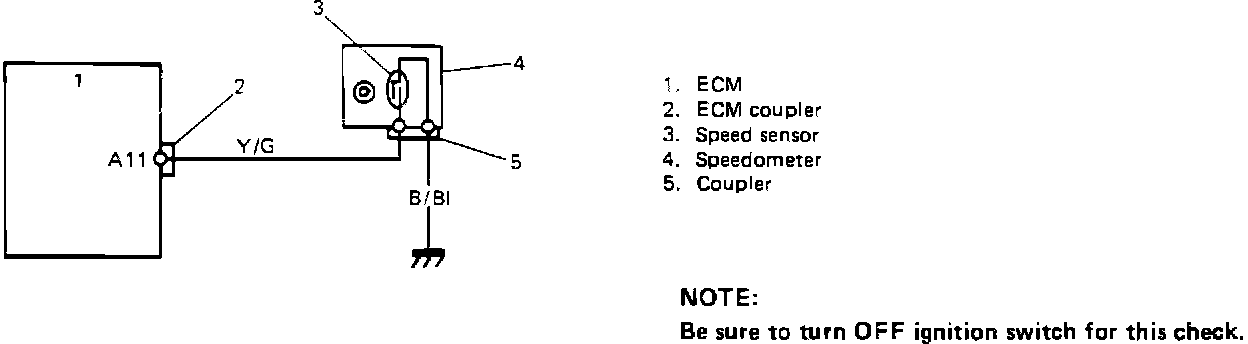

Speed Sensor Circuit:

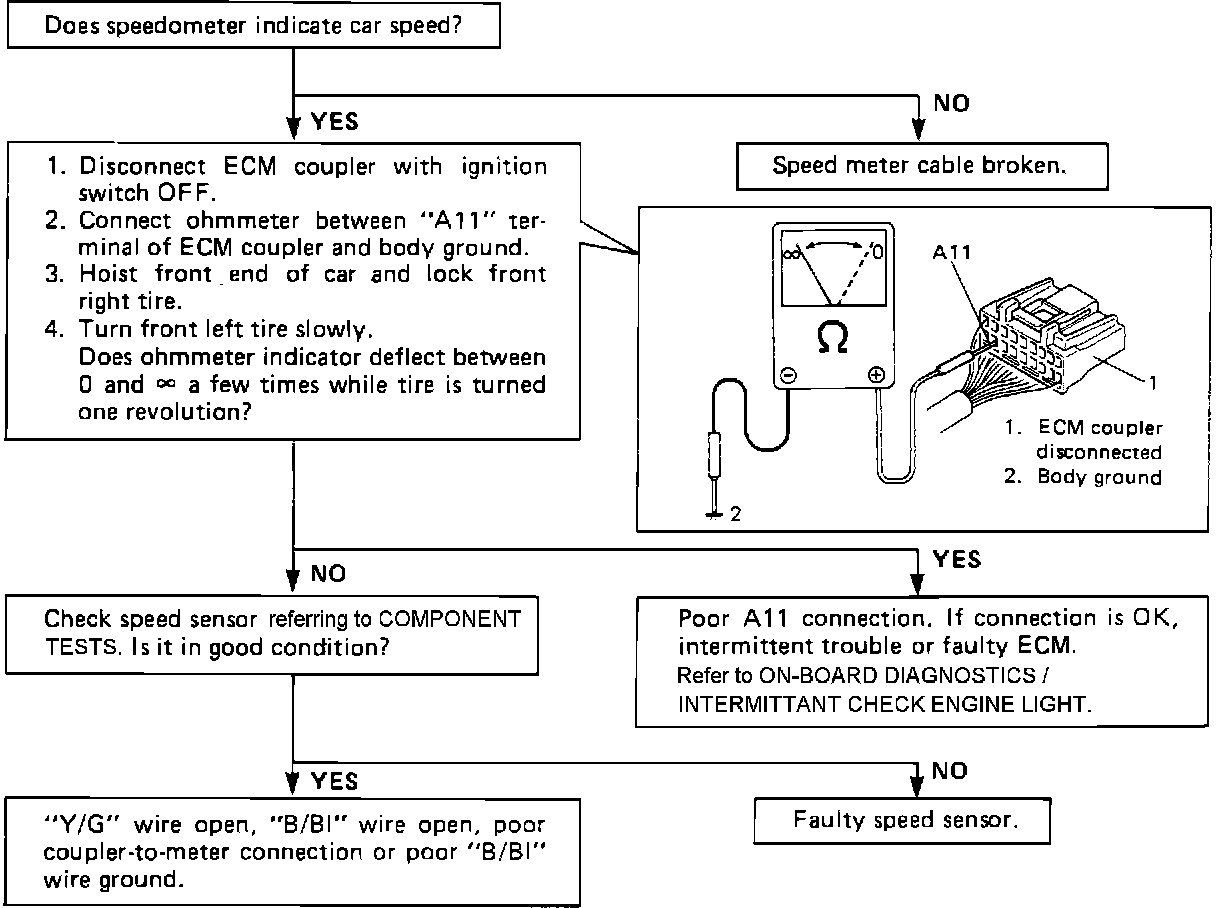

Code 24 Speed Sensor Circuit Diagnostic Chart:





Vehicle speed lower than 1.4 km/h (1 mph) although fuel is kept cut for more than 10 seconds.
