Engine Control System

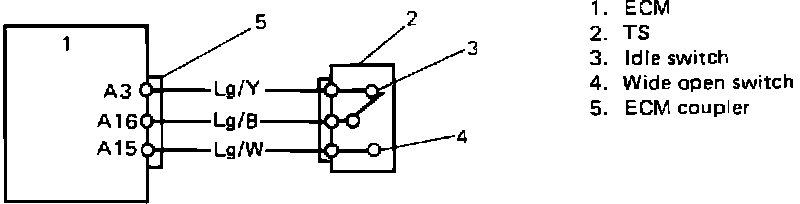

Throttle Switch Circuit:

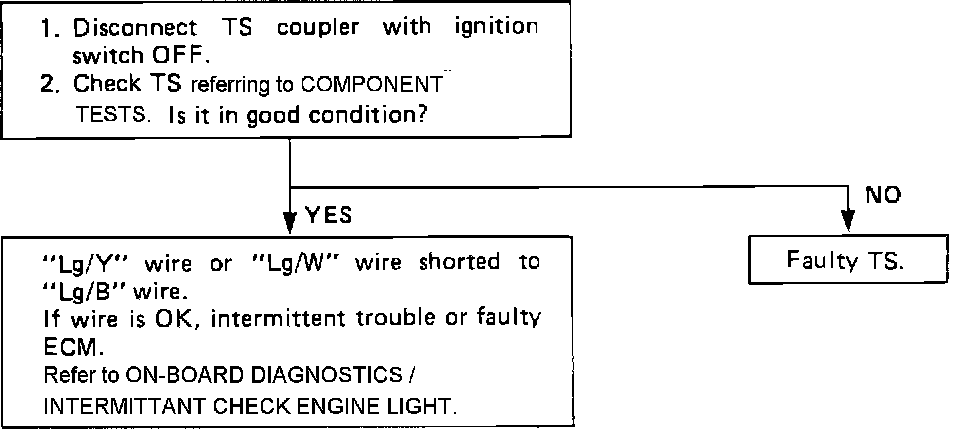

Code 21 Throttle Switch Circuit Diagnostic Chart:

Both idle switch and wide open switch ON.

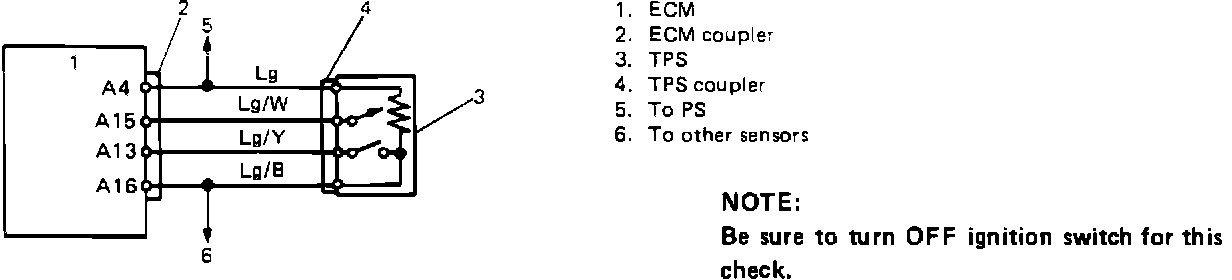

Throttle Position Sensor Circuit:

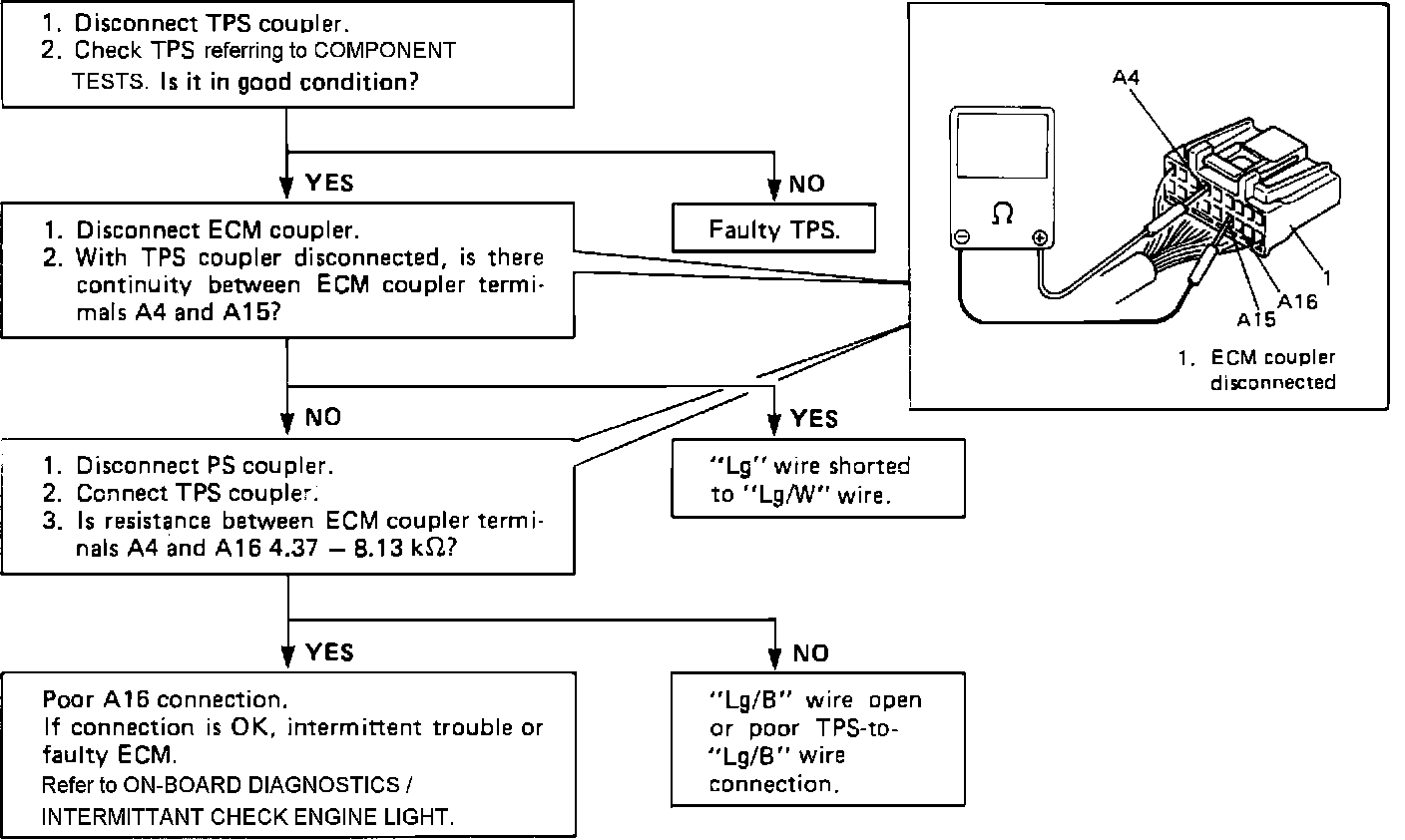

Code 21 Throttle Position Sensor Circuit Diagnostic Chart:

Signal voltage high.
