Compressor Clutch Relay: Testing and Inspection

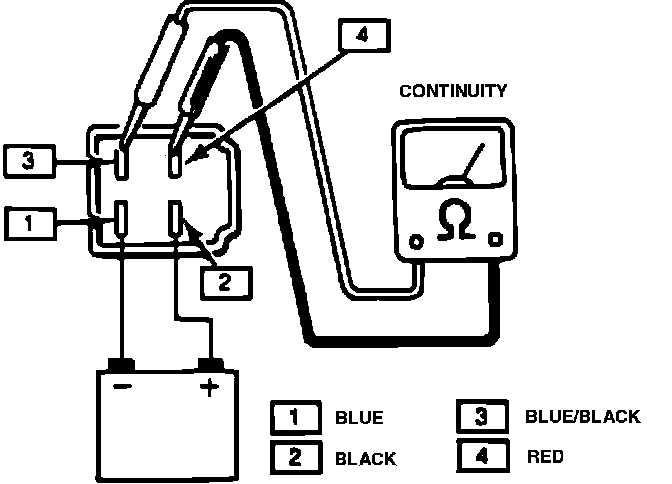

Fig. 5 Testing Compressor/Cooling Fan Relay:

1. Using suitable ohmmeter connect as shown in Fig 5.
2. If open continuity is found between terminals 3 and 4, replace relay.
