Suzuki Truck
>>
2012
>>
Equator 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Parking Brake System
>>
Service and Repair
>>
Removal and Replacement
>>
Exploded View
Exploded View

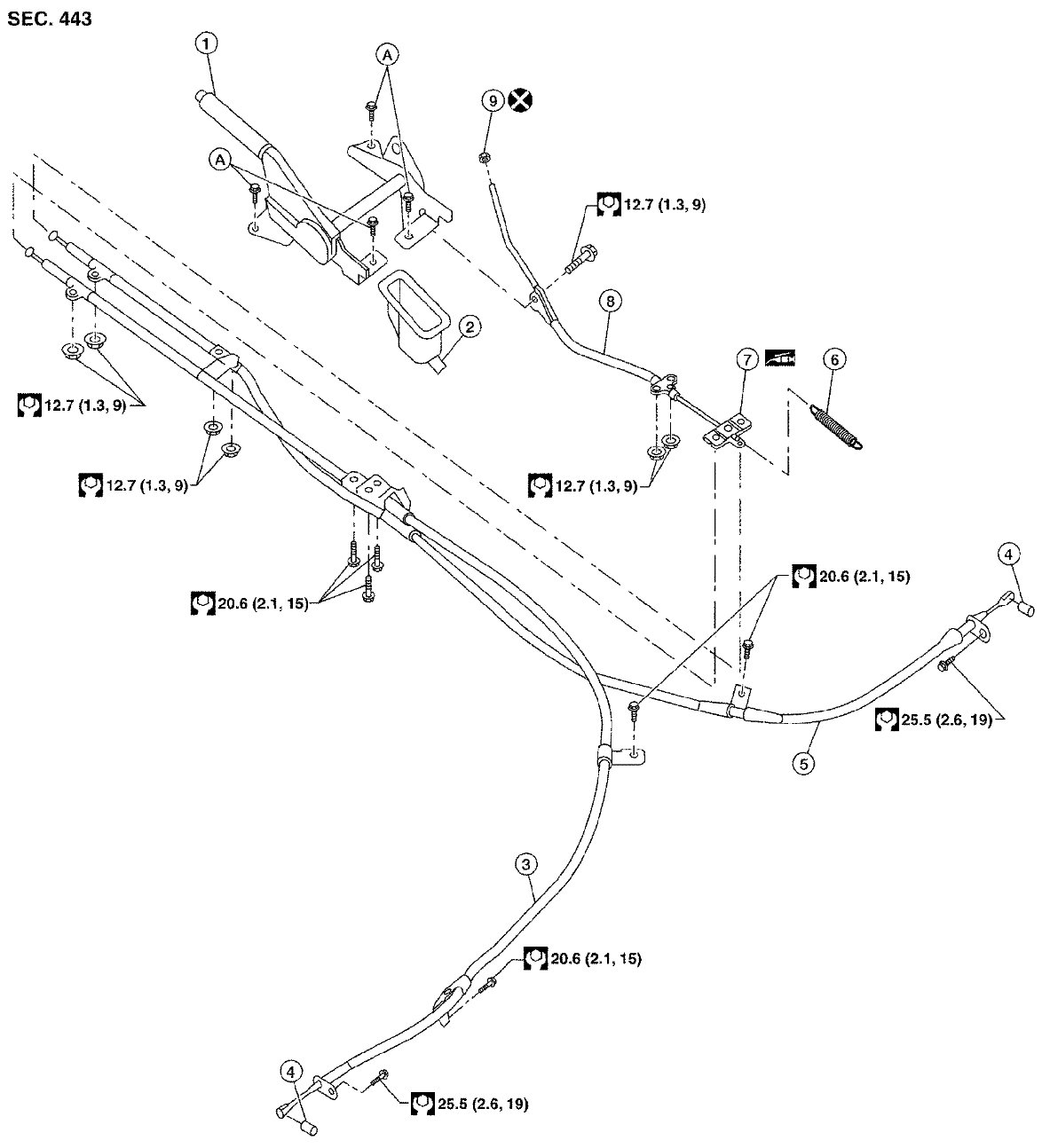

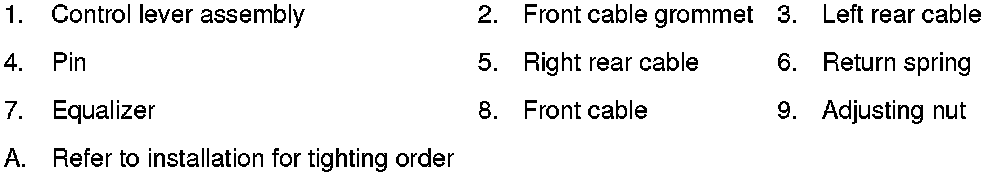

Parking Brake Control: Exploded View
