Suzuki Truck
>>
2011
>>
Equator 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

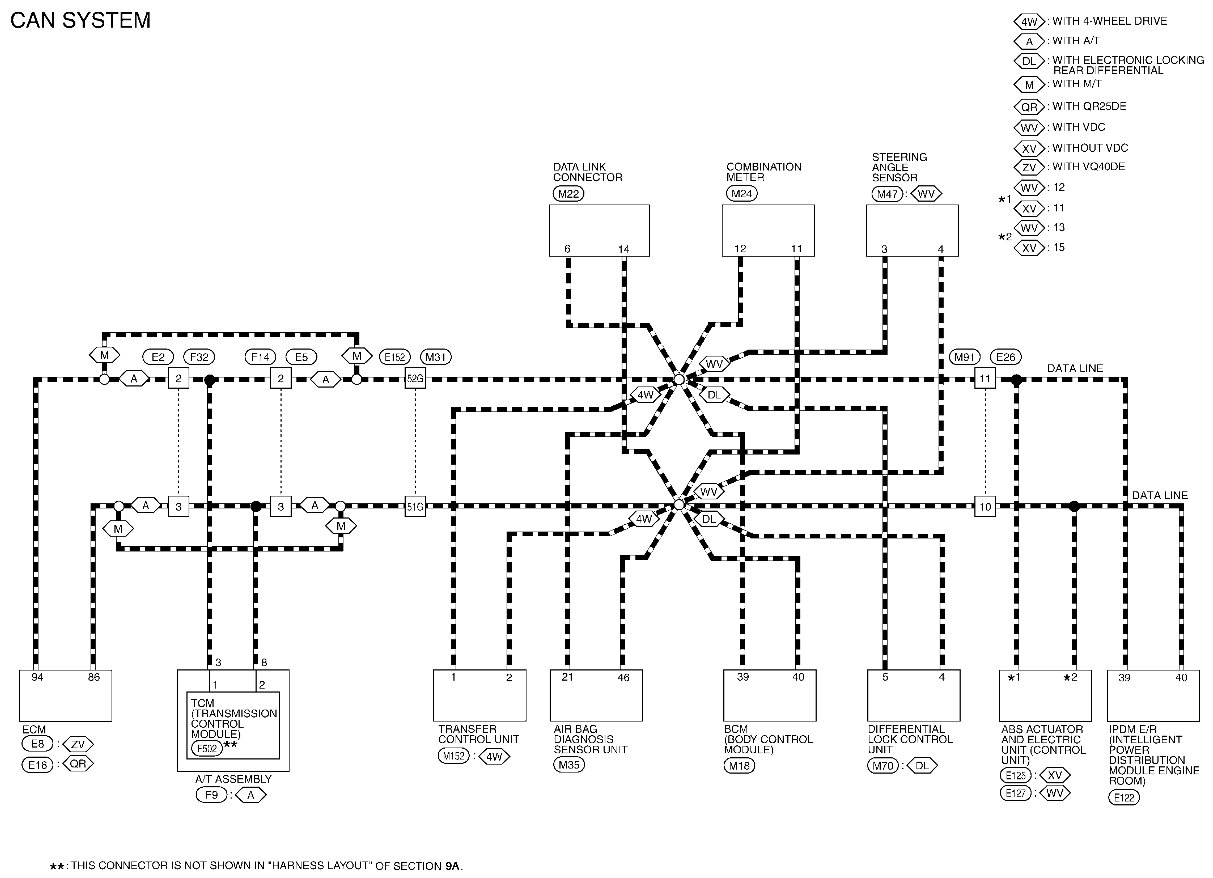

CAN System: Wiring Diagram
