Transmission Mount Bracket Replacement - Left Side

Transmission Mount Bracket Replacement - Left Side

Removal Procedure
1. Support the transaxle with a height adjustable transmission stand.
2. Remove the left engine splash shield.
3. Remove the left transaxle mount.
4. Lower the transaxle enough to access the mount bracket bolts.

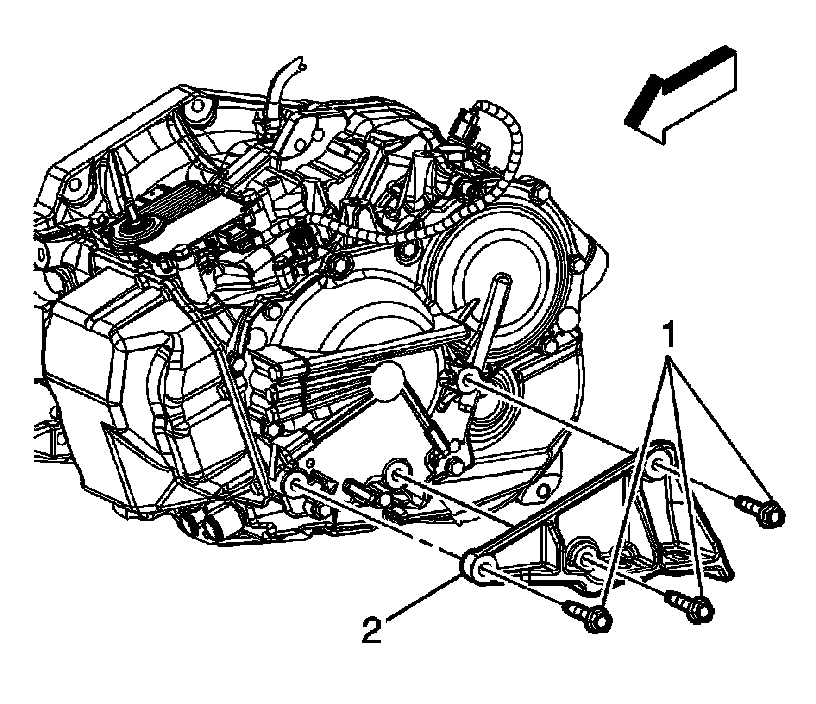

5. Remove the transaxle mount to frame bolts (1).
6. Remove the transaxle mount bracket (2).

Installation Procedure





1. Position the transaxle mount bracket (2) to the transaxle.

CAUTION:
Refer to [Fastener Notice]

2. Install the transmission mount bracket bolts (1).
Tightening torque
Tighten the nuts to 55 Nm (41 ft. lbs.).
3. Install the left transaxle mount.
4. Install the left engine splash shield.
5. Remove the transaxle stand.
6. Lower the vehicle.
